Remove/Install Rear-Axle Brake Caliper - AR42.10-P-0080GWX

Model 463.234 as of model year 2013 up to model year 2019 with code ZQ0 (G 500 4x42)

Model 463.255 as of model year 2013 up to model year 2019 with code MUK2 (USA or Canada vehicle model designation) with code ZQ0 (G 500 4x4 ²  )

Model 463.274 as of model year 2013 up to model year 2019 with code LQ0 (G650 Landaulet)

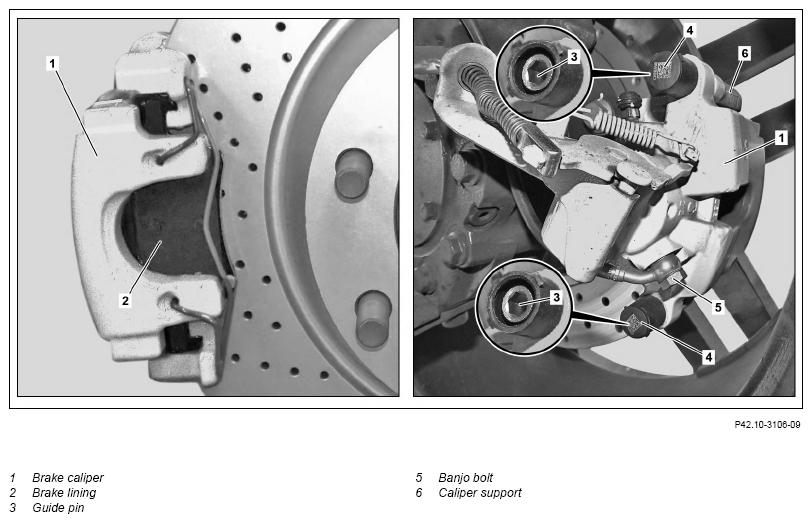

Fig 1: Rear-Axle Brake Caliper Components Location - Model 463.255, 2016 Up To Model Year 2019 With Code MUK2

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove/install
1	Release parking brake by parking brake lever
2	Remove brake pads (2)		AR42.10-P-1710GWX
3	Remove banjo bolt (5)	Replace seals. Brake hose to rear axle floating caliper	*BA42.10-P-1005-04B
4	Seal exposed connections with plugs	Seal exposed connections immediately with stop plugs. Otherwise, the system venting process will be hampered. Record plug	Fig 2
5	Unhook brake cable from brake caliper (1) and remove brake caliper (1)	Only when replacing the brake caliper (1).
	Check
6	Check guide pin (3) for ease of movement	If a problem arises ↓ Replace brake caliper (1)
7	Check brake caliper (1) and dust boots of brake piston for leak tightness and damage	If a problem arises ↓ Replace brake caliper (1)
	Clean
8	Clean contact surfaces of brake linings (2) on brake caliper (1), on brake piston and on brake caliper support (6)	Do not use sharp-edged or pointy tools. Otherwise, the brake caliper (1) will be damaged. Cleaner	*BR00.45-Z-1025-04A
9	Bleed brake system	Model 463.234 as of model year 2013 up to model year 2019 with code ZQ0 (G 500 4x42 )	AR42.10-P-0010GW
10	Install in the reverse order
11	Adjust parking brake		AR42.20-P-0550GWX
12	Operate brake pedal several times until the brake linings (2) make contact with the brake discs, and a firm resistance is noticeable.
	Check
13	Check brake system for leaks	Model 463.234 as of model year 2013 up to model year 2019 with code ZQ0 (G 500 4x42)	AR42.10-P-0015GW
14	Carry out brake test on the test stand

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
