Remove/Install Tilting/Sliding Roof Panel - AR77.20-P-1000GW
Model 463 (Except 463.202) Up To Model Year 2019

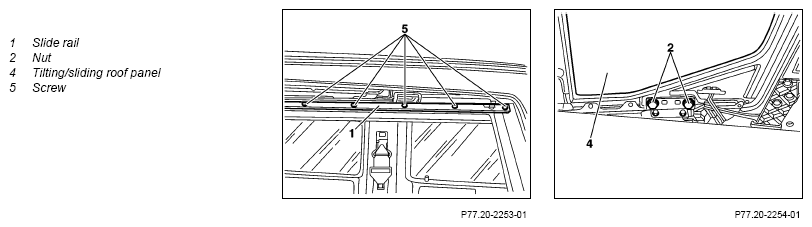

Fig 1: Tilting/Sliding Roof Panel Components Location - Model 463 (Except 463.202) Up To Model Year 2019
| Remove | |||
| 1 | Remove inside rearview mirror | Remove/install inside rearview mirror Model 463 (except 463.202) as of model year 2013 up to model year 2019 | AR68.40-P-0001GW |
| 2 | Remove trim from tilting/sliding roof | Model 463 (except 463.202) as of model year 2013 up to model year 2019 | AR77.20-P-0500GW |
| 3 | Fully open tilting/sliding roof | ||
| 4 | Remove slide rails (1) on left and right | ||
| 5 | Close tilting/sliding roof | ||
| 6 | Unscrew nuts (2) of tilting/sliding roof panel (4) on left and right | ||
| 7 | Lift out tilting/sliding roof panel (4) upward | ||
| 8 |

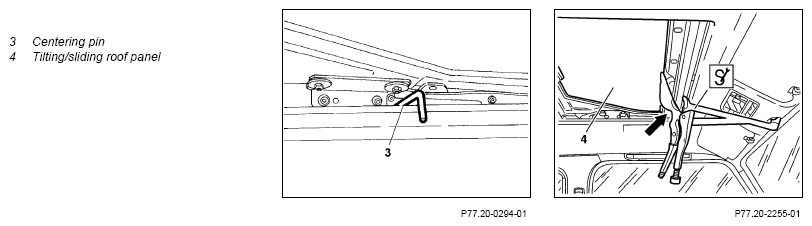

Insert centering pin (3) into centering bores on left and right | WF58.50-P-7720-01A | |
| Install | |||
| 9 | Coat slide shoes on left and right with lubricating paste | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | *BR00.45-Z-1004-06A |
| 10 | Insert tilting/sliding roof panel (4) from above | ||
| 11 | Screw on nuts (2) of tilting/sliding roof panel (4) on left and right | ||
| 12 | Pre-tension tilting/sliding roof panel (4) with assembly pliers | Fig 2 | |
| 13 | Tighten nuts (2) of tilting/sliding roof panel (4) on left and right, and remove assembly pliers | ||
| 14 | Fully open tilting/sliding roof | ||
| 15 | Coat slide rails (1) on left and right with lubricating paste, and install | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 |
*BR00.45-Z-1004-06A |
| 16 | Remove centering pin (3) on left and right | ||
| 17 | Adjust tilting/sliding roof panel (4) | Model 463 (except 463.202) as of model year 2013 up to model year 2019 | AR77.20-P-1100GW |
| 18 | Tighten screws (5) of slide rails (1) on left and right | ||
| 19 | Install trim on tilting/sliding roof | Model 463 (except 463.202) as of model year 2013 up to model year 2019 | AR77.20-P-0500GW |
| 20 | Install inside rearview mirror | Model 463 (except 463.202) as of model year 2013 up to model year 2019/facelift 2012 | AR68.40-P-0001GW |
| 21 | Perform function test |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | A 001 989 46 51 |
