Remove/Install Tilting/Sliding Roof Motor - AR77.20-P-3010GW
Model 463 (except 463.202) up to model year 2019 except code D27 (Electric tilting/sliding glass sunroof)/facelift 2012
| Remove/install | |||
| 1 | Remove trim from tilting/sliding roof | Model 463 (except 463.202) as of model year 2013 up to model year 2019 except code D27 (Electric tilting/sliding glass sunroof) | AR77.20-P-0500GW |
| 2 | Remove tilting/sliding roof cable | AR77.20-P-1400GW | |
| 3 | Remove left side wall trim | Model 463 (except 463.202) as of model year 2013 up to model year 2019 except code D27 (Electric tilting/sliding glass sunroof)/facelift 2012 | AR68.30-P-1450GW |
| 4 | Disconnect electrical connection (4) | ||
| 5 | Remove screw (10) | ||

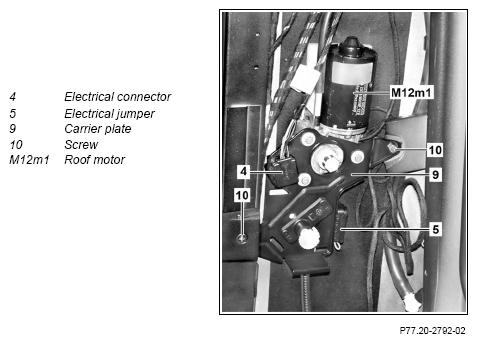

| 6 | Remove roof system motor (M12m1) with carrier plate (9) | ||

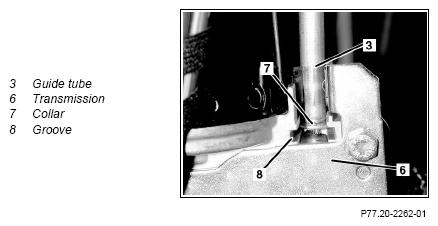

| 7 | Detach guide tube (3) from transmission (6) | ||
| 8 | Install in the reverse order | ||
| 9 | Perform basic programming | Perform basic programming | AR00.19-P-0200GW |
| 10 |
Read out and clear the fault memory using Star Diagnosis | AD00.00-P-2000-04A | |
| 11 | Perform function test |
