Remove/Install Rain Trough On Tilting/Sliding Roof - AR77.20-P-1999GW
Model 463 (Except 463.202) Up To Model Year 2019/Facelift 2012

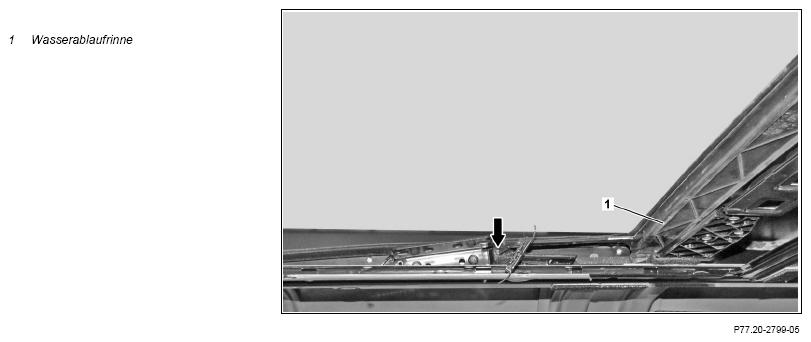

Fig 1: Rain Trough On Tilting/Sliding Roof Components Location - Model 463 (Except 463.202) Up To Model Year 2019/Facelift 2012
| Remove/install | |||
| 1 | Remove trim from tilting/sliding roof | Model 463 (except 463.202) as of model year 2013 up to model year 2019 | AR77.20-P-0500GW |
| 2 | Remove tilting/sliding roof panel | AR77.20-P-1000GW | |
| 3 | Unhook the water drainage channel (1) on the left and right from the lifting bracket (arrow) | ||
| 4 | Pull out the water drainage channels (1) and remove them | ||
| 5 | Install in the reverse order |
