Remove/Install Engine Hood - AR88.40-P-3000XG

Model 463

as of model year 2019

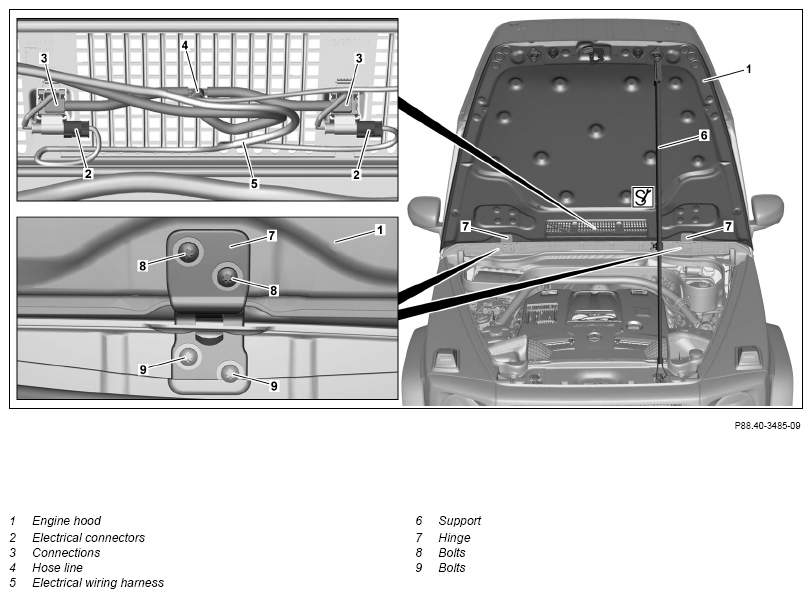

Fig 1: Engine Hood Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open hood (1), raise to vertical position, and secure.		AR88.40-P-1000XG
2	Remove electrical connectors (2) from spray nozzles together with connections (3) of hose line (4).		AR82.35-P-6970XG
3	Release hose line (4) and electrical wiring harness (5) from mounting clamps, expose, and remove from hood (1).
4	Remove support (6).	Helpers required to secure hood (1). Support	Fig 2
5	Remove screws (8) from upper parts of hinges (7) and remove hood (1).	Helpers required to secure and remove hood (1). Bolt, engine hood hinge to engine hood	*BA88.40-P-1001-01D
6	Set down hood (1) on a suitable base.	Aid of helpers is required.
7	Remove screws (9) from lower parts of hinges (7) and remove hinges (7).	Only when replacing the hinges (7). Screw/bolt, engine hood hinge to body	*BA88.40-P-1002-01D
8	Install in reverse order.
	Adjust
9	Adjust gap dimensions of hood (1) relative to front fenders, radiator grille, and windshield frame segment.		AR60.00-P-0900-01XG
		After adjustment, hood (1) must close with little resistance. Engine hood to fender	*BE60.00-P-1002-01XG
		Hood to radiator grille	*BE60.00-P-1001-01XG
		Hood to windshield frame segment	*BE60.00-P-1003-01XG

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1001-01XG	Hood to radiator grille	Dimension "L1"	mm	7 (±1)
		For picture, see		AR60.00-P-0900-01XG

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1002-01XG	Engine hood to fender	Dimension "M1"	mm	7 (±1, 5)
		For picture, see		AR60.00-P-0900-01XG

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 463 as of model year 2019
BE60.00-P-1003-01XG	Hood to windshield frame segment	Dimension "M2"	mm	4, 5 (±0, 5)
		For picture, see		AR60.00-P-0900-01XG

ENGINE HOOD

Number	Designation		Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA88.40-P-1001-01D	Bolt, engine hood hinge to engine hood	Nm	20	20

ENGINE HOOD

Number	Designation		Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA88.40-P-1002-01D	Screw/bolt, engine hood hinge to body	Nm		20

Fig 2: Identifying Support (170 589 04 63 00)

Courtesy of MERCEDES-BENZ USA
