Remove/Install Telephone Antenna - AR82.62-P-0011XG

Model 463

as of model year 2019

with code E79 (Telephone antenna)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

Fig 1: Telephone Antenna Components Location - Model 463 As Of Model Year 2019 With Code E79

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove left outside mirror (M21/1) or right outside mirror (M21/2).		AR88.70-P-9000XG
2	Remove trim from left outside mirror (M21/1) or right outside mirror (M21/2).		AR88.70-P-9040XG
3	Remove mirror glass from left outside mirror (M21/1) or right outside mirror (M21/2).		AR88.70-P-9020XG
4	Identify electrical connector of electrical line (4) of left telephone antenna (A2/102) or right telephone antenna (A2/103).

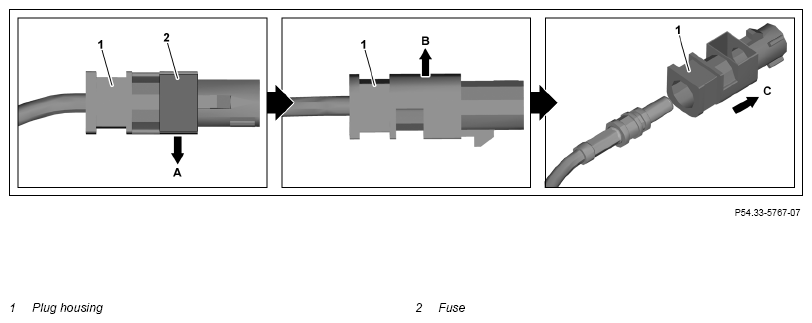

5	At electrical connector, unclip fuse (2) from plug housing (1) (arrow A).
6	Unlock plug housing (1) (arrow B) and pull off electrical line (4) (arrow C).

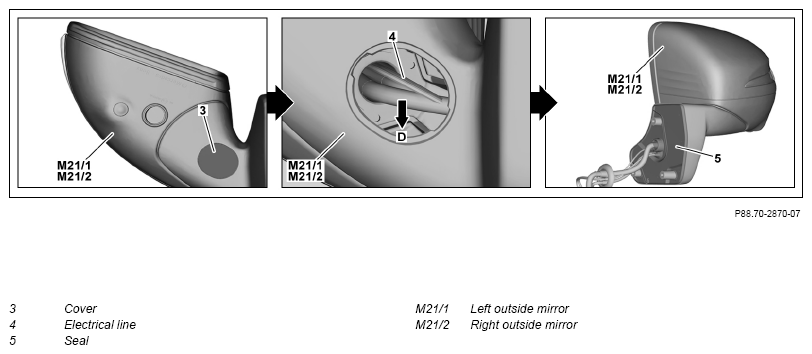

7	Remove cover (3) from left outside mirror (M21/1) or right outside mirror (M21/2).
8	Pull seal (5) approx. 15 cm over electrical wiring harness.
9	Pull electrical wiring harness approx. 15 cm out of left outside mirror (M21/1) or right outside mirror (M21/2) (arrow D).

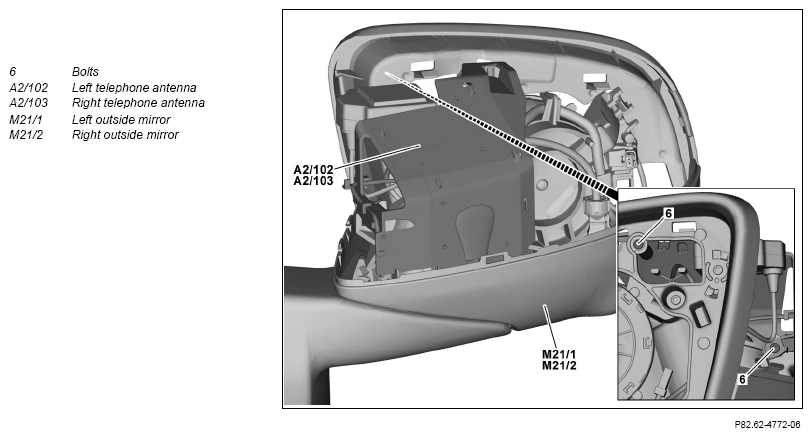

10	Unscrew screws (6).
11	Remove left telephone antenna (A2/102) or right telephone antenna (A2/103) while pulling out the electrical line (4) completely.	Make sure that the left (telephone antenna (A2/102) or the right telephone antenna (A2/103) is seated correctly. Make sure that the electrical line (4) and the electrical wiring harness are seated correctly.
12	Install in reverse order.
