Overview Of System Components Of Comfort Heating Systems - GF91.30-P-9990GW
Model 463
as of model year 2013

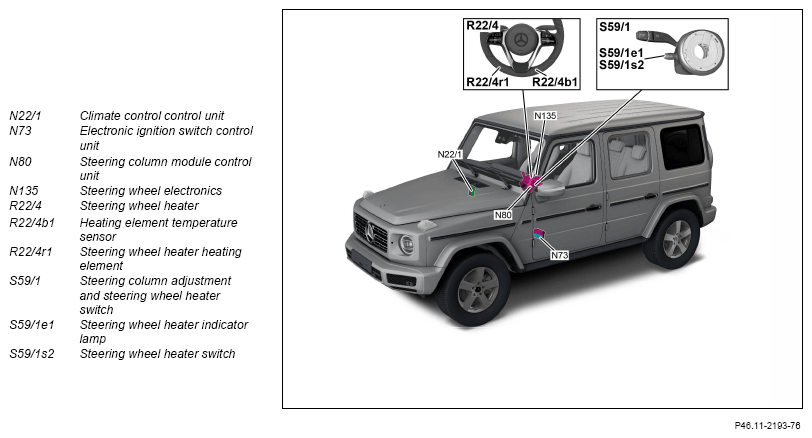

Steering wheel heater (LRH) (with code VL0 (Heated multifunction steering wheel)) as of 03.04.2018, except model 463.342, shown on model 463.23

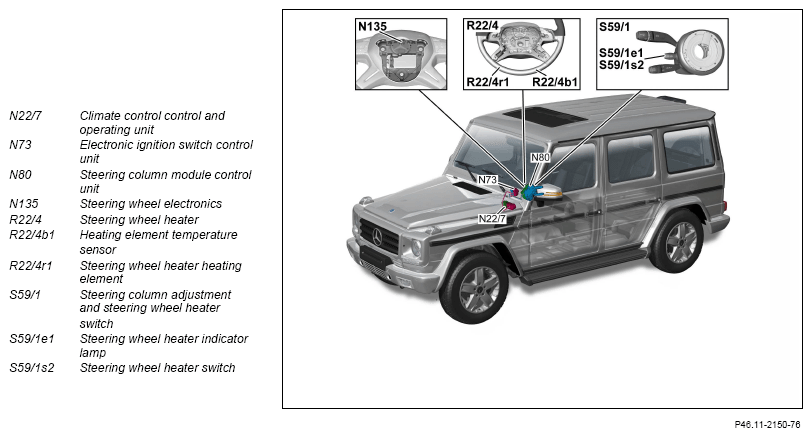

Steering wheel heater (LRH) (with code VL0 (Heated multifunction steering wheel)) up to 02.04.2018 or model 463.342, shown on model 463.23

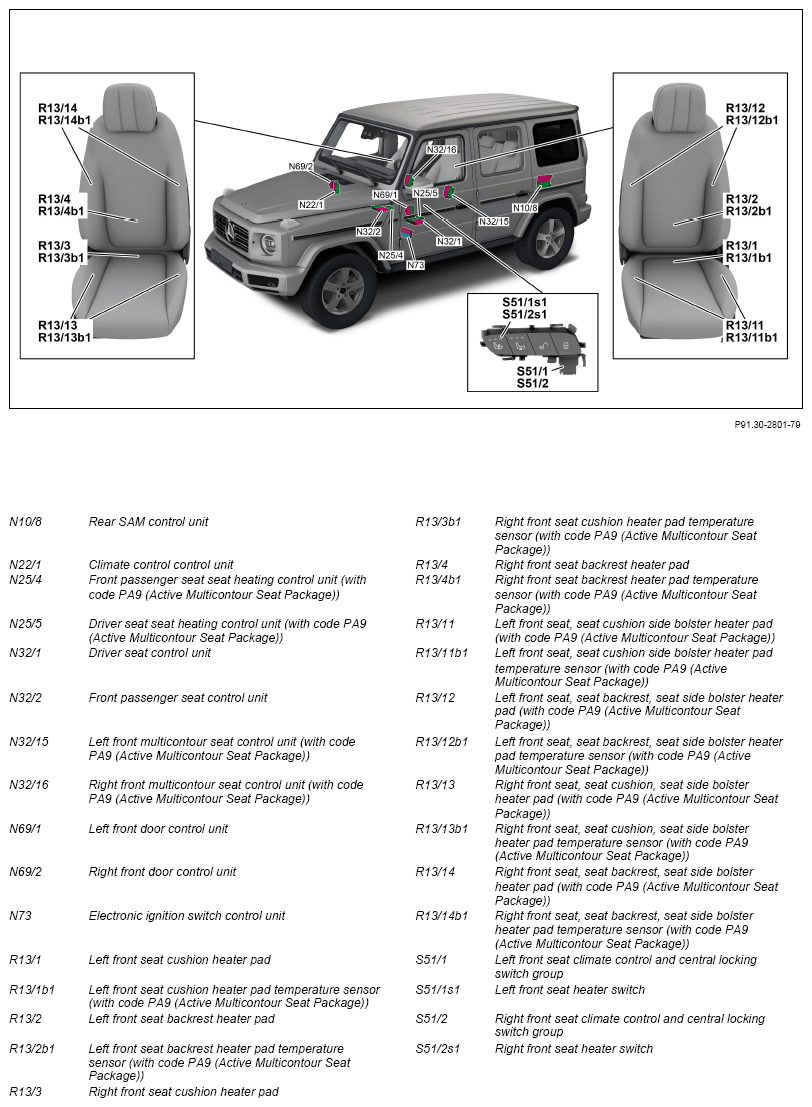

Front seat heating, as of 03.04.2018 except model 463.342, shown on model 463.23

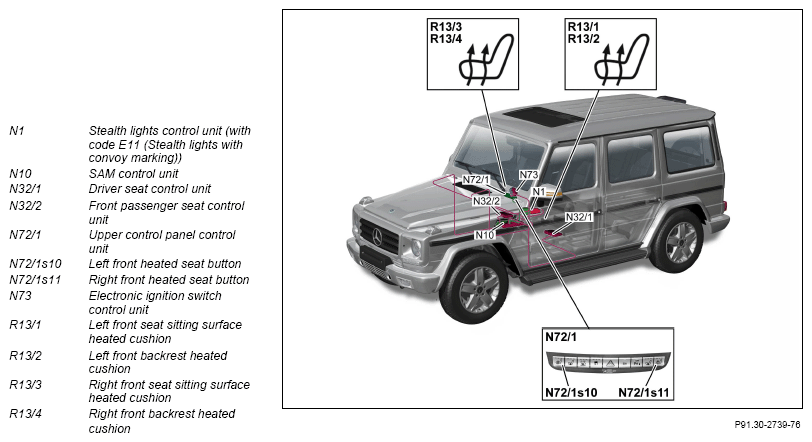

Front seat heating (model 463 (except model 463.342) up to 02.04.2018, model 463.342 with code H10 (Seat heating for driver and front passenger)), shown on model 463.23

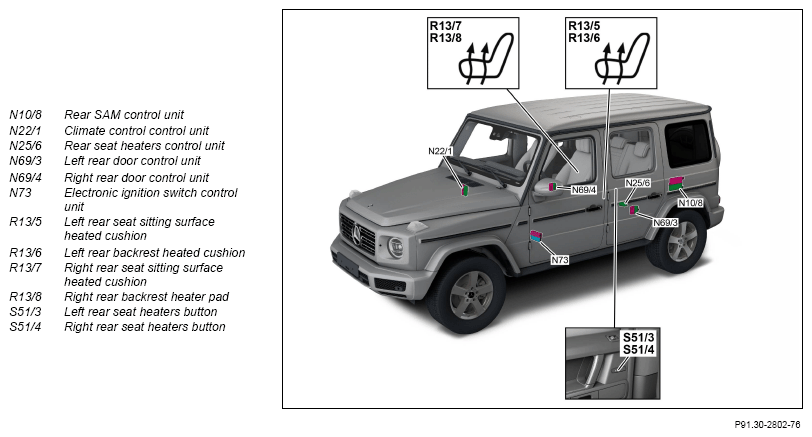

Seat heating (SIH) in rear passenger compartment as of 03.04.2018 (model 463.23/24/27, 463.34 (except model 463.342)), shown on model 463.23
Seat heating (SIH) in rear passenger compartment up to 02.04.2018 (model 463.23/24/27, 463.34 (except model 463.342)), shown on model 463.23

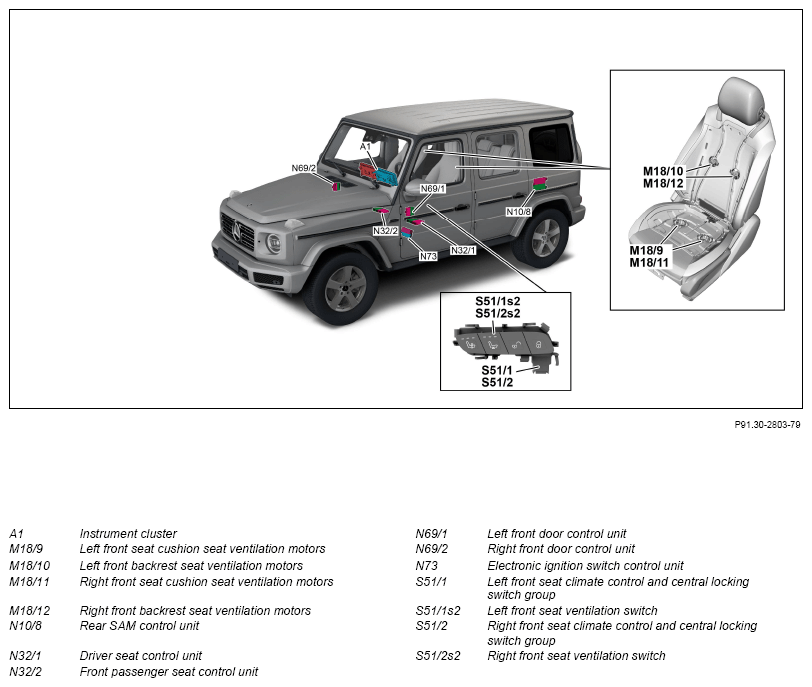

Electrical seat ventilation as of 03.04.2018, except model 463.342 (with code PA9 (Active Multicontour Seat Package)), shown on model 463.23

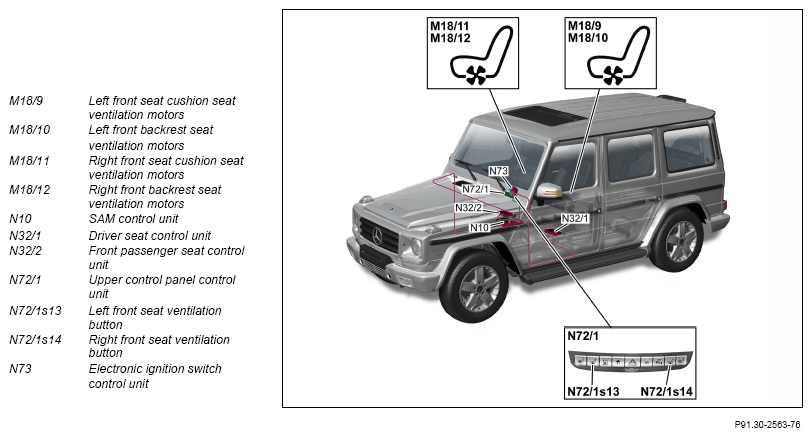

Electrical seat ventilation up to 02.04.2018 or model 463.342 (with code PA1 (Seat Comfort Package)), shown on model 463.23
| Component description for instrument cluster | GF54.30-P-6000GW | ||
| Stealth lights control unit, component description | Model 463.342 as of model year 2017 with code E11 (Blackout lighting with convoy light) N1 | GF82.10-P-2021GW | |
| SAM control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N10 | GF54.21-P-4157GW | |
| Rear control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N10/8 | GF54.21-P-4134GW | |
| Component description for rear SAM control unit | Model 463 (except 463.342) as of model year 2019 N10/8 | GF54.21-P-7030GWM | |
| Climate control control unit, component description | Model 463 (except 463.342) as of model year 2019 N22/1 | GF83.40-P-2250GWM | |
| Component description for climate control control and operating unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N22/7 |
GF83.40-P-3002GW | |
| Seat heater control unit, component description | Model 463 (except 463.342) as of model year 2019 N25/4, N25/5, N25/6 | GF91.30-P-5214GWM | |
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231GW | |
| Component description for front passenger seat control unit | N32/2 | GF91.29-P-5241GW | |
| Multicontour seat control unit (MCS), component description | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) N32/15, N32/16 | GF91.25-P-5201GWM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.23/24/27, 463.34 (except 463.342) as of model year 2013 N69/3, N69/4 | GF72.29-P-6021GW | |
| Upper control panel control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N72/1 |
GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2017 N73 | GF80.57-P-6001GW | |
| Model 463 (except 463.342) as of model year 2019 N73 | GF80.57-P-6001GWM | ||
| Component description for steering column tube module control unit | Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342 as of model year 2013 Man | GF54.21-P-6051GW | |
| Model 463 (except 463.342) as of model year 2019 N80 | GF54.21-P-6051GWM | ||
| Steering wheel electronics control unit, component description | Model 463 (except 463.342) as of model year 2019 N135 | GF82.90-P-4006GWM | |
| Table of contents for function description of comfort heating systems | GF91.30-P-0999GW |
