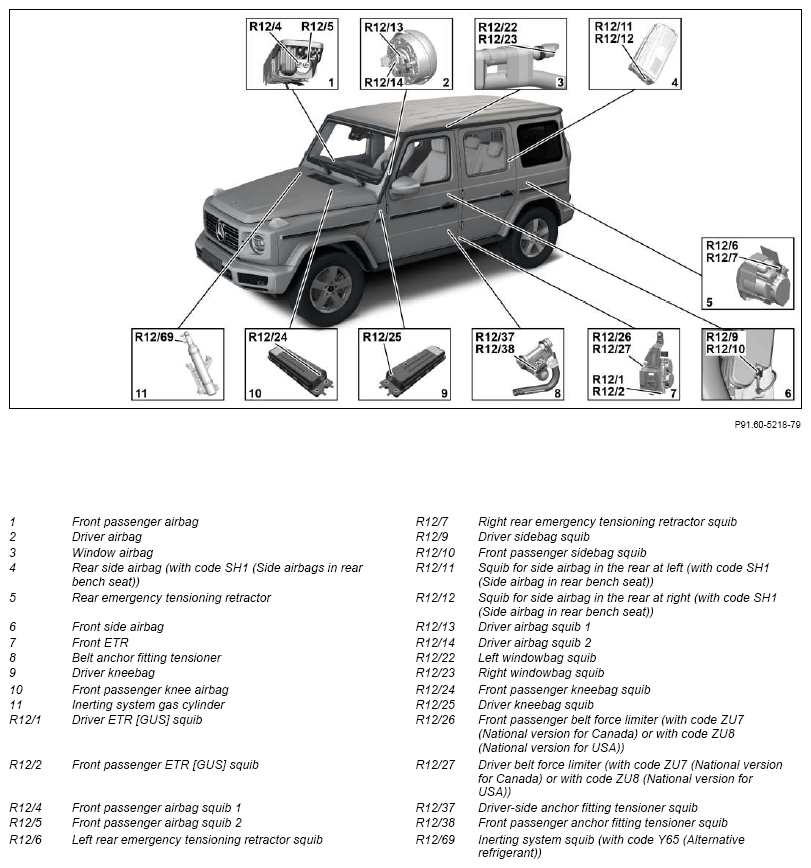

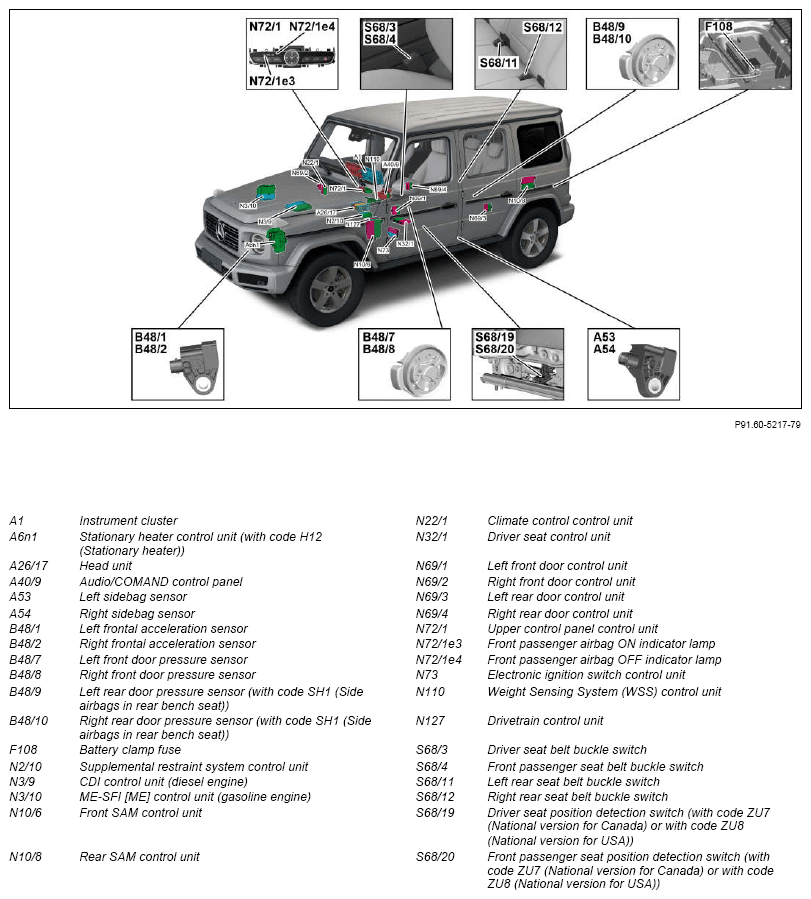

Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996GWM
Model 463 (except 463.342)
as of model year 2019
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Stationary heater control unit, component description | Model 463 (except 463.342) as of model year 2019 with code H12 (Auxiliary heater) A6n1 | GF83.70-P-4066GWM | |
| Head unit, component description | A26/17 | GF82.85-P-3140GW | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GWM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GWM | |
| Component description for CDI control unit | Model 463 with engine 656.9 as of model year 2019 N3/9 | GF07.16-P-6000OIB | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 176.9, 177.9 as of model year 2019 N3/10 | GF07.61-P-6000MNH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010GWM | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030GWM | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250GWM | |
| Component description for driver seat control unit | N32/1 | GF91.29-P-5231GW | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GW | |
| Component description for rear door control unit | Model 463.26/27, 463.34 (except 463.342) as of model year 2019 N69/3, N69/4 | GF72.29-P-6021GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GWM | |
| Component description for Weight Sensing System (WSS) control unit | N110 | GF91.60-P-4069GWM | |
| Drivetrain control unit, component description | Model 463 with engine 176.9, 177.9 as of model year 2019 NT7 | GF54.21-P-2141MNH | |
| Model 463 with engine 656.9 as of model year 2019 N127 | GF54.21-P-2141OIB | ||
| Table of contents for function description of supplemental restraint system function | GF91.60-P-0996GWM |
