Component Description For Weight Sensing System (WSS) Control Unit - GF91.60-P-4069GWM
Model 463 (except 463.342)
as of model year 2019

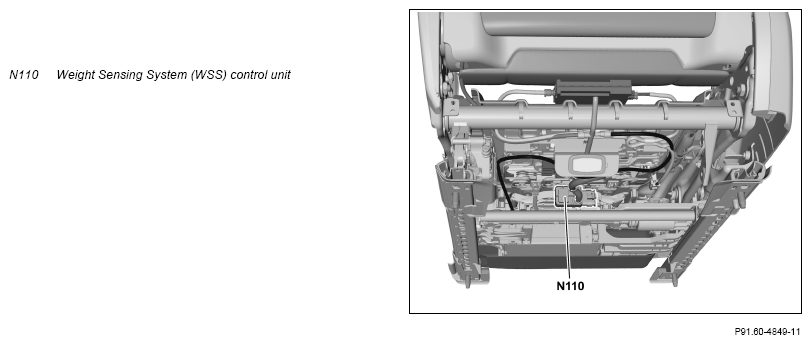

Fig 1: Weight Sensing System (WSS) Control Unit Components Location - Model 463 (Except 463.342) As Of Model Year 2019
Location
The WSS control unit is installed at the bottom at the seat frame of the front passenger seat.
Task
The WSS control unit determines the weight applied to the front passenger seat by means of a pressure measurement in a seat mat filled with silicone. The WSS control unit sends information on the weight classification over the seat occupancy LIN (LIN E2) to the supplemental restraint system control unit (N2/10).
| Wiring diagram for supplemental restraint system control unit | PE91.60-P-2106-97ZHA |
