(Remove/Install Engine Hood Catch - AR88.40-P-3200GW)

Model 463

as of model year 2013 up to model year 2016/facelift 2012

Courtesy of MERCEDES-BENZ USA

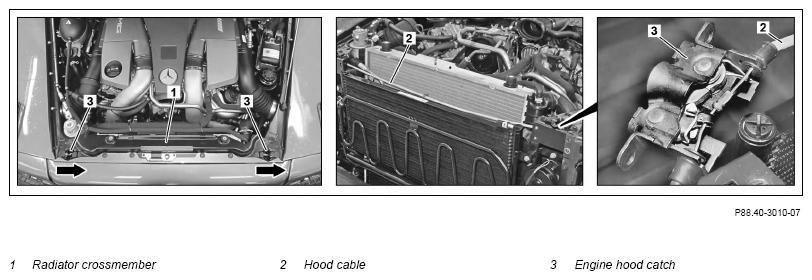

	Remove/install
1	Remove front grille		AR88.00-P-2115GW
2	Remove upper radiator crossmember		AR62.30-P-2300GW
3	Remove the screws of the hood catch (3) on the body	If necessary reinstall washers installed. Bolt on engine hood catch	*BA88.40-P-1004-01D
4	Unhook hood cable (2)
5	Remove hood catch (3)	Note direction of installation. The arrow on the hood catch (3) must point in the direction of the arrow. First insert the hood catch (3) and then hook the hood cable (2).
6	Install in the reverse order
