Remove/Install Front Grille - AR88.00-P-2115GW

Model 463

as of model year 2013 up to model year 2019

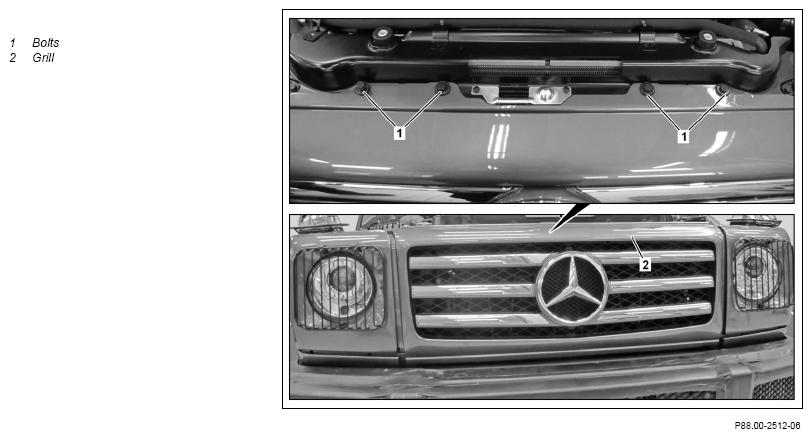

Fig 1: Front Grille Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Remove headlamp trim	Remove/install headlamp cover	AR88.00-P-2100GW
	Remove bolt (1)
	Tilt radiator grille (2) forward	Push radiator grille (2) to one side, lift forward out of the retaining lug, and then unhook from the opposite side.
		Ensure that the side retaining lugs on both sides sit in the guides of the headlamp surrounds.
	Pull out hose at the radiator grille (2)
	Lift out radiator grille (2)
	Install in the reverse order
