Remove/Install Air Suspension Compressor Holder - AR32.22-P-2009LWO

Model 238

With Code 489 (AIR BODY CONTROL)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install

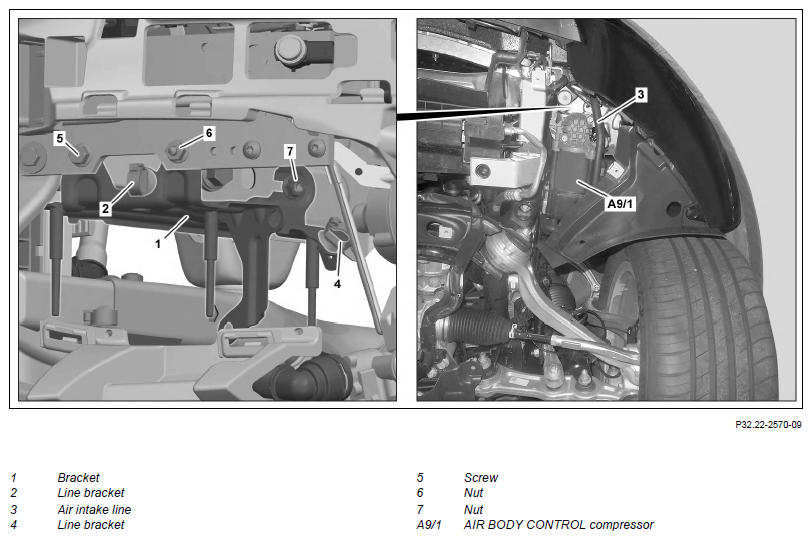

1	Remove AIR BODY CONTROL compressor (A9/1)		AR32.22-P-2001LWO
2	Open line bracket (2) and unhook air intake duct (3)
3	Open line bracket (4) and unhook lines
4	Detach AIR BODY CONTROL valve unit from bracket (1) and place to one side with lines still connected		AR32.22-P-2015LWO
5	Remove screw (5)	Bolt/nut, bracket for compressor unit to body/cross member	*BA32.22-P-1002-03H
6	Unscrew nut(6)	Bolt/nut, bracket for compressor unit to body/cross member	*BA32.22-P-1002-03H
7	Loosen nut (7)	Bolt/nut, bracket for compressor unit to body/cross member	*BA32.22-P-1002-03H
8	Slide bracket (1) backward and remove

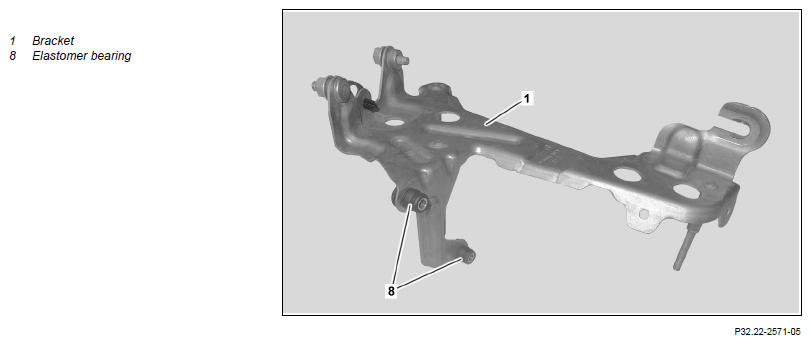

9	Remove elastomer bearing (8) and line brackets (2, 4)	When replacing bracket (1).
	Check
10	Check elastomer bearings (8) for wear and damage	If there are problems ↓ Replace elastomer bearings (8).
11	Install in the reverse order

AIR SUSPENSION

Number	Designation		Model 238
BA32.22-P-1002-03H	Bolt/nut, bracket for compressor unit to body/cross member	Nm	20
