Remove/Install Seat Ventilation Motors On Front Seat Cushion - AR91.30-P-1952LWE

Model 213

With Code 401 (Climatised front seats)

except code 555 (AMG-Performance Seat)

Model 238

With Code 401 (Climatised front seats)

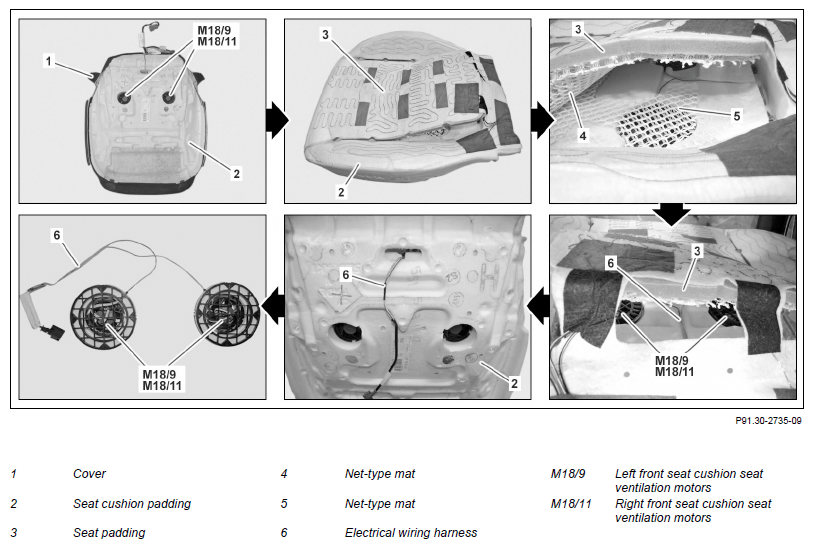

Fig 1: Seat Ventilation Motors On Front Seat Cushion Components Location - Model 238 With Code 401

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1) of seat cushion padding (2)	Model 238 with code 401 (Climatised front seats) except code 241 (Memory switch for electrically adjustable front passenger seat, left) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Memory Package (driver's seat, steering column and mirror)) except code P65 (Seat comfort package)	AR91.18-P-1801LWA
		Model 238 with code 241 (Memory switch for electrically adjustable front passenger seat, left) with code 401 (Climatised front seats) Model 238 with code 242 (Front passenger seat, electrically adjustable with memory function) with code 401 (Climatised front seats) Model 238 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 401 (Climatised front seats) Model 238 with code 401 (Climatised front seats) with code P65 (Seat comfort package)	AR91.18-P-1801LW
		Model 213 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 401 (Climatised front seats) except code 555 (AMG-Performance Seat)	AR91.18-P-1801LWE
		Model 213 with code 401 (Climatised front seats) except code 275 (Memory Package (driver's seat, steering column and mirror)) except code 555 (AMG-Performance Seat)	AR91.18-P-1801LWF
2	Remove seat padding (3) with net-type mat (4) in area of left front seat cushion seat ventilation motors (M18/9) or right front seat cushion seat ventilation motors (M18/11) from seat cushion padding (2) as shown.
3	Fold net-type mat (5) to one side.
4	Carefully release left front seat cushion seat ventilation motors (M18/9) or right front seat cushion seat ventilation motors (M18/11) from the seat cushion padding (2).
5	Guide electrical wiring harness (6) through seat cushion padding (2).
6	Remove left front seat cushion seat ventilation motors (M18/9) or right front seat cushion seat ventilation motors (M18/11).	Pay attention to routing of wiring harness (6).
7	Install in the reverse order
