Remove/Install Cover On Front Seat Cushion - AR91.18-P-1801LW

Model 238

With Code 241 (Memory switch for electrically adjustable front passenger seat, left)

Model 238

With Code 242 (Front passenger seat, electrically adjustable with memory function)

Model 238

With Code 275 (Memory Package (driver's seat, steering column and mirror))

Model 238

With Code P65 (Ergonomics package)

Model 205, 253, 293

With Code 221 (Electrically adjustable left driver seat)

Model 205, 253, 293

With Code 222 (Electrically adjustable right driver seat)

Model 205, 253, 293

With Code 241 (Memory switch for electrically adjustable front passenger seat, left)

Model 205, 253, 293

With Code 242 (Front passenger seat, electrically adjustable with memory function)

Model 205, 253, 293

With Code 275 (Driver's seat, electrically adjustable with memory function)

Model 205, 253, 293

With Code P65 (Ergonomics package)

Model 205, 253

With Code 555 (AMG-Performance Seat)

Shown on model 205.0 With Code 873 (Seat heater for driver and front passenger)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0 With Code 873 (Seat heater for driver and front passenger)

	Remove
1	Remove seat cushion padding (2).		AR91.10-P-5040LW
2	Unhook cover (11) at side (arrows C).

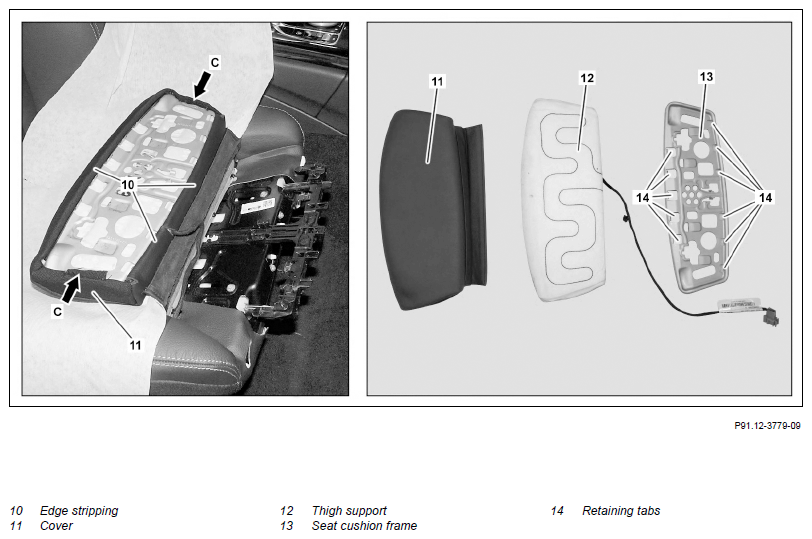

3	Push retaining tabs (14) to one side and unhook the piping (10).	Dismantling tool	Fig 1
4	Remove seat cushion frame (13) from thigh rest (12) and cover (11).
5	Remove thigh rest (12) from cover (11).
6	Release cover (1) on underside of the seat cushion padding (2).	If the cover (1) is also attached to the underside of the seat cushion padding (2).
		Dismantling tool	Fig 1
7	Slip cover (1) over the seat cushion padding (2).

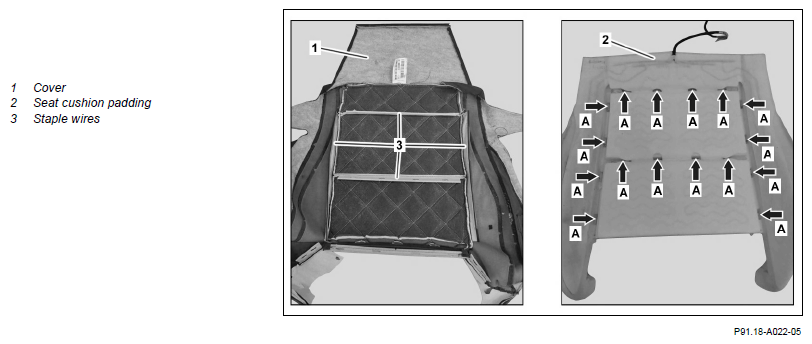

8	Release staple wires (3) at attachment points (arrows A).		AR91.18-P-1802-01LW
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 2
9	Remove cover (1) from seat cushion padding (2).
	Install
10	Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2).
11	Fasten staple wires (3) at attachment points (arrows A).		AR91.18-P-1802-01LW
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 2
12	Pull cover (1) over seat cushion padding (2).
13	Fasten cover (1) on underside of the seat cushion padding (2).	If the cover (1) is also attached to the underside of the seat cushion padding (2).
14	Insert thigh rest (12) into cover (11) and smooth out creases in cover (11).
15	Insert the seat cushion frame (13) into the cover (11) and align centrally on cover (11), as well as the contour of the thigh rest (12) using marking.
16	Hook in piping (10) and fix in place with retaining tabs (14).	Dismantling tool	Fig 1
17	Hook-in cover (11) at side (arrows C).
18	Install seat cushion padding (2).		AR91.10-P-5040LW
