Remove/Install Cover On Front Seat Cushion - AR91.18-P-1801LWA

Model 238

except code 241 (Memory switch for electrically adjustable front passenger seat, left)

except code 242 (Front passenger seat, electrically adjustable with memory function)

except code 275 (Memory Package (driver's seat, steering column and mirror))

except code P65 (Ergonomics package)

Model 205, 253

except code 221 (Electrically adjustable left driver seat)

except code 222 (Electrically adjustable right driver seat)

except code 241 (Memory switch for electrically adjustable front passenger seat, left)

except code 242 (Front passenger seat, electrically adjustable with memory function)

except code 275 (Driver's seat, electrically adjustable with memory function)

except code 555 (AMG-Performance Seat)

except code P65 (Ergonomics package)

Model 293

except code 221 (Electrically adjustable left driver seat)

except code 222 (Electrically adjustable right driver seat)

except code 241 (Memory switch for electrically adjustable front passenger seat, left)

except code 242 (Front passenger seat, electrically adjustable with memory function)

except code 275 (Driver's seat, electrically adjustable with memory function)

except code P65 (Ergonomics package)

Courtesy of MERCEDES-BENZ USA

	Remove

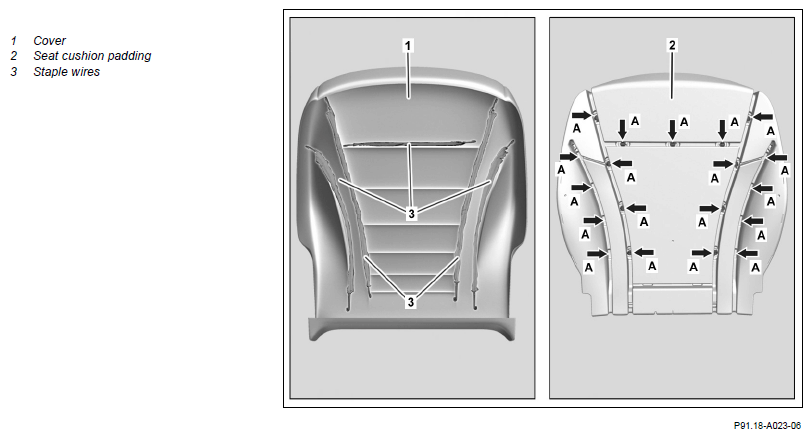

1	Remove seat cushion padding (2).		AR91.10-P-5040LWA
2	Pull cover (1) over seat cushion padding (2).
3	Release staple wires at attachment points (arrows A).		AR91.18-P-1802-01LW
		Padding clip pliers	Fig 2
		Dismantling tool	Fig 1
4	Remove cover (1) from seat cushion padding (2).
	Install
5	Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2).
6	Fasten staple wires (3) at attachment points (arrows A).		AR91.18-P-1802-01LW
		Padding clip pliers	Fig 2
		Dismantling tool	Fig 1
7	Pull cover (1) over seat cushion padding (2).
8	Install seat cushion padding (2).		AR91.10-P-5040LWA
