Remove/Install Low Temperature Circuit Circulation Pump - AR09.41-P-6926MND
Engine 276.8 In Model 213, 238
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Drain coolant from Low Temperature circuit | AR09.41-P-6834MND | |
| 2 | Remove right lower Engine compartment paneling | AR61.20-P-1105LWE | |

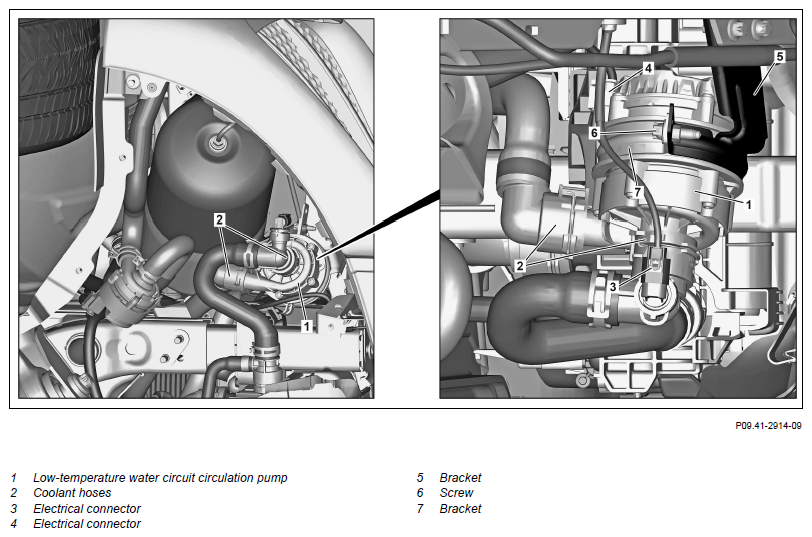

| 3 | Release and disconnect electrical line (3, 4) at Low Temperature water circuit circulation pump (1) | ||
| 4 | Detach coolant hoses (2) | AR20.20-P-7441-01RQ | |
| 5 | Remove screw/bolt (6) from bracket (5) | ||
| 6 | Open the holder (7) and remove Low Temperature water circuit circulation pump (1) with elastomer bearing out of the holder (5) downwards | ||
| 7 | Install in the reverse order |
