Drain/Fill Low Temperature Circuit Coolant - AR09.41-P-6834MND
Engine 276.8 In Model 213
Engine 276.8 In Model 238
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove | |||
| 1 | Slowly open cap of Low Temperature circuit coolant expansion reservoir and remove | AR09.41-P-0001MND | |
| 2 | Remove lower center and rear Engine compartment paneling | AR61.20-P-1105LWE | |
| Drain off | |||

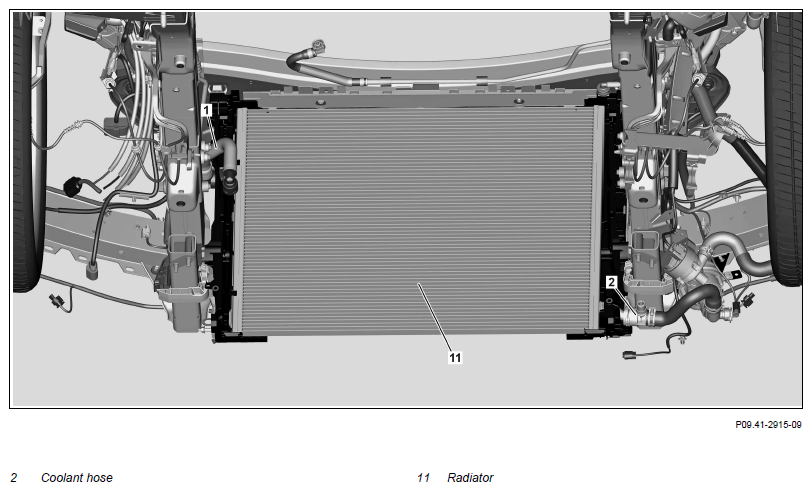

| 3 | Detach coolant hose (2) on the Low Temperature circuit cooler (11) and drain off coolant | AR20.20-P-7441-01RQ | |
| 4 | Mount coolant hose (2) on Low Temperature circuit cooler (11) | AR20.20-P-7441-01RQ | |
| Pour in | |||
| 5 | Add coolant and bleed Low Temperature circuit | AR20.00-P-1142-04A | |
| *BF20.00-P-1001-02BA | |||
| Fig 2 | |||
| Fig 4 | |||
| Fig 1 | |||
| Fig 3 | |||
| Check | |||
| 6 | Check Low Temperature circuit for leaktightness | AR09.41-P-1011MND | |
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an Engine test run and check Low Temperature circuit cooling system for proper function | ||
| Install | |||
| 8 | Remove lower center and rear Engine compartment paneling | AR61.20-P-1105LWE |
COOLING SYSTEM
| Number | Designation | Engine 276 in model 213 | Engine 276 in model 238 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02BA | Cooling system | Workshop replacement amount | Main circuit | L | ≈12, 0 | ≈12, 0 |
| Low Temperature circuit | L | ≈3, 5 | ≈2, 8 | |||
| Antifreeze/water | Up to -37°C | % | 50/50 | 50/50 | ||
| As of -38 °C | % | 55/45 | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Fluids specifications | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
