Remove/Install Rear SAM Control Unit - AR54.21-P-1269LWP
Model 238.4
Shown With Code B01 (48V technology)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of rear SAM control unit (N10/8) | When replacing the rear SAM control unit (N10/8). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trunk recess cover | AR68.30-P-4600LWO | |
| 4 | Remove on-board electrical system battery | Model 238.4 with code B01 (48V technology) If holder (5) is installed. |
AR54.10-P-0009LWK |

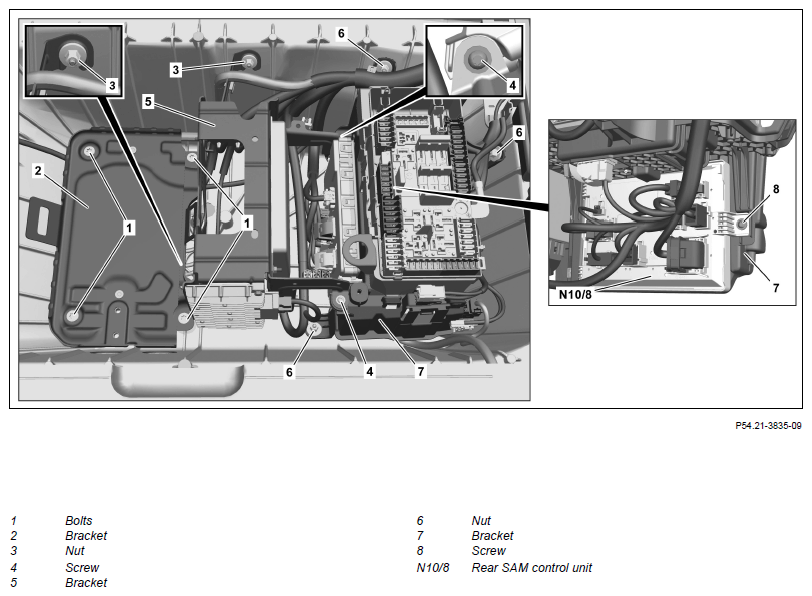

| 5 | Unscrew bolts (1) and remove holder (2) | Model 238.4 with code B01 (48V technology) If holder (5) is installed. |
|
| 6 | Unscrew nuts (3), unscrew bolts (4) lift up holder (5) together with the mounted control units and place to one side | If holder (5) is installed. | |
| 7 | Unscrew nuts (6) | ||
| 8 | Lift up bracket (7) together with mounted control units far enough to gain access to the rear SAM control unit (N10/8) | ||
| 9 | Detach all electrical connections from rear SAM control unit (N10/8) | ||
| 10 | Unscrew bolt (8) | ||
| 11 | Move rear SAM control unit (N10/8) out of bracket (7) and take off | ||
| 12 | Install in the reverse order |
