Remove/Install On-Board Electrical System Battery - AR54.10-P-0009LWK
Model 238
With Code B01 (48V technology)
MODIFICATION NOTES
| 06.04.2021 | Sequence of operation steps revised. | Operation step 1 |

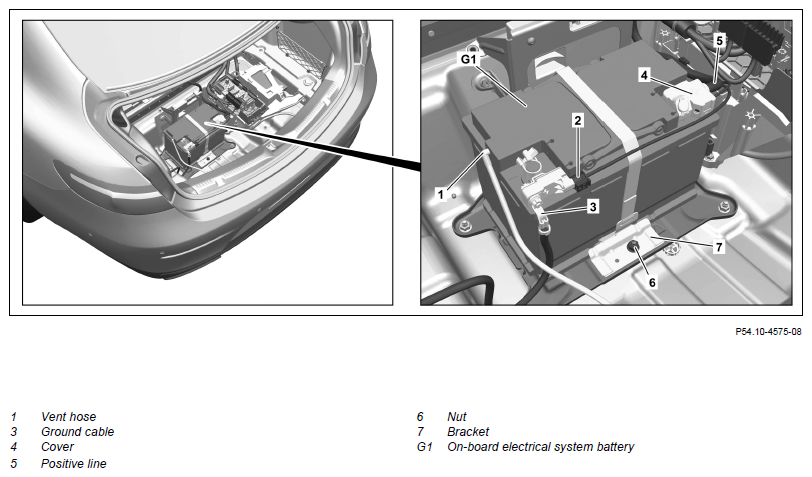

Fig 1: On-Board Electrical System Battery Components Location - Model 238 With Code B01 (Shown On Model 238.3)
Shown On Model 238.3
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30V AC and U >= 60V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Confirm change of on-board electrical system battery (G1) using diagnosis system in signal acquisition and actuation module under Actuation menu item. | When replacing the on-board electrical system battery (G1). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Disconnect ground line (3) of on-board electrical system battery (G1). | AR54.10-P-0003LWO | |
| 3 | Disconnect vent hose (1) from on-board electrical system battery (G1). | Check that vent hose (1) is correctly seated. Otherwise leaking battery vapor may damage the vehicle. |
|
| 4 | Remove cover (4). | ||
| 5 | Disconnect positive line (5) of on-board electrical system battery (G1). | *BA54.10-P-1004-01A | |
| 6.1 | Remove nut (6) and place holder (7) to one side with tensioning strap. | Model 238.3 with code B01 (48V technology) |
*BA54.10-P-1008-01A |
| 6.2 | Unscrew screw from holder (7) and remove holder (7). | Model 238.4 with code B01 (48V technology) |
*BA54.10-P-1008-01A |
| 7 | Remove on-board electrical system battery (G1). | ||
| 8 | Install in the reverse order. |
BATTERY
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA54.10-P-1004-01A | Nut, electrical line to negative terminal/positive terminal of on-board electrical system battery | Nm | 6 |
BATTERY
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA54.10-P-1008-01A | Screw/bolt/nut, battery bracket/retaining bracket to battery frame | Nm | 23 |
