Remove Paneling In Trunk - AR68.30-P-4600LWO

Model 238

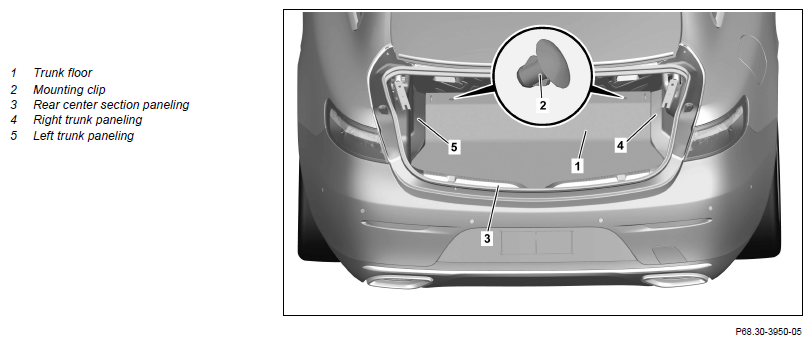

Shown on model 238.3

Courtesy of MERCEDES-BENZ USA

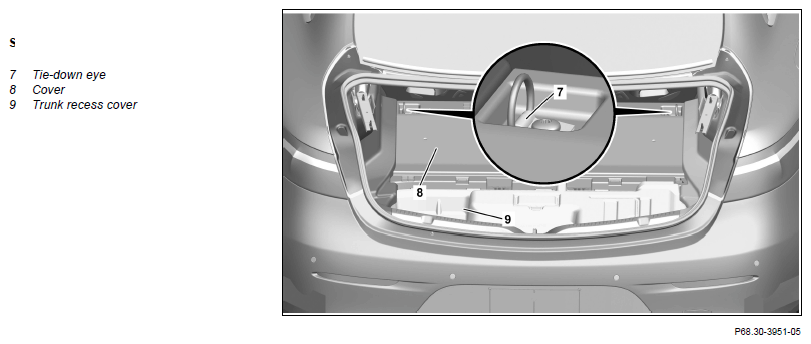

Shown on model 238.3

Courtesy of MERCEDES-BENZ USA

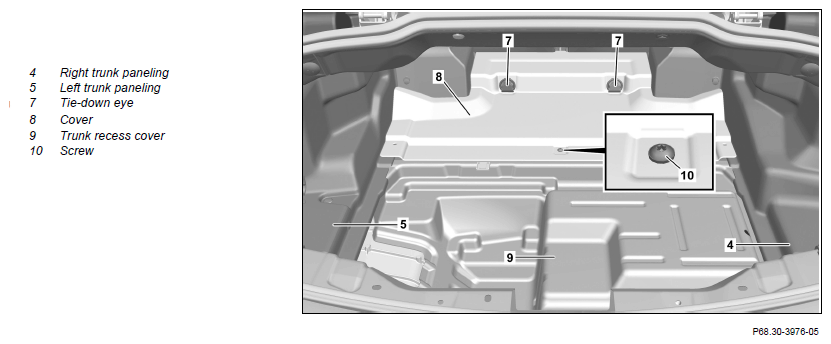

Shown on model 238.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove retaining clips (2) and trunk floor (1).	Dismantling tool	Fig 1
2	Remove rear-end center section trim (3).		AR68.30-P-4785LW
3	Remove tie-down eyes (7).	Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
		Clip remover	Fig 3
4.1	Pull luggage compartment well cover (9) out of cover (8).	Model 238.3 Long wedge	Fig 2
4.2	Remove screw (10) from cover (8).	Model 238.4
5	Remove cover (8) toward rear.
6	Remove right trunk lining (4) and left trunk lining (5).	Model 238.3	AR68.30-P-4800LWO
		Model 238.4	AR68.30-P-4800LWR
7	Remove luggage compartment well cover (9).
8	Install in the reverse order

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
