Remove/Install Parking System Control Unit - AR54.65-P-0018LWP
Model 238.4
With Code 235 (Parking Pilot with PARKTRONIC)
Shown With Code B01 (48V technology)
Show without code B01 (48V technology)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission parking system control unit (N62) | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-06LWO | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove trunk recess cover | AR68.30-P-4600LWO | |
| 4 | Remove on-board electrical system battery | Model 238.4 with code 235 (Parking Pilot with PARKTRONIC) with code B01 (48V technology) | AR54.10-P-0009LWK |

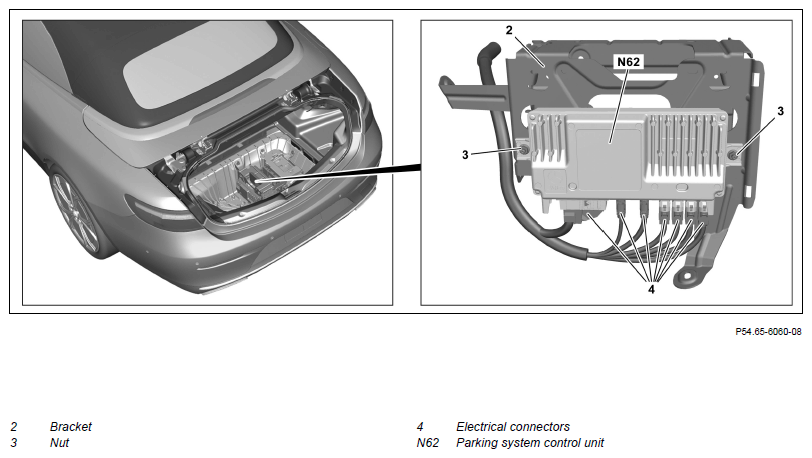

| 5 | Remove bolts (1) and lift up bracket (2) | Model 238.4 with code 235 (Parking Pilot with PARKTRONIC) with code B01 (48V technology) | |
| 6 | Unscrew nuts (3) and remove parking system control unit (N62) from bracket (2) | ||
| 7 | Disconnect electrical connections (4) | ||
| 8 | Install in the reverse order |
