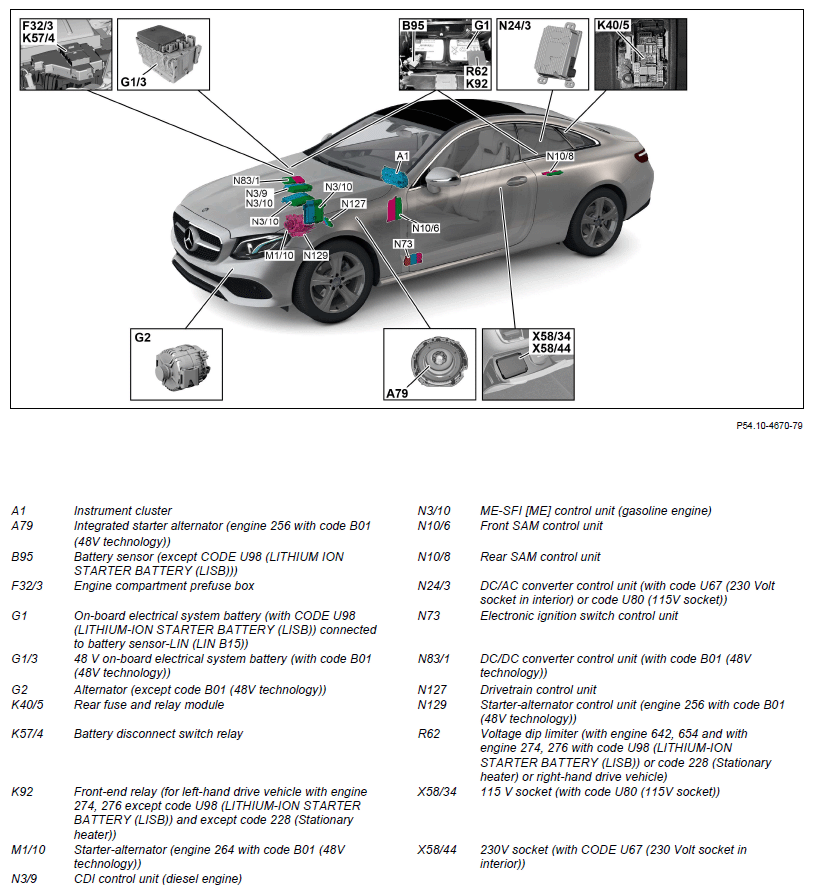

Overview Of Energy Management System Components - GF54.10-P-9990FH
Model 238 Up To Model Year 2021
Shown On Model 238.3
The on-board electrical system battery and the battery sensor that goes with it are installed in the trunk recess beneath the cover in vehicles with code B01 (48V technology) and in the engine compartment in vehicles except code B01 (48V technology).
Model 238
up to Model year 2021
with code B01 (48V technology)
The low-temperature circuit 2 temperature sensor (B10/14) and low-temperature circuit circulation pump 2 (M43/7) are also installed.

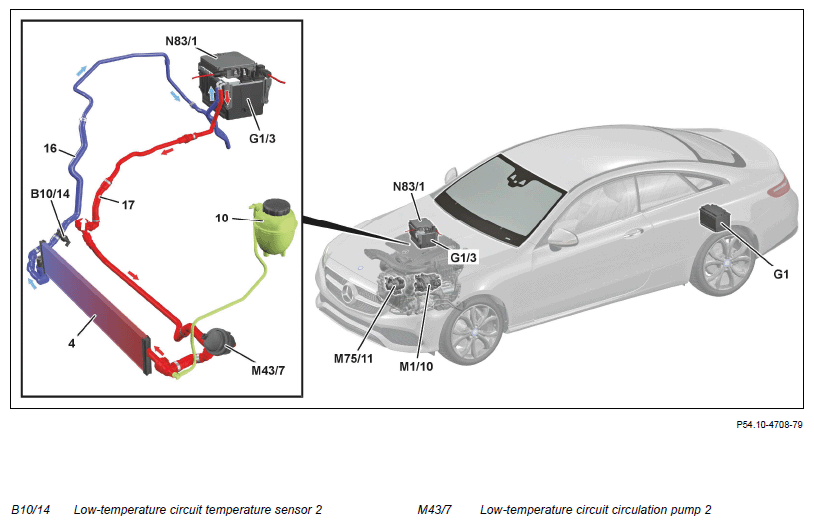

View of low-temperature circuit 2 (With Code B01 (48V technology)), shown on engine 264.9 in Model 238.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Component description for starter-alternator | Model 238 with engine 264 up to Model year 2021 with code B01 (48V technology) M1/10 | GF15.40-P-2103FH | |
| Component description for CDI control unit | Model 238 with engine 656.9 up to Model year 2021 N3/9 | GF07.16-P-6000OIA | |
| Model 238 with engine 642.8 up to Model year 2021 N3/9 | GF07.16-P-6000OGW | ||
| Model 238 with engine 654.9 up to Model year 2021 N3/9 | GF07.16-P-6000ORC | ||
| Component description for ME-SFI (ME) control unit | Model 238 with engine 264.9 up to Model year 2021 N3/10 | GF07.61-P-6000MRG | |
| Model 238 with engine 274.9 up to Model year 2021 N3/10 | GF07.61-P-6000MRD | ||
| Model 238 with engine 276.8 up to Model year 2021 N3/10 | GF07.61-P-6000MND | ||
| Model 238 with engine 256.9 up to Model year 2021 N3/10 | GF07.61-P-6000MRT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FH | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Component description for DC/DC converter control unit | Model 238 up to Model year 2021 with code B01 (48V technology) N83/1 | GF54.10-P-3006FH | |
| Drivetrain control unit, component description | Model 238 with engine 656.9 up to Model year 2021 N127 | GF54.21-P-2141OGS | |
| Model 238 with engine 642.8, 654.9 up to Model year 2021 N127 | GF54.21-P-2141ORC | ||
| Model 238 with engine 264.9, 274.9, 276.8 up to Model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 238 with engine 256.9 up to Model year 2021 N127 | GF54.21-P-2141LF | ||
| Starter-alternator control unit component description | Model 238 with engine 256 up to Model year 2021 with code B01 (48V technology) N129 | GF54.21-P-4191FH | |
| Table of contents for function description of energy management | GF54.10-P-0990FH |
