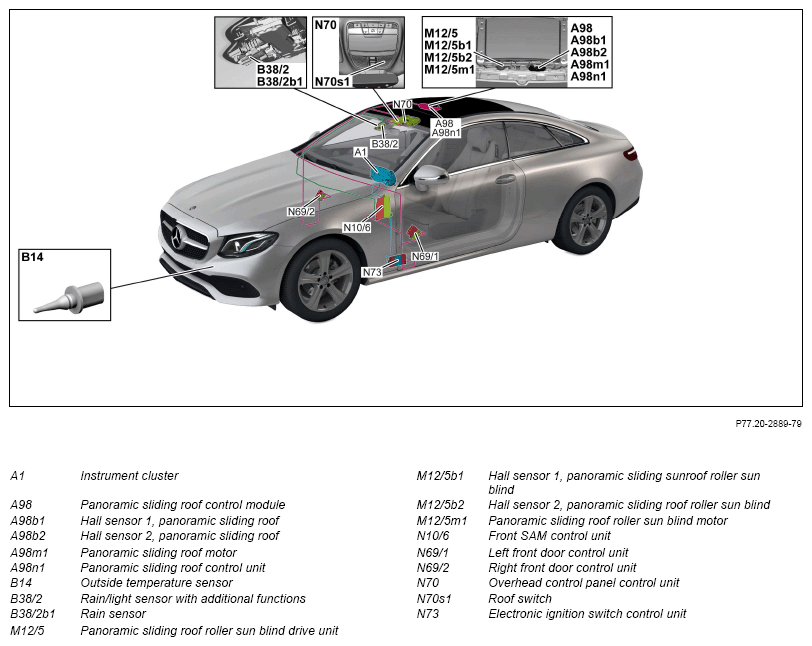

Overview Of System Components, Panoramic Sliding Sunroof - GF77.20-P-9991FH
Model 238 up to model year 2021 with code 413 (Panoramic sliding sunroof/glass roof)
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Component description for panoramic sliding roof control module | A98 | GF77.20-P-4106FH | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005FH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FH | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FH | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FH | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Table of contents, function description for electric panoramic sliding sunroof | GF77.20-P-0997FH |
