Overview Of System Components For Soft Top, Component Description - GF77.30-P-9997FH
Model 238.4 up to model year 2021

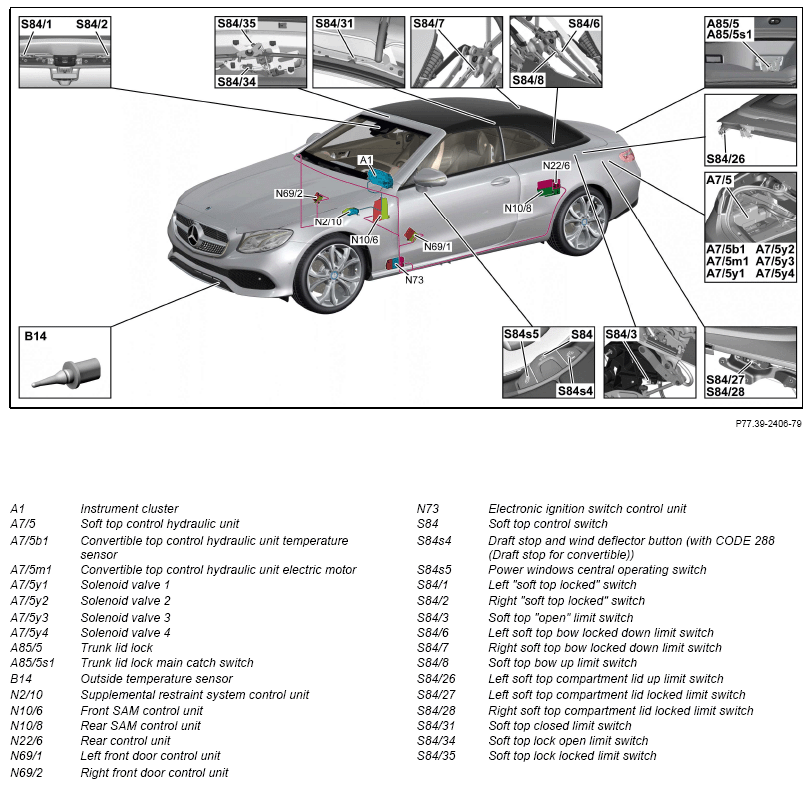

Soft top control

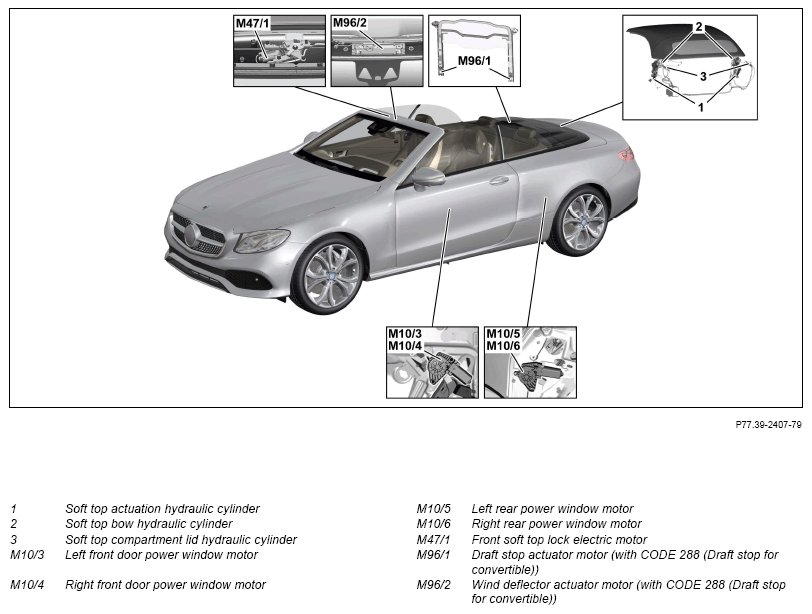

Soft top control, power window

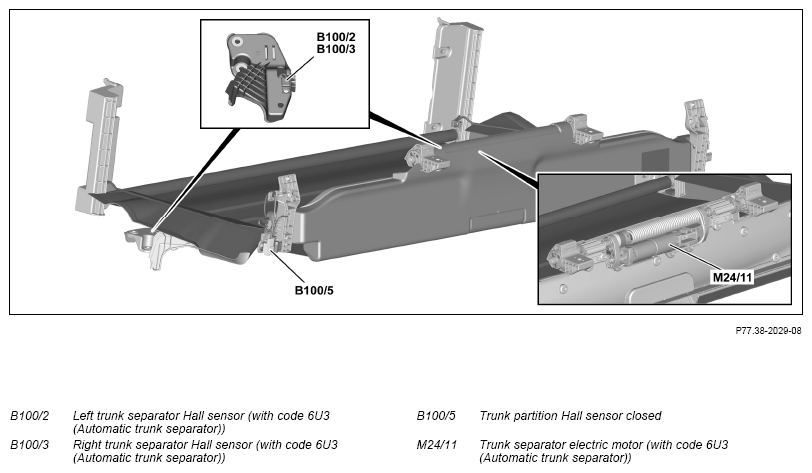

Trunk partition
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FH | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FH | |
| Rear control unit, component description | N22/6 | GF54.21-P-4134FH | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FH | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Table of contents for function description of soft top | GF77.30-P-0999FH |
