Remove/Install Passenger Airbag Unit - AR91.60-P-0680LWE
Model 213, 238.3
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove display module | AR54.30-P-6023LWE | |
| 2 | Remove glove compartment | AR68.10-P-1402LWE | |
| 3 | Remove paneling on A-pillar | Model 238.3 | AR68.30-P-4050LWO |
| Model 213 | AR68.30-P-4050LW | ||
| 4 | Remove TV antenna amplifier under A-pillar trim at right | Model 213.2## 1# with code 865 (digital TV) | AR82.62-P-8305LWT |
| Model 213.0##/1## 1#, 238.3## 1# with code 865 (digital TV) | AR82.62-P-8305LWE | ||
| 5 | Remove TV antenna amplifier under A-pillar trim at left | Model 213.2## 2# with code 865 (digital TV) | AR82.62-P-8308LWT |

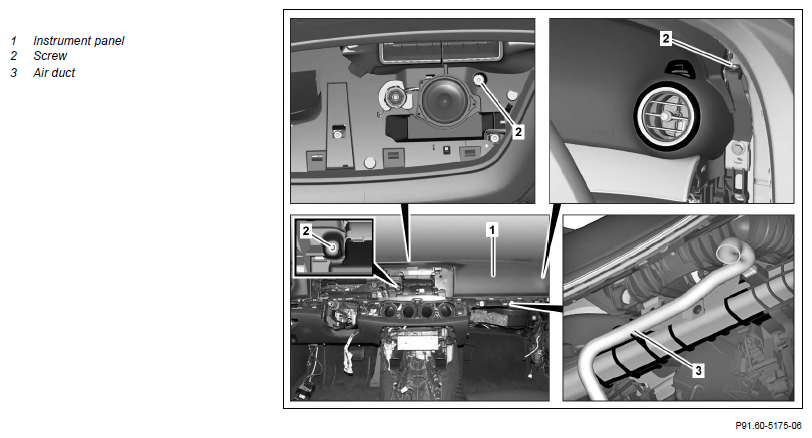

| 6 | Remove bolts (2) | ||
| 7 | Remove air duct (3) | ||

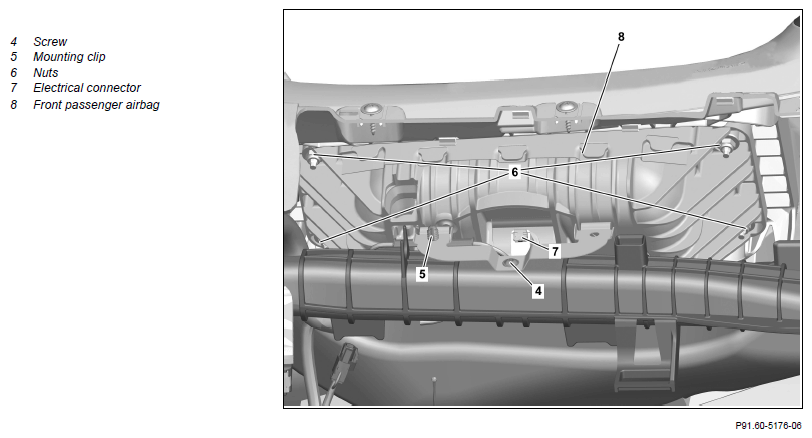

| 8 | Unclip retaining clip (5) from bracket of front passenger airbag | Fig 2 | |
| 9 | Unscrew bolt (4) | *BA91.60-P-1002-01O | |
| 10 | Unscrew nuts (6) | *BA91.60-P-1001-01O | |
| 11 | Press instrument panel (1) upwards and remove front passenger airbag (8) until electrical connector (7) is accessible | ||
| 12 | Disconnect electrical connector (7) and remove front passenger airbag (8) | ||
| 13 | Install in the reverse order | ||
| 14 | Check Supplemental Restraint System (SRS) with diagnostic system | ||
| Model 238.3 | AD00.00-P-2000-06LWO | ||
| Model 213 | AD00.00-P-2000-04B |
AIRBAG
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA91.60-P-1001-01O | Nut, front passenger airbag unit to instrument panel | Nm | 5 | 5 |
AIRBAG
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA91.60-P-1002-01O | Screw/bolt, front passenger airbag unit to crossmember | Nm | 4 | 4 |
