Remove/Install Display Module - AR54.30-P-6023LWE

Model 213

Model 238

Shown With Code 522 (Audio 20 radio)

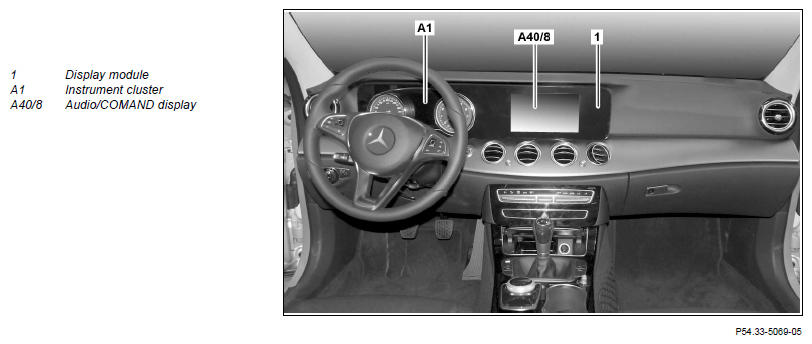

Fig 1: Display Module Components Location - Model 238 (Shown With Code 522)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Move steering wheel all way down and to rear
3	Slide clip remover between instrument panel and cover (2) (arrows), unclip and remove cover (2)	Clip remover	Fig 2
4	Remove bolts (3)	Push display module (1) forwards and tighten bolts (3).
5	Lift up the retaining tabs of the bolts (3) slightly using a suitable tool and tilt display module (1) as far as possible out of the instrument panel to gain access to the electrical connectors	Do not apply too much force when lifting up the retaining tabs of the bolts (3). Otherwise, the display module (1) may be damaged.
6	Disconnect electrical connections	The number of electrical connectors may vary depending on the equipment.
7	Remove display module (1)
8	Install in the reverse order

Fig 2: Identifying Clip Remover (452 589 01 63 00)
