Remove/Install Low Temperature Circuit Cooler - AR09.41-P-6936MND
Engine 276.8 In Model 213, 238
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Drain off coolant of Engine cooling system | AR20.00-P-1142OLC | |
| 2 | Drain off coolant in Low Temperature circuit | AR09.41-P-6834MND | |
| 3 | Remove cross strut over radiator package | Engine 276.8 in model 238 | AR62.30-P-2200LWO |
| Engine 276.8 in model 213 | AR62.30-P-1570LW | ||
| 4 | Remove fan unit | AR20.40-P-5050MND | |
| 5 | Remove radiator | AR20.20-P-3865MND | |

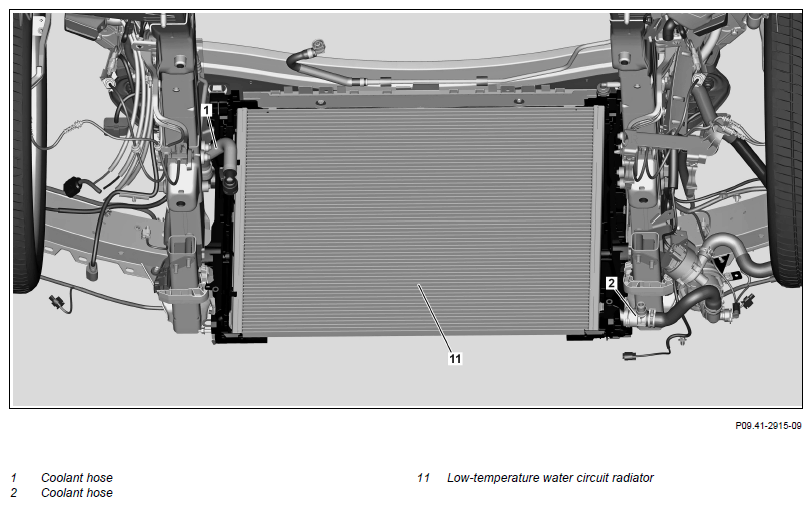

| 6 | Detach left coolant hose coupling (1) at Low Temperature water circuit radiator (11) | AR20.20-P-7441-01RQ | |
| 7 | Detach right coolant hose coupling (2) at Low Temperature water circuit radiator (11) | AR20.20-P-7441-01RQ | |
| 8 | Pull Low Temperature water circuit radiator (11) in the right out if the radiator support to the rear | ||
| 9 | Move Low Temperature water circuit radiator (11) from left radiator support to the right and remove upwards | ||
| 10 | Install in the reverse order | ||
| 11 | Check Low Temperature water circuit radiator (11) for damage | When reusing the Low Temperature water circuit radiator (11) If damage is present. ↓ |
|
| Replace Low Temperature water circuit radiator (11). |
