Remove/Install Radiator - AR20.20-P-3865MND
Engine 276.8 in model 213, 238
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Drain off coolant of engine cooling system | AR20.00-P-1142OLC | |
| 2 | Unclip coolant line (14) on cross strut over the radiator package | ||
| 3 | Remove cross strut over radiator package | Engine 276.8 in model 213 | AR62.30-P-1570LW |
| Engine 276.8 in model 238 | AR62.30-P-2200LWO | ||

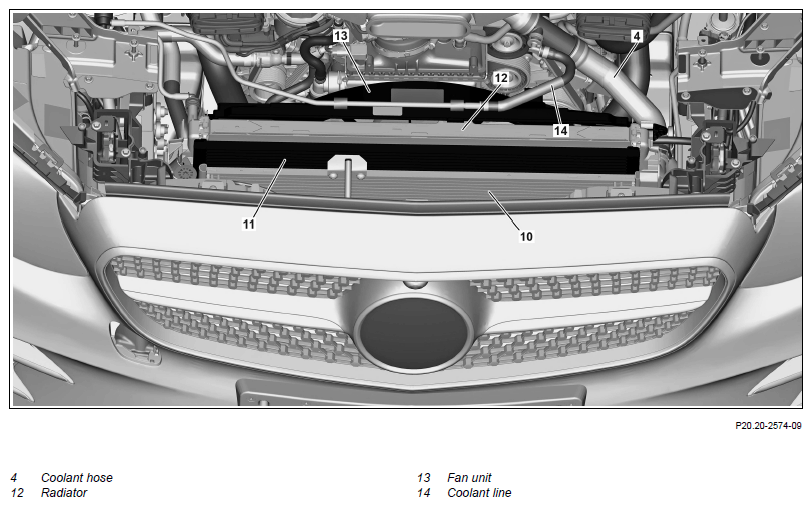

| 4 | Remove fan unit (13) | AR20.40-P-5050MND | |

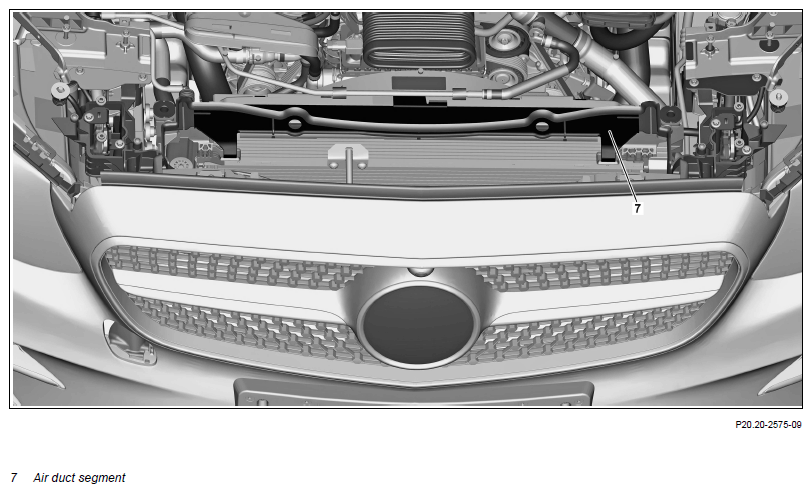

| 5 | Unclamp air duct segment (7) | ||

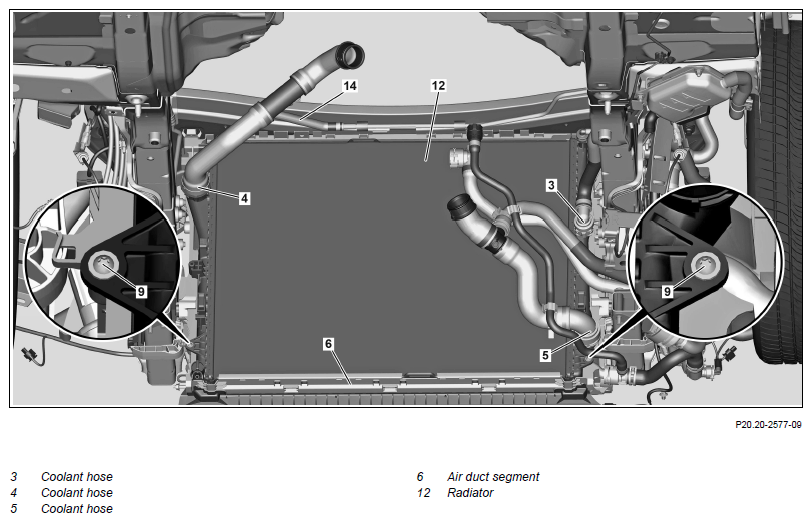

| 6 | Detach coolant hoses (3, 4, 5) at radiator (12) | AR20.20-P-7441-01RQ | |
| 7 | Unscrew screw/bolts (9) | ||
| 8 | Unclip air duct segment (6) | ||
| 9 | Unhook radiator (12) from supporting frame and pull out upwards | ||
| 10 | Check radiator (12) for signs of damage | When reusing of the radiator (12). If damage is present ↓ Replace the radiator (12). |
|
| 11 | Install in the reverse order |
