Remove/Install Fan Unit - AR20.40-P-5050MND
Engine 276.8 in model 213, 238
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove upper engine cover | ||
| 3 | Remove left, right and center engine air intake duct | ||

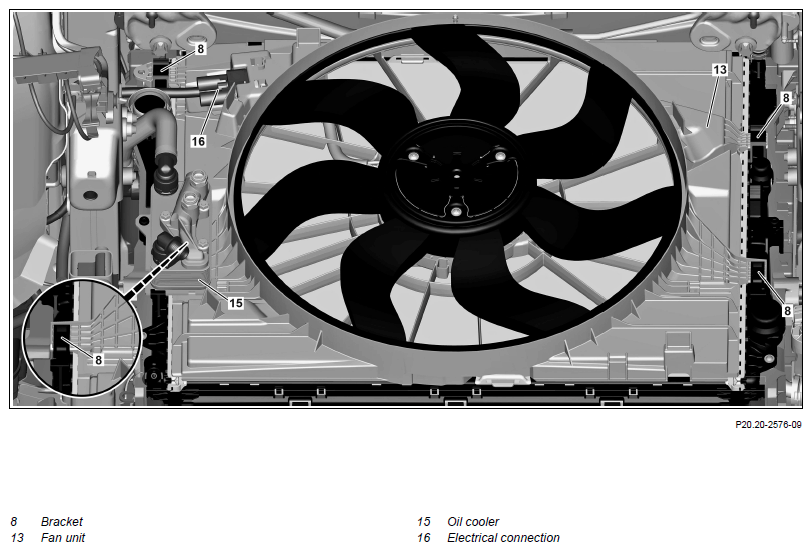

| 4 | Release and disconnect electrical connection (16) on fan unit (13) | ||
| 5 | Remove cross strut over radiator package | Engine 276.8 in model 213 | AR62.30-P-1570LW |
| Engine 276.8 in model 238 | AR62.30-P-2200LWO | ||
| 6 | Detach oil cooler (15) from fan unit (13) and put it to one side with connected lines | AR27.55-P-1000OLD | |

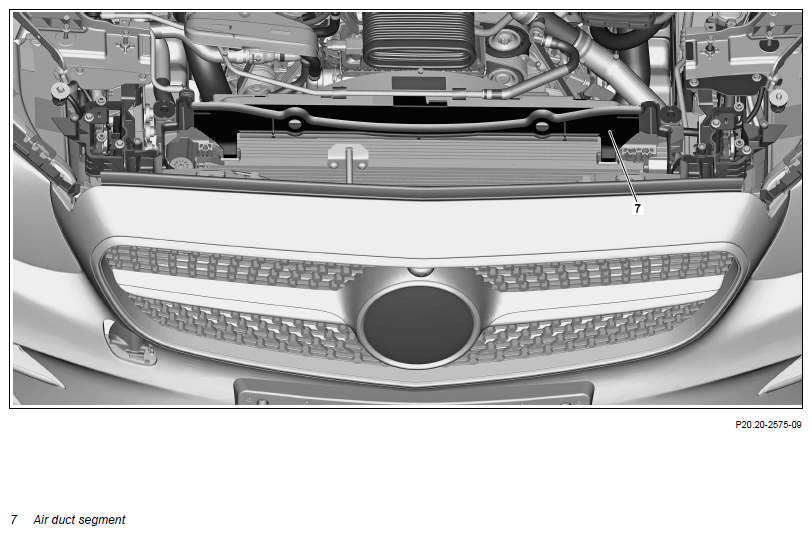

| 7 | UnClamp air duct segment (7) | ||
| 8 | Unhook fan unit (13) from the holders (8) | ||

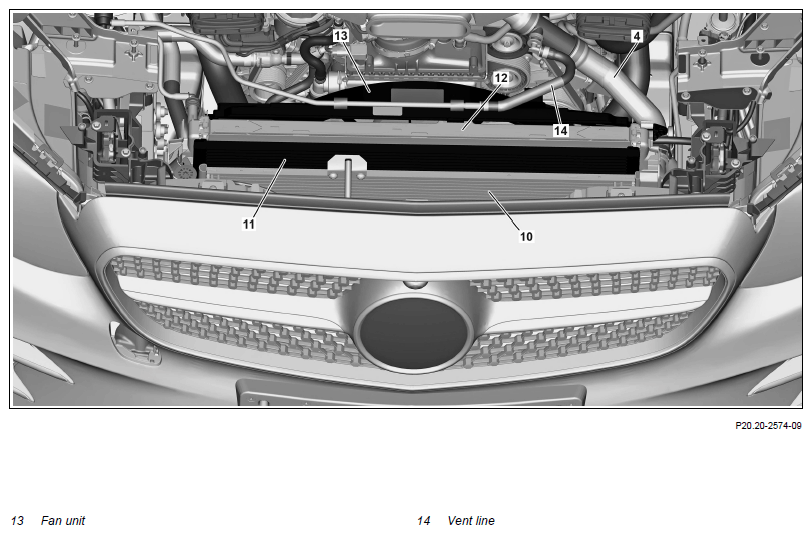

| 9 | Push vent line (14) to rear and remove fan unit (13) upwards | ||
| 10 | Install in the reverse order |
