Remove/Install Electric Additional Charge Air Compressor - AR09.50-P-4770MSA

Engine 256.9 In Model 213, 238, 257

With Code M016 (Uprated engine)

Engine 256.9 In Model 290

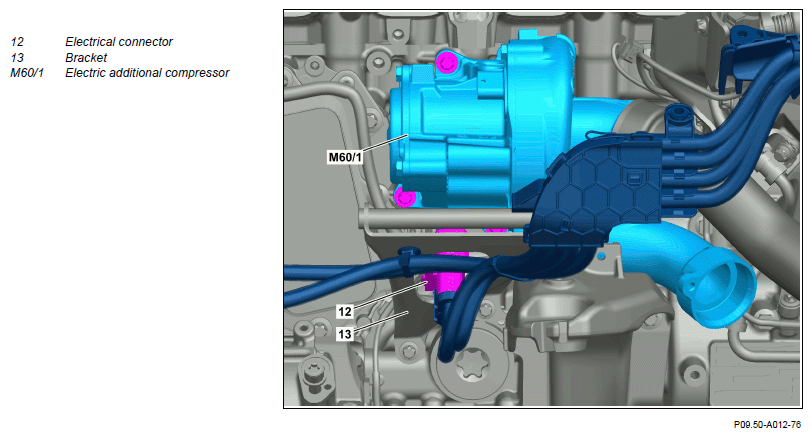

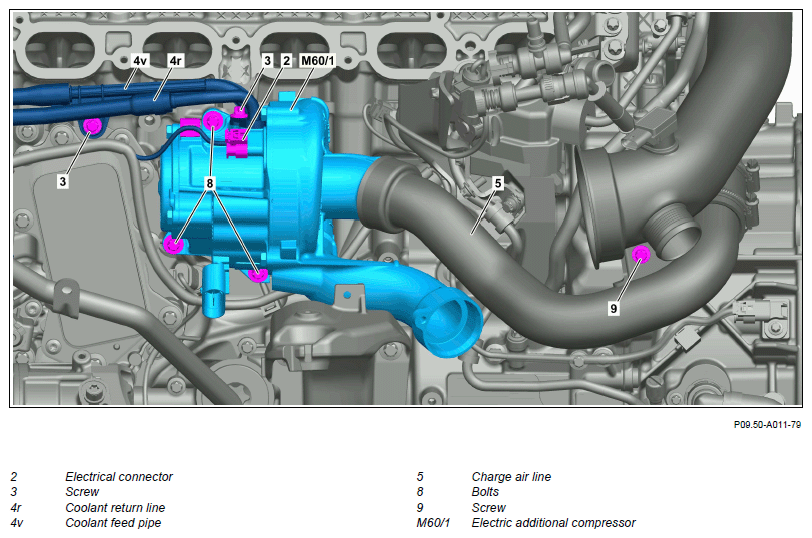

Fig 1: Electric Additional Charge Air Compressor Components Location - Engine 256.9 In Model 238 With Code M016

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove charge-air distributor.	: Do not install upper Engine cover until after the leak test.	AR09.41-P-8683MSA
2	Remove bolts (3).	M6X1	*BA00.10-P-1002-04A
		Screw, feed line/return line to additional compressor	*BA09.50-P-1002-02MRT
3	Remove coolant return line (4r) and coolant feed pipe (4v) and seal openings with suitable stop plugs.	: Replace O-rings. Record plug	Fig 2
4	Release and disconnect electrical connector (2), unclip electric line.
5	Release and disconnect electrical connector (12), unclip electric line.
6	Remove holder (13).	Screw, charge air distributor support to crankcase	*BA09.41-P-1015-01MRT
7	Unscrew screw (9) from timing case.	Screw, charge air line to timing case	*BA09.41-P-1004-01MRT
8	Unscrew the screws (8).	Screw/bolt, additional compressor to crankcase	*BA09.50-P-1001-02MRT
9	Remove electric additional compressor (M60/1).
10	Install in the reverse order.
11	Read out and delete fault memory.
		Engine 256.9 in model 213 with code M016 (Uprated Engine)	AD00.00-P-2000-04B
		Engine 256.9 in model 238 with code M016 (Uprated Engine)	AD00.00-P-2000-06LWO
		Engine 256.9 in model 257 with code M016 (Uprated Engine) Engine 256.9 in model 290	AD00.00-P-2000-06FR
	Risk of accident  from vehicle starting off by itself when Engine running. Risk of injury  (bruises and burns) resulting from working on the Engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Carry out Engine test run and check Engine for proper operation and leak tightness.
13	Install upper Engine cover.		AR01.10-P-2405MSA

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
