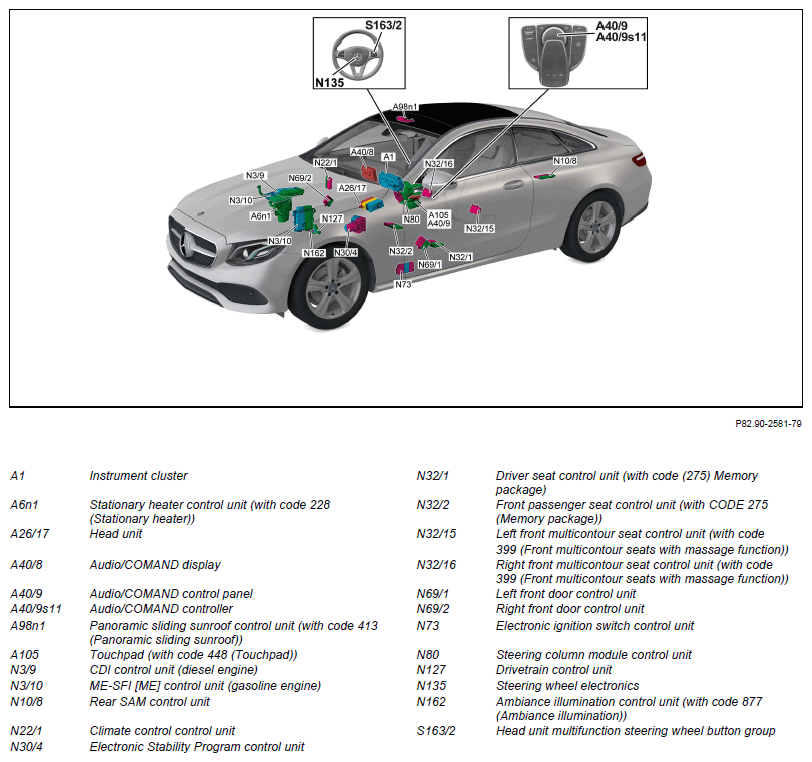

Overview Of System Components For Energizing Convenience Control - GF82.90-P-9992FH
Model 238 Up To Model Year 2021 With Code P72 (ENERGIZING comfort control)
As of 01.06.2018 the steering wheel electronics are attached as a control unit onto the steering wheel CAN (CAN LR).
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Stationary heater control unit, component description | Model 238 up to model year 2021 with code 228 (Additional warm water heating) with code P72 (ENERGIZING comfort control) A6n1 | GF83.70-P-4066FH | |
| Head unit, component description | Model 238 up to model year 2021 with code 520 (Audio 20 USB) with code P72 (ENERGIZING comfort control) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FH | |
| Model 238 up to model year 2021 with code 522 (Audio 20 radio) with code P72 (ENERGIZING comfort control) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHA | ||
| Model 238 up to model year 2021 with code 531 (COMAND APS) with code P72 (ENERGIZING comfort control) A26/17 | GF82.85-P-3140FHB | ||
| Model 238 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) with code P72 (ENERGIZING comfort control) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHC | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FH | |
| Component description for Audio/COMAND control panel | Model 238 up to model year 2021 with code P72 (ENERGIZING comfort control) except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FH | |
| Component description for panoramic sliding roof control module | Model 238 up to model year 2021 with code 413 (Panoramic sliding sunroof/ glass roof) with code P72 (ENERGIZING comfort control) A98n1 | GF77.20-P-4106FH | |
| Touchpad, component description | Model 238 up to model year 2021 with code 446 (Touchpad only) with code P72 (ENERGIZING comfort control) Model 238 up to model year 2021 with code 448 (Touchpad) with code P72 (ENERGIZING comfort control) A105 |
GF54.21-P-4511FH | |
| Component description for CDI control unit | Model 238 with engine 642.8 up to model year 2021 with code P72 (ENERGIZING comfort control) N3/9 | GF07.16-P-6000OGW | |
| Model 238 with engine 654.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N3/9 | GF07.16-P-6000ORC | ||
| Model 238 with engine 656.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 238 with engine 264.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N3/10 | GF07.61-P-6000MRG | |
| Model 238 with engine 274.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N3/10 | GF07.61-P-6000MRD | ||
| Model 238 with engine 276.8 up to model year 2021 with code P72 (ENERGIZING comfort control) N3/10 | GF07.61-P-6000MND | ||
| Model 238 with engine 256.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N3/10 | GF07.61-P-6000MRT | ||
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FH | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250FH | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FH | |
| Component description for driver seat control unit | Model 238 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code P72 (ENERGIZING comfort control) N32/1 | GF91.29-P-5231FH | |
| Component description for front passenger seat control unit | Model 238 up to model year 2021 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code P72 (ENERGIZING comfort control) N32/2 | GF91.29-P-5241FH | |
| Multicontour seat control unit (MCS), component description | Model 238 up to model year 2021 with code 399 (Front multicontour seat with massage function) with code P72 (ENERGIZING comfort control) N32/15, N32/16 | GF91.25-P-5201FH | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FH | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Component description for steering column tube module control unit | Model 238 up to model year 2019 with code P72 (ENERGIZING comfort control) N80 | GF54.21-P-6051FH | |
| Model 238 as of model year 2019 up to model year 2021 with code P72 (ENERGIZING comfort control) N80 | GF54.21-P-6051FHG | ||
| Drivetrain control unit, component description | Model 238 with engine 642.8 up to model year 2021 with code P72 (ENERGIZING comfort control) Model 238 with engine 654.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 |
GF54.21-P-2141ORC | |
| Model 238 with engine 264.9, 274.9, 276.8 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 | GF54.21-P-2141MRP | ||
| Model 238 with engine 256.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 | GF54.21-P-2141LF | ||
| Model 238 with engine 656.9 up to model year 2021 with code P72 (ENERGIZING comfort control) N127 | GF54.21-P-2141OGS | ||
| Steering wheel electronics control unit, component description | Model 238 as of model year 2019 up to model year 2021 with code P72 (ENERGIZING comfort control) N135 | GF82.90-P-4006FHG | |
| Ambiance illumination control unit, component description | Model 238 up to model year 2021 with code 877 (Ambient lighting) with code P72 (ENERGIZING comfort control) N162 | GF82.20-P-5161FH | |
| Table of contents for function description of ENERGIZING convenience control | GF82.90-P-0996FH |
