Remove/Install Rear Wall Paneling - Ar64.10-P-1100LWO

Model 238.3

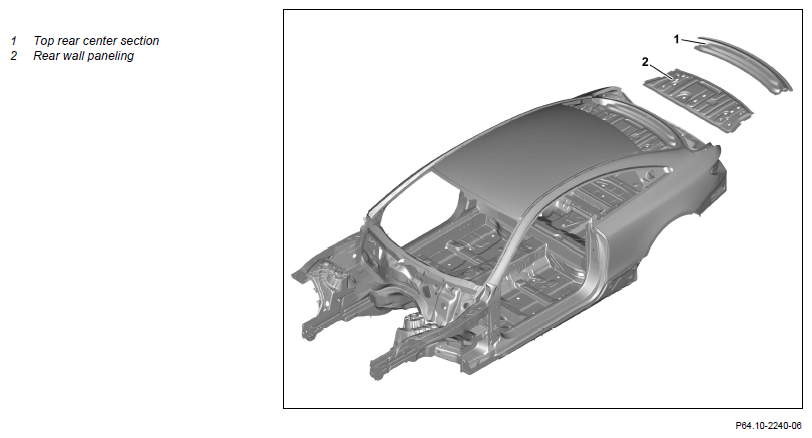

Fig 1: Package Tray Panel And Outer Package Tray Panel Component Locations
G15378389Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice General information on body repair   AH60.00-P-0001-01KOA
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
REMOVING Remove
1 Remove detachable parts in area to be repaired
2 Cover all detachable parts remaining on vehicle with spark protection blankets
3 Remove upper rear-end center section (1) and rear wall paneling (2)   AR64.10-P-1100-01LWO
    1K-zinc dust paint *BR00.45-Z-1056-07A
4 Prepare upper rear-end center section (1) and rear wall paneling (2)   AR64.10-P-1100-03LWO
INSTALLING Install
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
Notice Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
  General information on riveting   AH60.00-P-0003-01N
5 Install upper rear-end center section (1) and rear wall paneling (2)   AR64.10-P-1100-04LWO
    Countersunk-head blind rivet Z1 6.4 x 14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1043-13A
    Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1035-13A
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
6 Clean welds and sheet metal flanges
7 Remove spark protection blankets
8 Clean repair area
9 Prime repair area using primer filler
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
  General information on MB materials IMPORTANT Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal. AH98.00-P-9409-03A
10 Seal seam following repairs   AR97.10-P-4000LWO
11 Paint repair areas and adjacent surfaces
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
  General information on MB materials IMPORTANT Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal. AH98.00-P-9409-03A
12 Add cavity preserving agent   AR97.20-P-1500LWO
13 Install all detachable body components in area to be repaired
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1035-13A Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1043-13A Countersunk-head blind rivet Z1 6.4 x 14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) A 000 991 82 32
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
