Prepare Rear Wall Paneling For Installation - Ar64.10-P-1100-03LWO

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX

Model 238.3

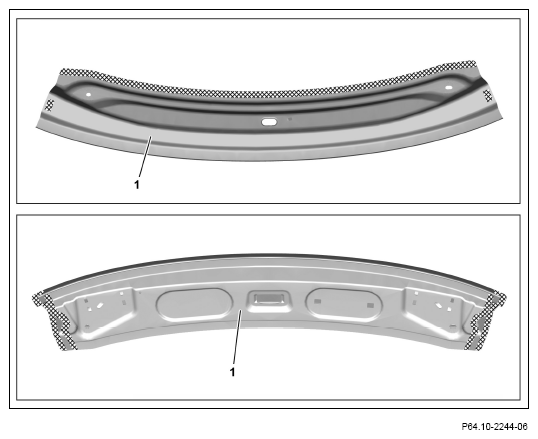

1. Grind mating surfaces on upper rear-end center section (1) down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

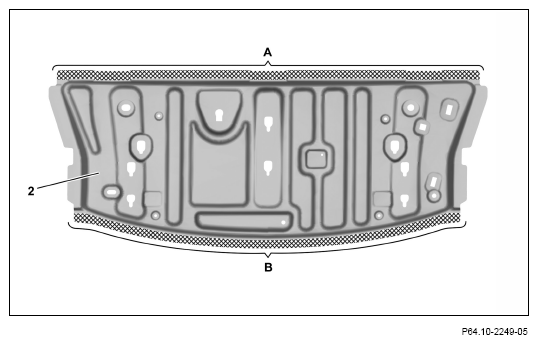

3. Grind mating surface on rear wall paneling (2) on underside down to bare metal in cross-hatched area (area A).
4. Grind mating surface on rear wall paneling (2) down to bare metal in cross-hatched area on both sides (area B).
5. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

Courtesy of MERCEDES-BENZ USA
