Overview Of System Components For Driver Assistance Systems - GF54.00-P-9998FH
Model 238 Up To Model Year 2021

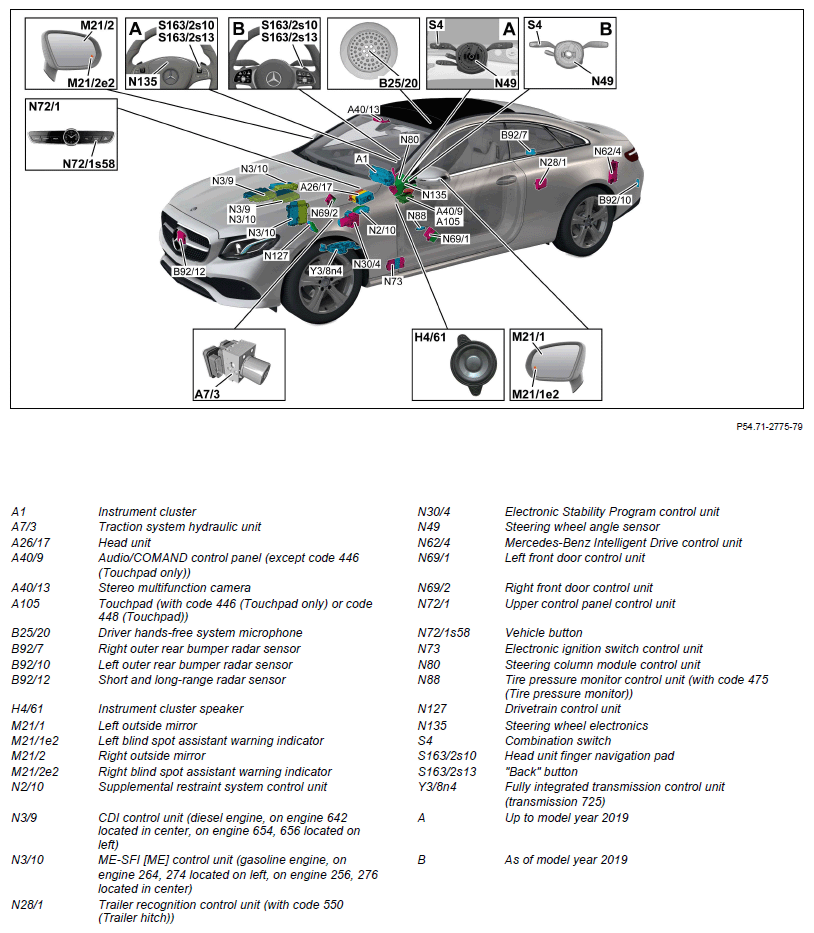

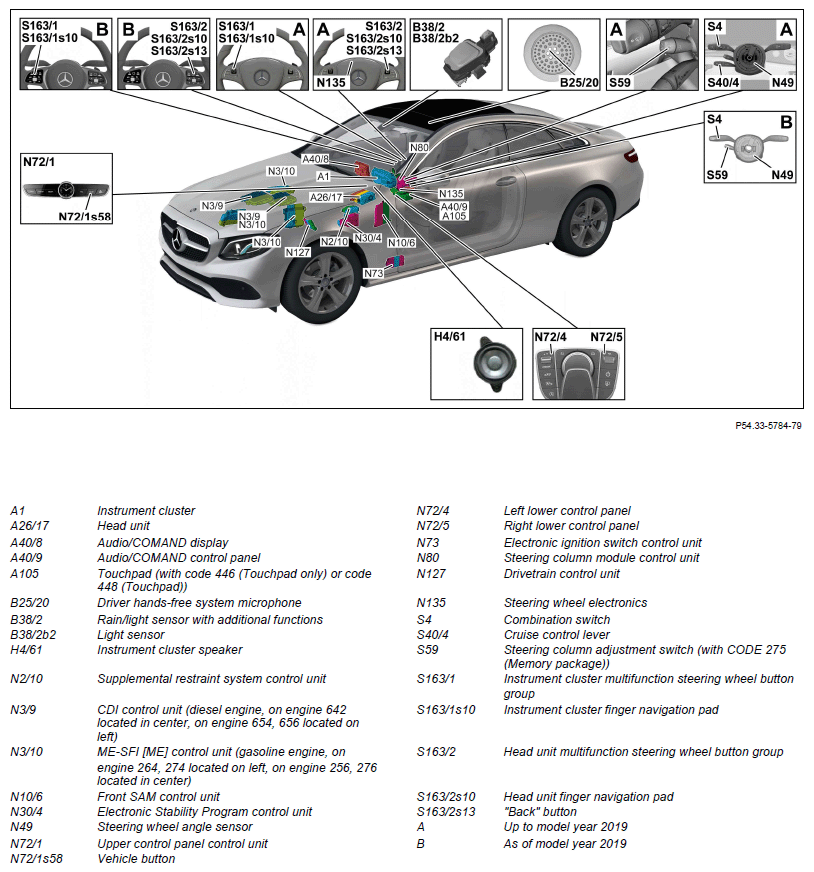

ATTENTION ASSIST, Shown On Model 238.3

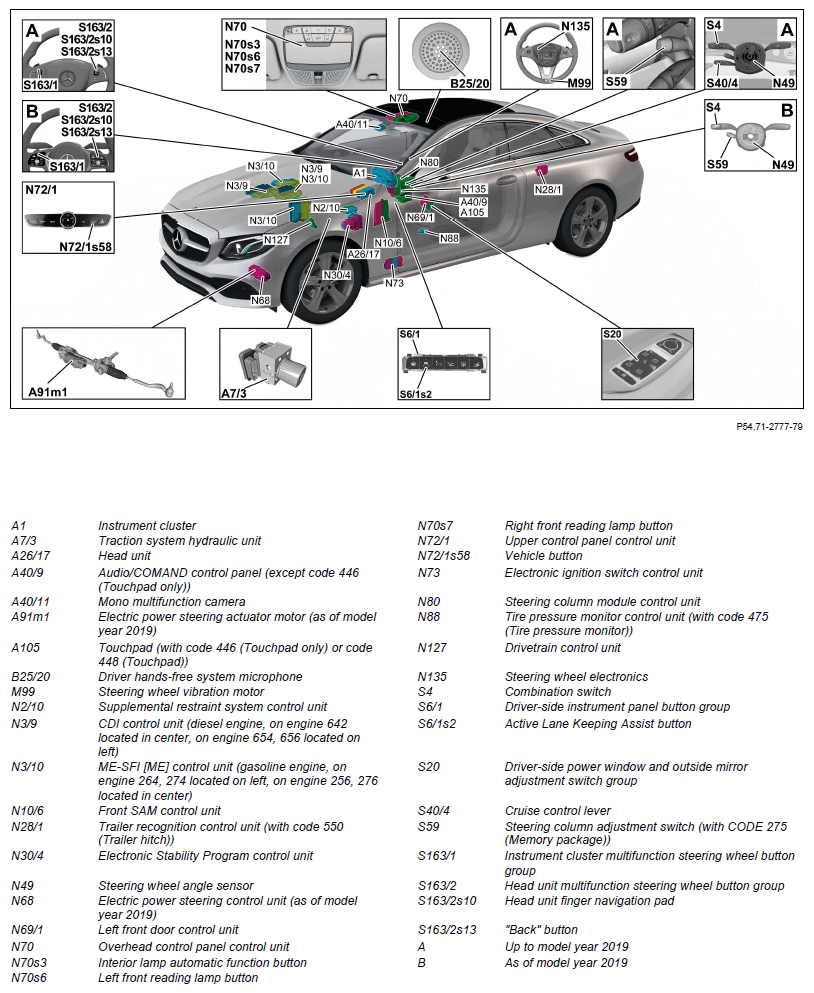

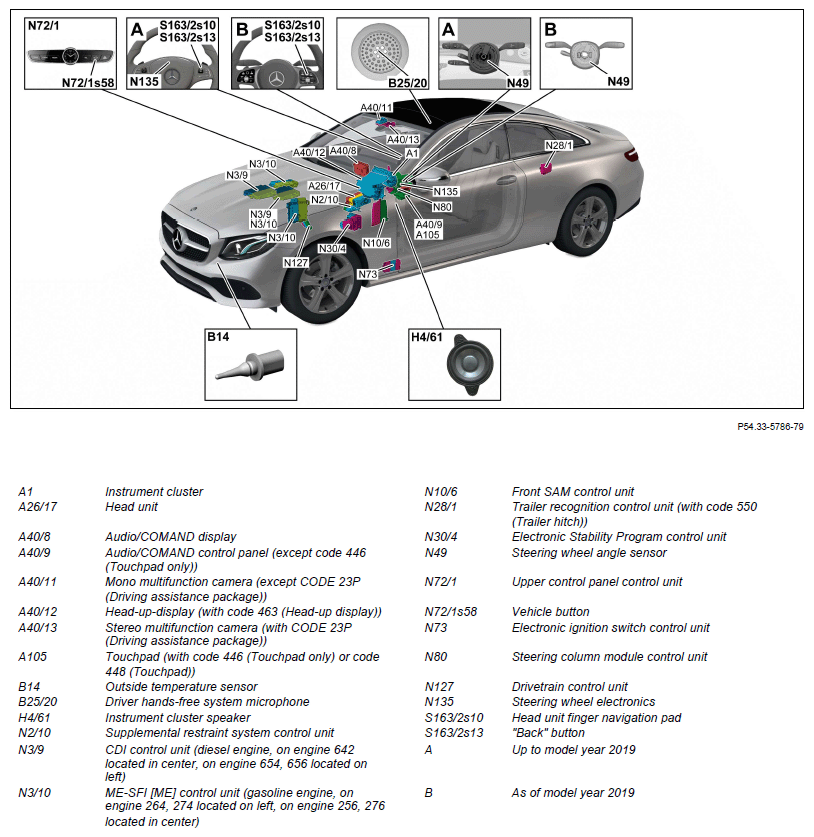

Cruise control, Shown On Model 238.3

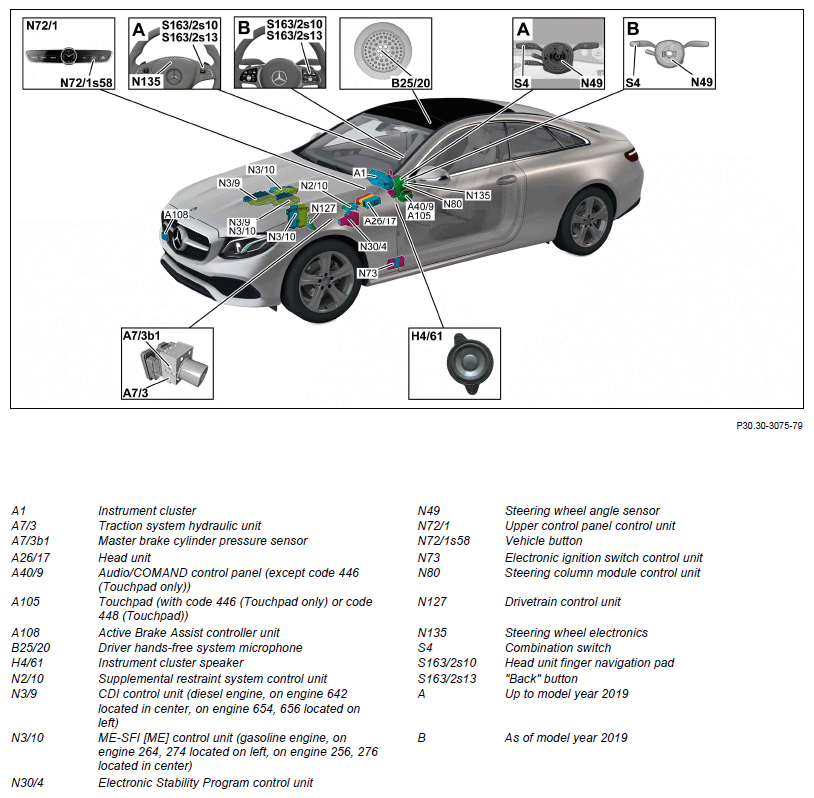

Active Brake Assist (With Code 258 (COLLISION PREVENTION ASSIST)), Shown On Model 238.3

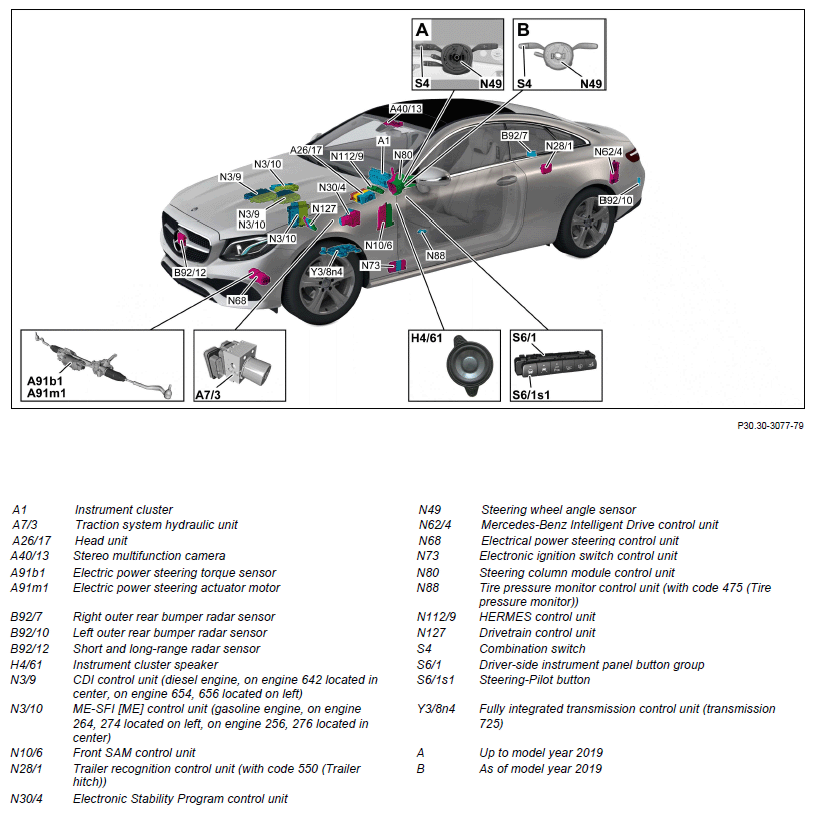

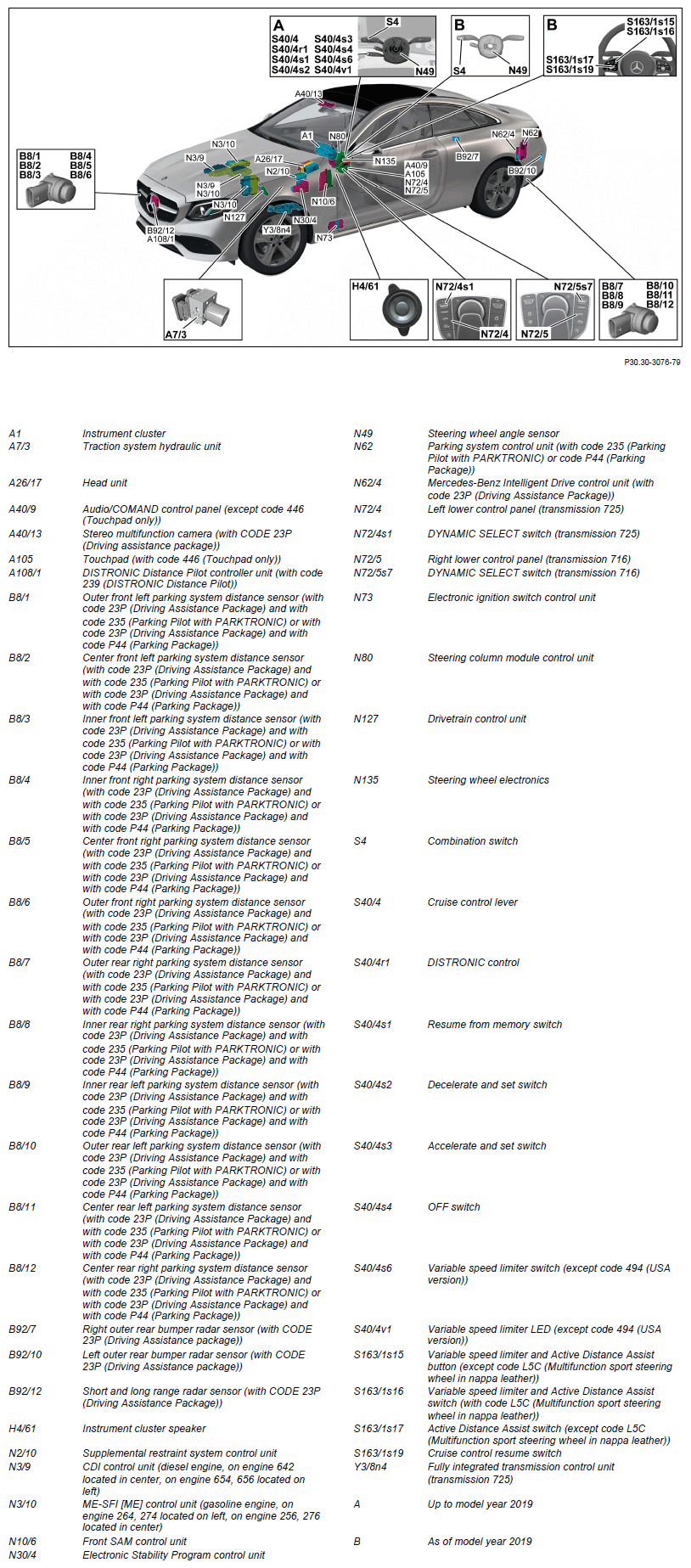

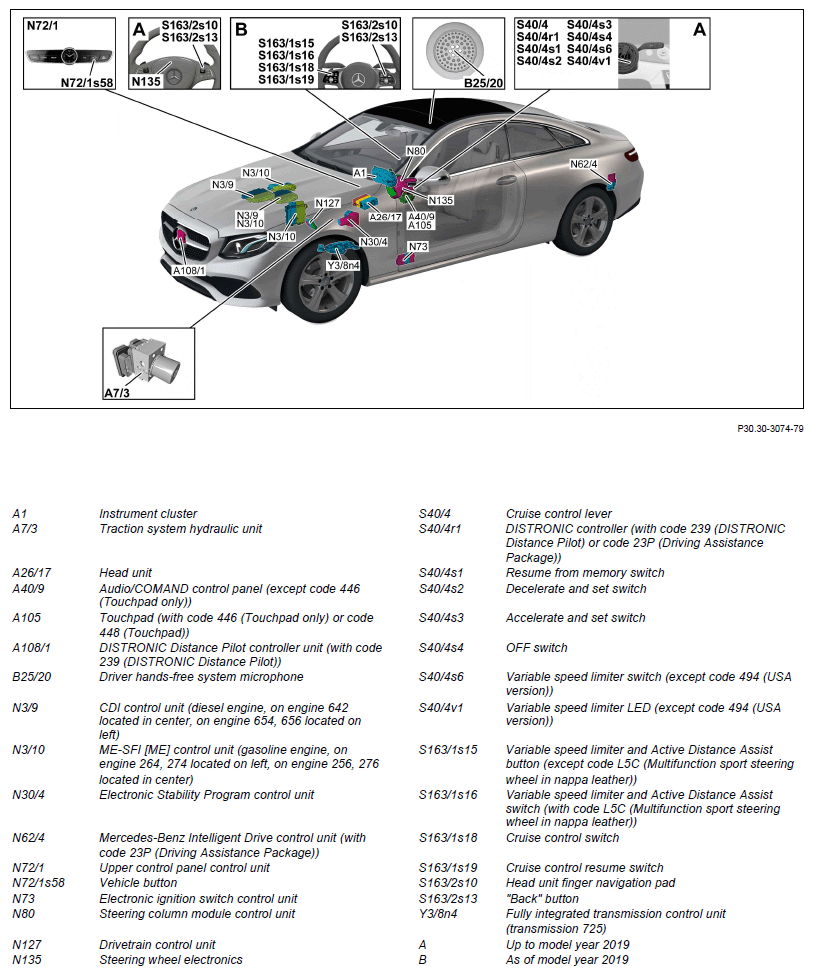

DISTRONIC Distance Pilot (With Code 239 (DISTRONIC Distance Pilot) or code 23P (Driving Assistance Package)), Shown On Model 238.3

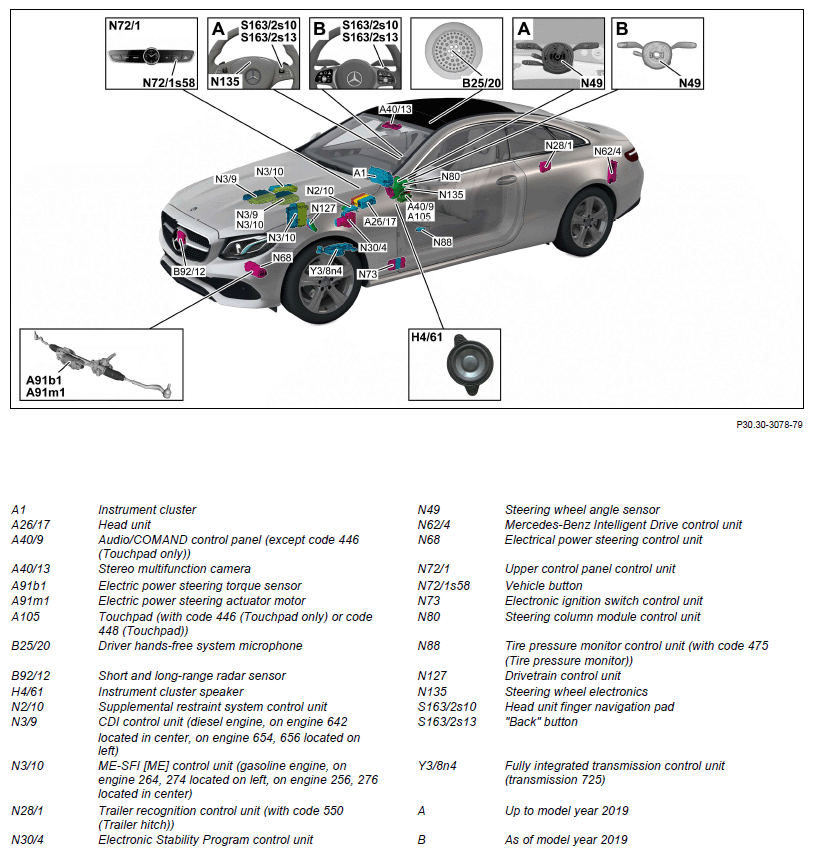

Steering Pilot (With Code 23P (Driving Assistance Package)), Shown On Model 238.3
Evasive Steering Assist (With Code 23P (Driving Assistance Package)), Shown On Model 238.3

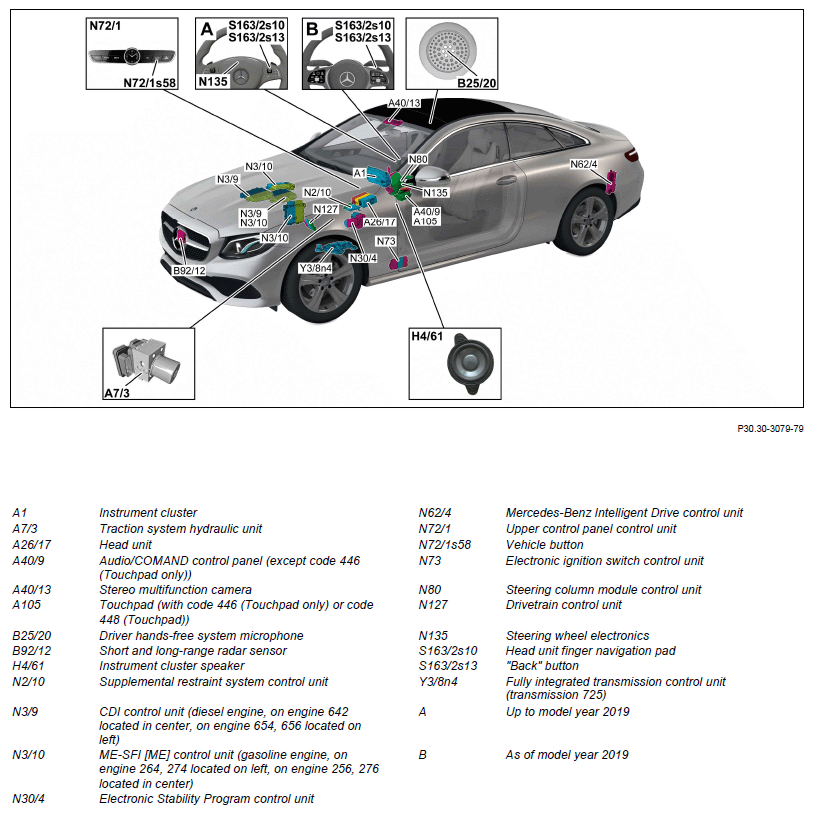

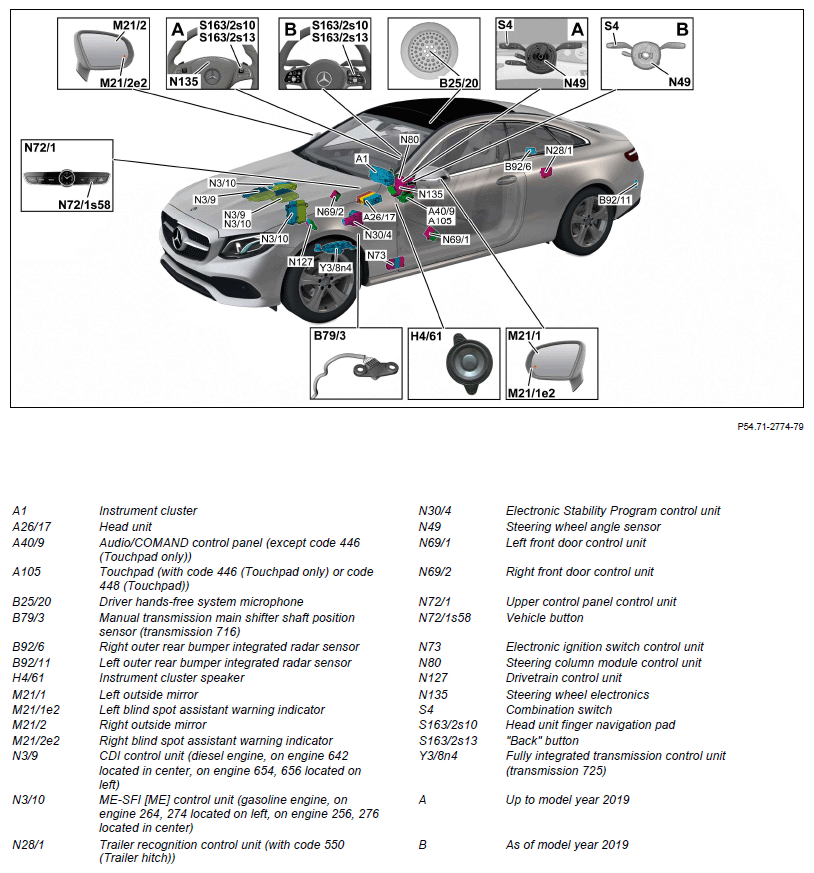

Blind Spot Assist (With Code 22P (Lane Tracking Package) or code 234 (Blind Spot Assist)), Shown On Model 238.3
Active Blind Spot Assist (With Code 23P (Driving Assistance Package)), Shown On Model 238.3

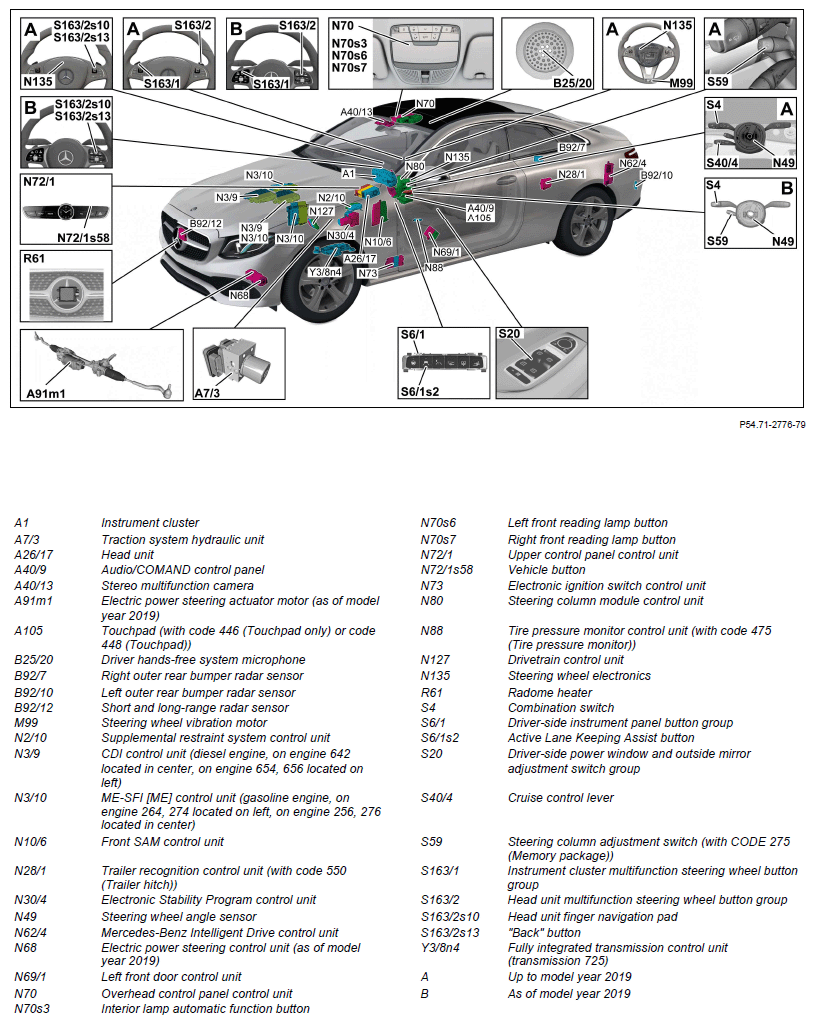

Active Lane Keeping Assist (With Code 23P (Driving Assistance Package) except code 243 (Active Lane Keeping Assist)), Shown On Model 238.3
Active Lane Keeping Assist (With Code 243 (Active Lane Keeping Assist) except code 23P (Driving Assistance Package)), Shown On Model 238.3

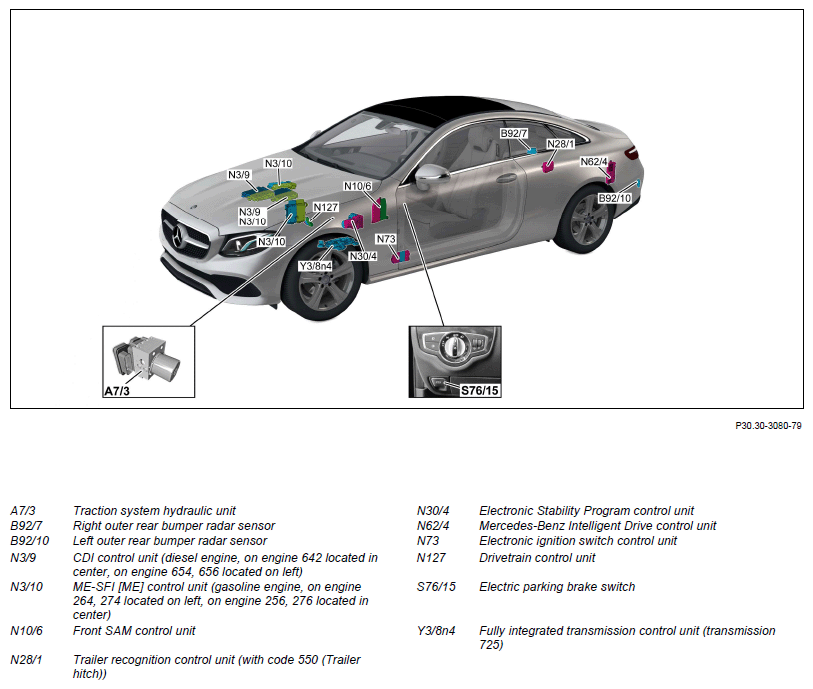

Active Brake Assist with intersection function (With Code 23P (Driving Assistance Package)), Shown On Model 238.3
Rear-end PRE-SAFE® (With Code 23P (Driving Assistance Package)), Shown On Model 238.3
Traffic Sign Assist (With Code 513 (Traffic Sign Assist)), Shown On Model 238.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FH | |
| Head unit, component description | Model 238 up to Model year 2021 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FH | |
| Model 238 up to Model year 2021 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHA | ||
| Model 238 up to Model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHB | ||
| Model 238 up to Model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHC | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FH | |
| Component description for Audio/COMAND control panel | Model 238 up to Model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FH | |
| Component description for multifunction camera | Model 238 up to Model year 2021 with code 22P (Lane tracking package) Model 238 up to Model year 2021 with code 23P (Drive package) Model 238 up to Model year 2021 with code 513 (Road sign recognition system) A40/11, A40/13 |
GF54.21-P-3300FH | |
| Head-up display, component description | Model 238 up to Model year 2021 with code 463 (Head-up display) A40/12 | GF54.30-P-6140FH | |
| Touchpad, component description | Model 238 up to Model year 2021 with code 446 (Touchpad only) Model 238 up to Model year 2021 with code 448 (Touchpad) A105 |
GF54.21-P-4511FH | |
| Active Brake Assist controller unit, component description | Model 238 up to Model year 2021 with code 258 (Collision warning system with active brake application FCW-Stop) A108 | GF30.30-P-3222FH | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 238 up to Model year 2021 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) A108/1 | GF30.30-P-3218FH | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005FH | |
| Component description for bumper radar sensors | Model 238 up to Model year 2021 with code 234 (Blind Spot Assist) Model 238 up to Model year 2021 with code 23P (Drive package) B92/6, B92/7, B92/10, B92/11 |
GF30.30-P-3302FH | |
| Short and long-range radar sensor, component description | Model 238 up to Model year 2021 with code 23P (Drive package) B92/12 | GF30.30-P-3126FH | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FH | |
| Component description for CDI control unit | Model 238 with engine 642.8 up to Model year 2021 N3/9 | GF07.16-P-6000OGW | |
| Model 238 with engine 654.9 up to Model year 2021 N3/9 | GF07.16-P-6000ORC | ||
| Model 238 with engine 656.9 up to Model year 2021 N3/9 | GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 238 with engine 274.9 up to Model year 2021 N3/10 | GF07.61-P-6000MRD | |
| Model 238 with engine 276.8 up to Model year 2021 N3/10 | GF07.61-P-6000MND | ||
| Model 238 with engine 264.9 up to Model year 2021 N3/10 | GF07.61-P-6000MRG | ||
| Model 238 with engine 256.9 up to Model year 2021 N3/10 | GF07.61-P-6000MRT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FH | |
| Component description for trailer recognition control unit | Model 238 up to Model year 2021 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050FH | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FH | |
| Parking system control unit, component description | Model 238 up to Model year 2021 with code 235 (Active Parking Assist) N62 | GF54.65-P-5004FH | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 238 up to Model year 2021 with code 23P (Drive package) N62/4 | GF30.30-P-3312FH | |
| Electric power steering control unit, component description | N68 | GF46.35-P-7012FH | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FH | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FH | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FH | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FH | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270FH | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FH | |
| Component description for steering column tube module control unit | Model 238 up to Model year 2019 N80 | GF54.21-P-6051FH | |
| Model 238 as of Model year 2019 up to Model year 2021 N80 | GF54.21-P-6051FHG | ||
| Component description for tire pressure monitor control unit | Model 238 up to Model year 2021 with code 475 (Tire pressure monitor (TPM)) N88 | GF40.15-P-5124FH | |
| HERMES control unit, component description | Model 238 up to Model year 2021 with code 360 (HERMES UMTS) Model 238 up to Model year 2021 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221FH | |
| Drivetrain control unit, component description | Model 238 with engine 256.9 up to Model year 2021 N127 | GF54.21-P-2141LF | |
| Model 238 with engine 264.9, 274.9, 276.8 up to Model year 2021 N127 | GF54.21-P-2141MRP | ||
| Model 238 with engine 642.8, 654.9 up to Model year 2021 N127 | GF54.21-P-2141ORC | ||
| Model 238 with engine 656.9 up to Model year 2021 N127 | GF54.21-P-2141OGS | ||
| Steering wheel electronics control unit, component description | Model 238 as of Model year 2019 up to Model year 2021 N135 | GF82.90-P-4006FHG | |
| Component description for fully integrated transmission control unit | Model 238 with transmission 725 up to Model year 2021 Y3/8n4 | GF27.60-P-5165FH | |
| Table of contents for function description of driver assistance systems | GF54.00-P-0998FH |
