Remove/Install Mobile Phone Cradle Control Unit - AR82.70-P-0007FR
Model 257
with code 897 (Front wireless telephone charging)
Model 257
with code 899 (Multifunction telephony)
Shown with code 448 (Touchpad)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform initial startup of mobile phone cradle control unit (N123/8) | When replacing the mobile phone cradle control unit (N123/8). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||

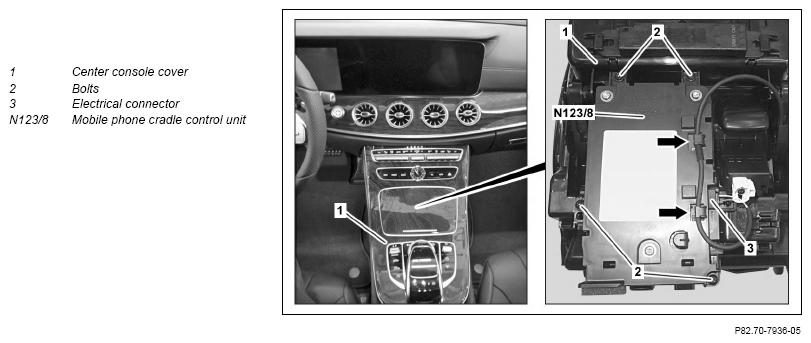

| 3 | Remove center console cover (1) | AR68.20-P-2350FR | |
| 4 | Remove screws (2) | ||
| 5 | Disconnect electrical connector (3) | ||
| 6 | Remove mobile phone cradle control unit (N123/8) | ||
| 7 | Install in the reverse order |
