Remove/Install Cover On Center Console - AR68.20-P-2350FR

Model 257

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

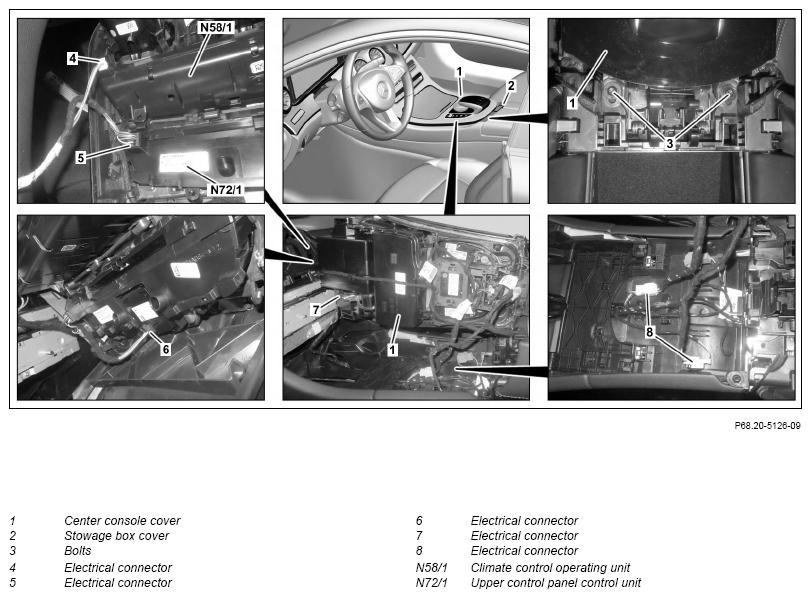

	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Open armrest cover
3	Remove stowage box cover (2)	There are two screws under the stop buffers.
4	Remove screws (3) at center console cover (1)
5	Lift center console cover (1) at rear and move out of instrument panel at top front until electrical connectors (4, 5) can be accessed	Cover center console and instrument panel with a cloth. Center console and instrument panel may otherwise be damaged.
6	Disconnect electrical connector (4) from air conditioning operating unit (N58/1)
7	Disconnect electrical connector (5) at upper control panel control unit (N72/1)
8	Disconnect electrical connectors (6, 7, 8)	The number can vary according to the equipment.
9	Remove cover on center console (1)
10	Install in the reverse order
