Remove/Install Head Unit - AR82.85-P-1101FR
Model 257
Model 290
MODIFICATION NOTES
| 07.04.2020 | Calibrate augmented reality camera (B84/14). | Operation step 10. |

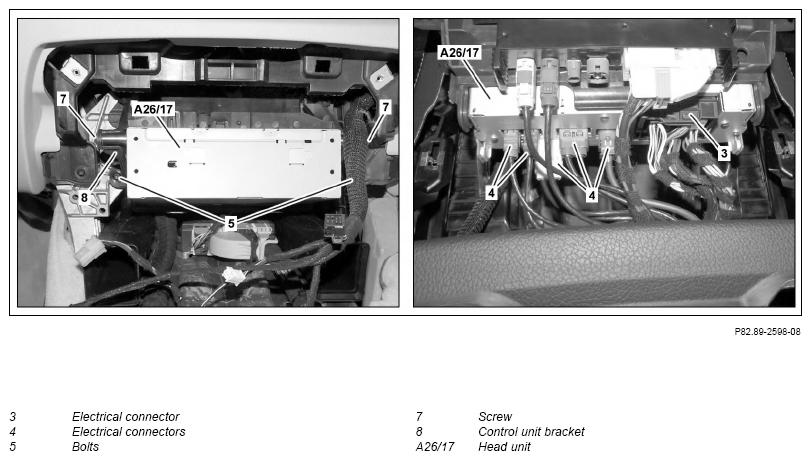

Shown on model 257 up to model year 2021
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove cover from center console. | Model 290 | AR68.20-P-2350FRX |
| Model 257 | AR68.20-P-2350FR | ||
| 3 | Remove bolts (5). | ||
| 4 | Remove control unit bracket (8) far enough from device installation slot to gain access to electrical connectors (3, 4) at rear of head unit (A26/17). | ||
| 5 | Release and disconnect electrical connectors (3, 4). | ||
| 6 | Remove bolts_(7). | ||
| 7 | Remove head unit (A26/17). | ||
| 8 | Install in the reverse order. | ||
| 9 | Perform commissioning of head unit (A26/17). | If the head unit (A26/17) has been replaced. | |
| AD00.00-P-2000-06FR | |||
| 10 | Calibrate augmented reality camera (B84/14). | Model 257 as of model year 2021 with code 21U (Video recording function (Dashcam)) Model 257 as of model year 2021 with code U19 (Augmented reality video) If the head unit (A26/17) has been replaced. |
|
| AD00.00-P-2000-06FR | |||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B |
