Remove/Install Gesture Camera - AR82.90-P-0003FR
Model 257, 290
as of model year 2021
with code 77B (Contactless gesture control at front)

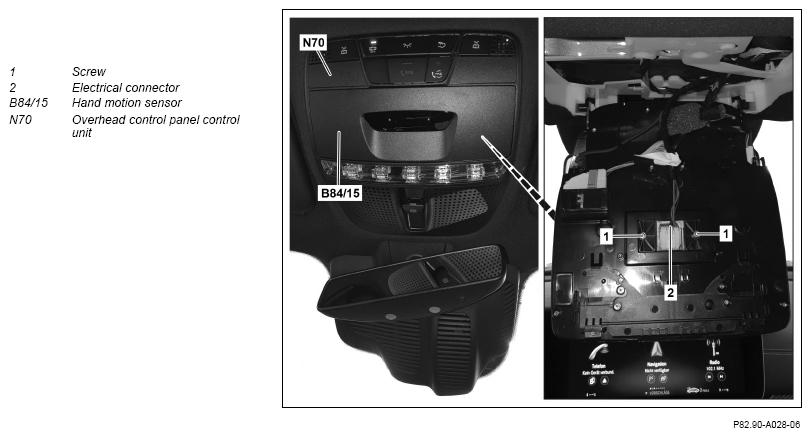

Shown on model 257
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove overhead control panel control unit (N70) until electrical connector (2) is accessible. | AR82.20-P-1000FR | |
| 2 | Release and disconnect electrical connector (2) of hand motion sensor (B84/15). | ||
| 3 | Unscrew screws (1) and remove hand motion sensor (B84/15). | ||
| 4 | Install in the reverse order. | ||
| 5 | Perform commissioning of hand motion sensor (B84/15). | When replacing hand motion sensor (B84/15). | |
| AD00.00-P-2000-06FR |
