Remove/Install Overhead Control Panel Control Unit - AR82.20-P-1000FR
Model 257, 290
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of overhead control panel control unit (N70). | When replacing the overhead control panel control unit (N70). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

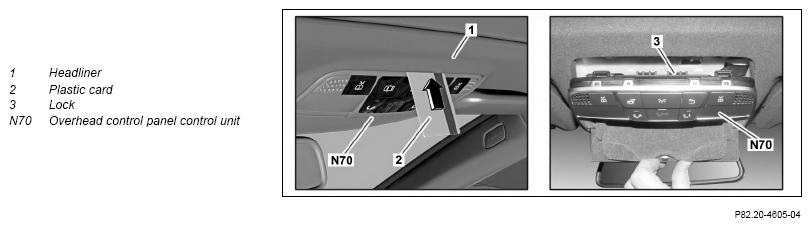

| 3 | Insert plastic card (2) vertically half way between roof lining (1) and overhead control panel control unit (N70). | ||

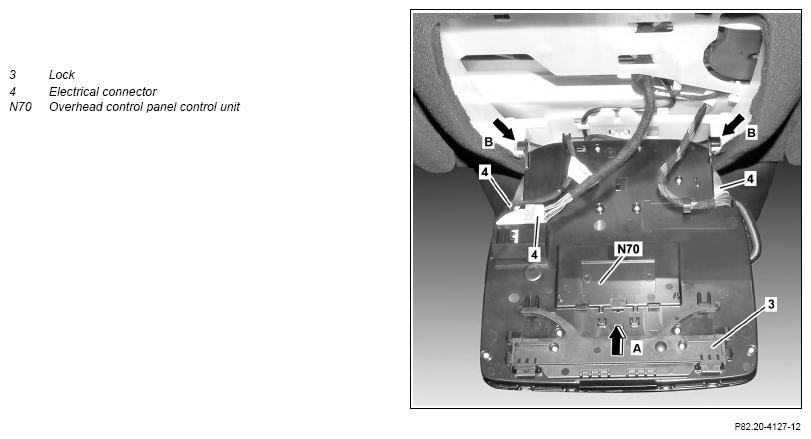

| 4 | Unlock lock (3) in direction of arrow (A) and fold overhead control panel control unit (N70) downwards. | ||
| 5 | Release and disconnect all electrical connectors (4) from overhead control panel control unit (N70). | ||
| 6 | Unhook overhead control panel control unit (N70) from brackets (arrows B) and remove. | ||
| 7 | Install in the reverse order. |
