Gap Dimensions On Hoods, Doors And Lids - Ar60.00-P-0700-01FR
Model 257
ENGINE HOOD TO FENDER GAP DIMENSIONS (DIMENSION "A")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1001-01IA | Engine hood to fender | Dimension "A" | mm | 3 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
ENGINE HOOD TO FENDER GAP DIMENSIONS (DIMENSION "B")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1002-01IA | Engine hood to bumper | Dimension "B" | mm | 3, 5 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
BUMPER TO FENDER GAP DIMENSIONS (DIMENSION "C")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1003-01IA | Bumper to fender | Dimension "C" | mm | 0 + 0, 5 |
| For picture, see | AR60.00-P-0700-01FR | |||
FENDER TO HEADLAMP GAP DIMENSIONS (DIMENSION "D")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1004-01IA | Fender to headlamp | Dimension "D" | mm | 2 (±1, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
BUMPER TO HEADLAMP AT BOTTOM GAP DIMENSIONS (DIMENSION "E1")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1005-01IA | Bumper to headlamp at bottom | Dimension "E1" | mm | 2 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
BUMPER TO HEADLAMP, SIDE GAP DIMENSIONS (DIMENSION "E2")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1006-01IA | Bumper to headlamp, side | Dimension "E2" | mm | 3 (±1, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
BUMPER TO HEADLAMP AT TOP GAP DIMENSIONS (Dimension "E3")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1007-01IA | Bumper to headlamp at top | Dimension "E3" | mm | 4 (±2, 0) |
| For picture, see | AR60.00-P-0700-01FR | |||
FRONT DOOR TO FENDER GAP DIMENSIONS (DIMENSION "F")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1008-01IA | Front door to fender | Dimension "F" | mm | 4 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
FRONT DOOR TO REAR DOOR GAP DIMENSIONS (DIMENSION "G")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1009-01IA | Front door to rear door | Dimension "G" | mm | 4 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
REAR DOOR TO SIDE SECTION, BOTTOM GAP DIMENSIONS (DIMENSION "H")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1010-01IA | Rear door to side section, bottom | Dimension "H" | mm | 3, 5 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
TAILLAMP TO BUMPER GAP DIMENSIONS (DIMENSION "I")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1011-01IA | Taillamp to bumper | Dimension "I" | mm | 1, 5 (±1) |
| For picture, see | AR60.00-P-0700-01FR | |||
TRUNK LID TO BUMPER GAP DIMENSIONS (DIMENSION "J2")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1012-01IA | Trunk lid to bumper | Dimension "J1" | mm | 5, 5 (±1) |
| Dimension "J2" | mm | 4 (±0, 5) | ||
| For picture, see | AR60.00-P-0700-01FR | |||
REAR FENDER TO TAILLAMP GAP DIMENSIONS (DIMENSION "K")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1013-01IA | Rear fender to taillamp | Dimension "K" | mm | 1 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
OUTSIDE OF TAILLAMP TO INSIDE OF TAILLAMP GAP DIMENSIONS (DIMENSION "L")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1014-01IA | Outside of taillamp to inside of taillamp | Dimension "L" | mm | 3, 5 (-0, 5/+1) |
| For picture, see | AR60.00-P-0700-01FR | |||
B-PILLAR COVER TO FRONT WINDOW GAP DIMENSIONS (DIMENSION "M")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1015-01IA | B-pillar cover to front window | Dimension "M" | mm | 10 (-0, 5/+1) |
| For picture, see | AR60.00-P-0700-01FR | |||
B-PILLAR COVER TO REAR WINDOW GAP DIMENSIONS (DIMENSION "N")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1016-01IA | B-pillar cover to rear window | Dimension "N" | mm | 10 (-0, 5/+1) |
| For picture, see | AR60.00-P-0700-01FR | |||
TRUNK LID TO FENDER AT REAR, TOP GAP DIMENSIONS (DIMENSION "O")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1017-01IA | Trunk lid to fender at rear, top | Dimension "O" | mm | 3 (-0, 5/+1) |
| For picture, see | AR60.00-P-0700-01FR | |||
FUEL FILLER FLAP GAP DIMENSIONS (DIMENSION "P")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1018-01IA | Fuel filler flap | Dimension "P" | mm | 2, 5 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
SIDE WALL TO BUMPER AT REAR GAP DIMENSIONS (DIMENSION "Q")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1019-01IA | Side wall to bumper at rear | Dimension "Q" | mm | 0, 5 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
RADIATOR TRIM/SOFT NOSE, ENGINE HOOD GAP DIMENSIONS (DIMENSION "B1")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1020-01IA | Protrusion of radiator trim/soft nose, engine hood | Dimension "B1" | mm | 1 (±0, 5) |
| For picture, see | AR60.00-P-0700-01FR | |||
TRUNK LID TO REAR WINDOW GAP DIMENSIONS (DIMENSION "R")
| Number | Designation | Model 257.3 | ||
|---|---|---|---|---|
| BE60.00-P-1021-01IA | Trunk lid to rear window | Dimension "R" | mm | 7, 5 (±2) |
| For picture, see | AR60.00-P-0700-01FR | |||

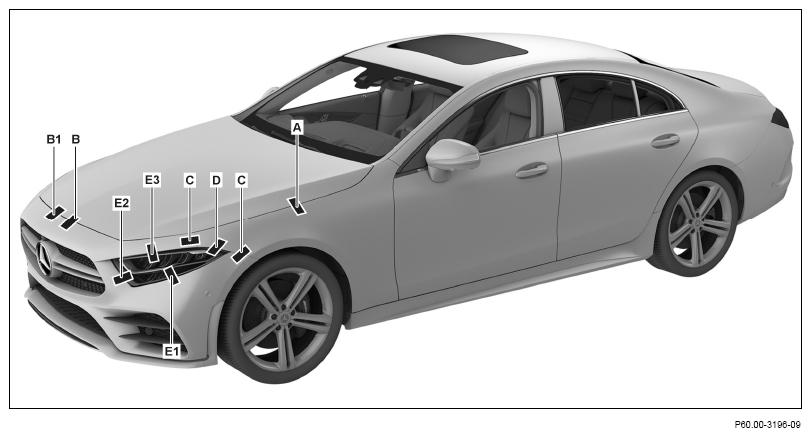

Front gap dimensions

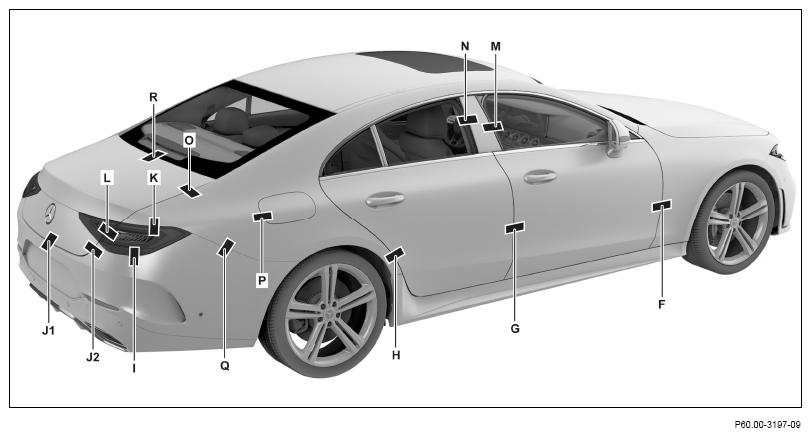

Rear and side gap dimensions
- Check gap dimensions with
feeler gauge as per sketches.
Gap dimensions must be adjusted as per the drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
