Remove/Install Housing Of High-Pressure Fuel Pump - AR07.02-P-1026MSA
Engine 256.9 in model 213, 238, 257, 290
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove | |||

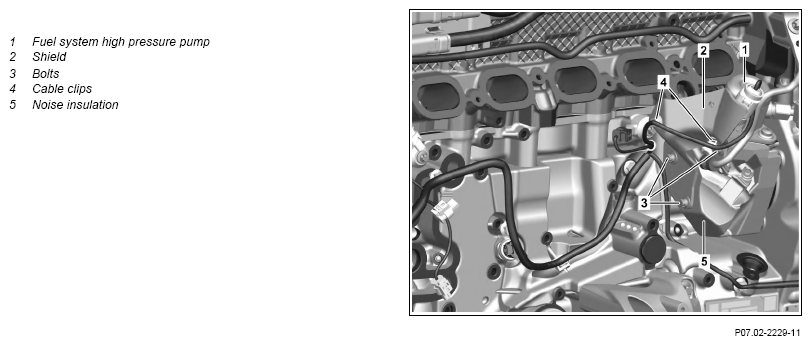

| 1 | Remove fuel high-pressure pump (1). | AR07.02-P-1020MSA | |
| 2 | Remove charge air line. | Engine 256.9 in model 213, 238, 257, 290 with code M016 (Uprated engine) | AR09.41-P-8952MSA |
| Engine 256.9 in model 257 except code M016 (Uprated engine) | AR09.41-P-8950MSA | ||
| 3 | Install retaining lock for crankshaft. | AR03.30-P-5001MSA | |
| 4 | Unclip cable clips (4). | ||
| 5 | Remove low-pressure line from shield (2). | AR07.03-P-1120MSA | |

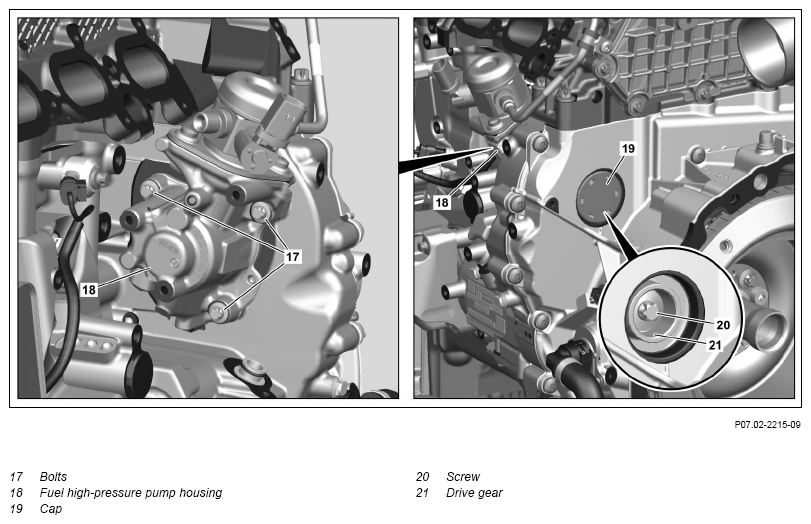

| 6 | Remove screws (3) and remove shield (2). | ||
| 7 | Remove noise insulation (5). | ||
| 8 | Pierce cap (19) at center and pry out. | Do not damage seat of cap (19) in timing case cover (25). Leaks can occur otherwise. |
|
| 9 | Remove screw (20). | ||

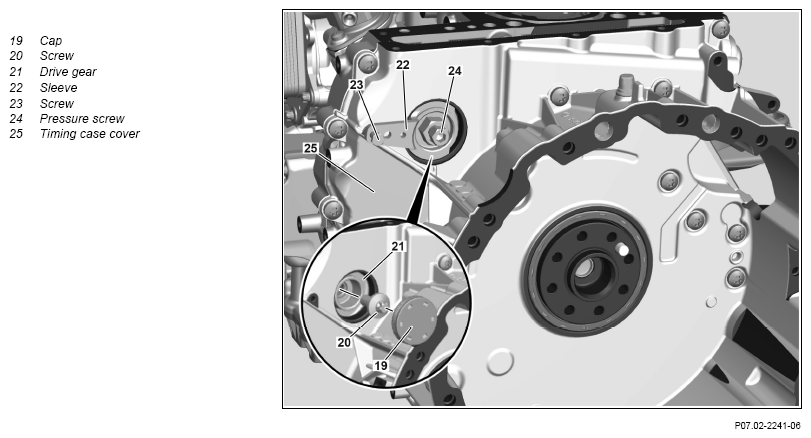

| 10 | Install sleeve (22) on drive gear (21) and tighten screw (23) at timing case cover (25). | Fig 1 | |
| 11 | Screw in thrust piece of sleeve (22) at drive gear (21) and slightly manually tighten pressure screw (24). | Fig 1 | |
| 12 | Remove screws (17) in reverse order of tightening procedure. | Tightening procedure for housing of fuel system high pressure pump | AR07.02-P-1020-02MRT |
| 13 | Screw in pressure screw (24) until drive gear (21) comes loose from shaft of fuel high-pressure pump (18). | Fig 1 | |
| 14 | Remove fuel high-pressure pump housing (18). | ||
| Clean | |||
| 15 | Clean sealing surfaces on fuel high-pressure pump housing (18) and crankcase. | Assembly cleaner | *BR00.45-Z-1028-04A |
| Install | |||
| 16 | Unscrew pressure screw (24). | ||
| 17 | Position fuel high-pressure pump housing (18) on crankcase and drive gear (21). | ||
| 18 | Tighten screws (17). | Tightening procedure for housing of fuel system high pressure pump |
AR07.02-P-1020-02MRT |
| *BA07.02-P-1002-01MRT | |||
| 19 | Remove screw (23), thrust piece and sleeve (22). | Fig 1 | |
| 20 | Tighten screw (20). | *BA07.02-P-1003-01MRT | |
| 21 | Install cap (19). | ||
| 22 | Install noise insulation (5). | ||
| 23 | Install shield (2) and tighten screws (3). | *BA07.02-P-1006-01MRT | |
| 24 | Install low-pressure line on shield (2). | AR07.03-P-1120MSA | |
| 25 | Clip cable clips (4) into shield (2). | ||
| 26 | Remove retaining lock for crankshaft. | AR03.30-P-5001MSA | |
| 27 | Set engine in direction of engine rotation to a crank angle of 120° after ignition TDC. | Turn engine in direction of engine rotation only. Engine damage can occur otherwise. |
|
| Fig 2 | |||
| 28 | Install fuel high-pressure pump (1). | AR07.02-P-1020MSA | |
| 29 | Install charge air line. | Engine 256.9 in model 213, 238, 257, 290 with code M016 (Uprated engine) | AR09.41-P-8952MSA |
| Engine 256.9 in model 257 except code M016 (Uprated engine) | AR09.41-P-8950MSA |
HIGH PRESSURE FUEL PUMP, HIGH PRESSURE FUEL PUMP HOUSING
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BA07.02-P-1002-01MRT | Screw/bolt, high pressure fuel pump housing to crankcase | Stage 1 | Nm | 2 |
| Stage 2 | Nm | 8 | ||
| Stage 3 | ∠° | 60 | ||
HIGH PRESSURE FUEL PUMP, HIGH PRESSURE FUEL PUMP HOUSING
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA07.02-P-1003-01MRT | Screw/bolt, sprocket to high pressure fuel pump | Nm | 60 |
HIGH PRESSURE FUEL PUMP, HIGH PRESSURE FUEL PUMP HOUSING
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA07.02-P-1006-01MRT | Screw, shield to fuel high-pressure pump housing/support plate | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
