Tightening Procedure For Housing Of Fuel System High Pressure Pump - AR07.02-P-1020-02MRT
Engine 256.9
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A |
HIGH PRESSURE FUEL PUMP, HIGH PRESSURE FUEL PUMP HOUSING
| Number | Designation | Engine 256.9 | ||
|---|---|---|---|---|
| BA07.02-P-1002-01MRT | Screw/bolt, high pressure fuel pump housing to crankcase | Stage 1 | Nm | 2 |
| Stage 2 | Nm | 8 | ||
| Stage 3 | 60 | |||
Do not use a pneumatic tool to remove/screw in screws (1 - 3). Housing of fuel high-pressure pump or crankcase will otherwise be damaged.
Comply with listed tightening sequence.
Leaks and damage to housing of fuel high-pressure pump will otherwise occur.

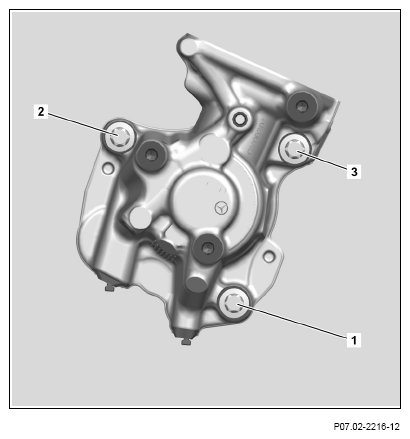

Release screws (1 - 3) in reverse order to tightening sequence.
- Tighten screws (1 - 3) in numerical order to stage 1.
- Tighten screws (1 - 3) in numerical order to stage 2.
- Tighten screws (1 - 3) in numerical order to stage 3.
