Adjust Camber At Rear Axle - AR40.20-P-0202LWI

Model 205.386/387/486/487

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension	Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves.	AS00.00-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on AIRmatic	Model 205.386/387/486/487 with code 489 (AIRMATIC Dual Control/semi-active air suspension)	AH32.22-P-1000-02LW
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Measure
1	Perform initial measurement		AR40.20-P-0200LW
	Remove
2	Raise vehicle	The axles must be relieved of load.	AR00.60-P-1002LWG
3	Release pressure from air springs using vehicle diagnosis system	Model 205.386/387/486/487 with code 489 (AIRMATIC Dual Control/semi-active air suspension)
			AD00.00-P-2000-04B

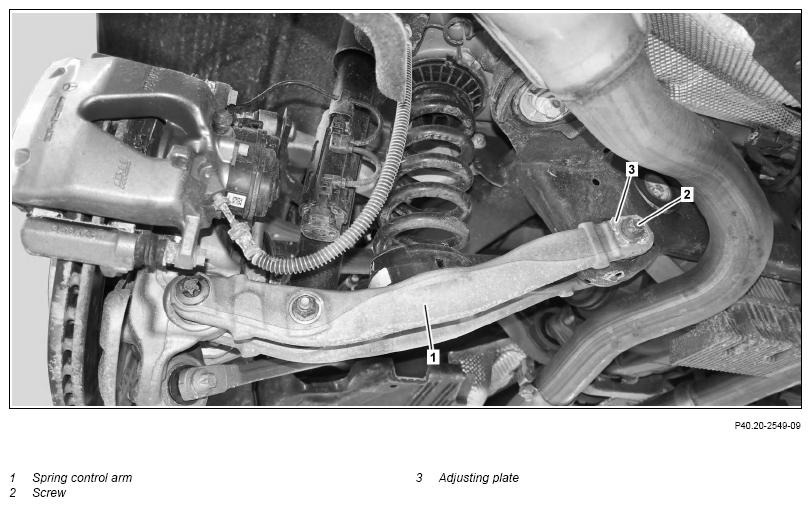

4	Remove cover of spring link (1)
5	Clamp rear axle spring until pressure is no longer exerted on the spring link (1)	Model 205.386/387/486/487 except code 489 (AIRMATIC Dual Control/semi-active air suspension)
		AR32.20-P-0202-06LWI
		It is not necessary to remove the rear axle spring.
		Clamping plate	Fig 1
		Tensioning device	Fig 3
6	Remove screw (2) and adjusting plates (3)	Model 205.386/387/486/487 with code 489 (AIRMATIC Dual Control/semi-active air suspension) Do not compress or extend the air spring. Otherwise the air spring will be damaged. Have an assistant secure the rear axle spring with a spring compressor or air spring to prevent it from falling. The screwdriver bit is to be used when a screw (2) with a multi-point socket is installed.
		Screwdriver bit	Fig 2
	Install
7	Insert new screw (2) and screw on new nut loosely
8.1	Unclamp rear axle spring	Model 205.386/387/486/487 except code 489 (AIRMATIC Dual Control/semi-active air suspension) Make sure that the rear axle spring is seated correctly in the spring seats.
		Clamping plate	Fig 1
		Tensioning device	Fig 3
8.2	Build up pressure in air spring using vehicle diagnosis system	Model 205.386/387/486/487 with code 489 (AIRMATIC Dual Control/semi-active air suspension)
			AD00.00-P-2000-04B
	Adjust
9	Select new adjusting plates (3) on the basis of the removed adjusting plates (3) and the camber deviation determined in the initial measurement	Check suspension data, assign actual value to table Model 205.386/387 with code 835 (South Korea version)	AR40.20-P-0001-01LWX
		Check suspension data, assign actual value to table Model 205.386/387/486/487 except code 835 (South Korea version) The new adjusting plates (3) to be installed must be determined on the basis of the measured camber deviation and the adjusting plates (3) already installed using the suspension data table. All the adjusting plates (3) of one spring link (1) must have the same number.	AR40.20-P-0001-01LWW
10	Install newly determined adjusting plates (3) and tighten nut of screw (2)	Tighten the nut of the screw (2) in ready-to-drive condition in order to rule out stresses in the spring link (1). Make sure that the adjusting plates (3) are seated correctly and in the correct installation position. The screwdriver bit is to be used when a screw (2) with a multi-point socket is installed. Only tighten the nut of the screw (2) to the 1st stage of the specified tightening torque.
		Bolt, spring control arm to rear axle carrier	*BA35.20-P-1001-01I
		Screwdriver bit	Fig 2
	Measure
11	Perform final measurement		AR40.20-P-0200LW
	Install
12	Tighten nut of screw (2)	Only tighten the nut of the screw (2) to the 2nd stage of the specified tightening torque. The screwdriver bit is to be used when a screw (2) with a multi-point socket is installed.
		Bolt, spring control arm to rear axle carrier	*BA35.20-P-1001-01I
		Screwdriver bit	Fig 2
13	Install cover of spring link (1)
14	Lower vehicle

SPRING CONTROL ARM

Number	Designation			Model 205
BA35.20-P-1001-01I	Bolt, spring control arm to rear axle carrier	Stage 1	Nm	80
		Stage 2	∠°	90

Fig 1: Identifying Clamping Plate (230 589 11 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Tensioning Device (203 589 01 31 00)

Courtesy of MERCEDES-BENZ USA
