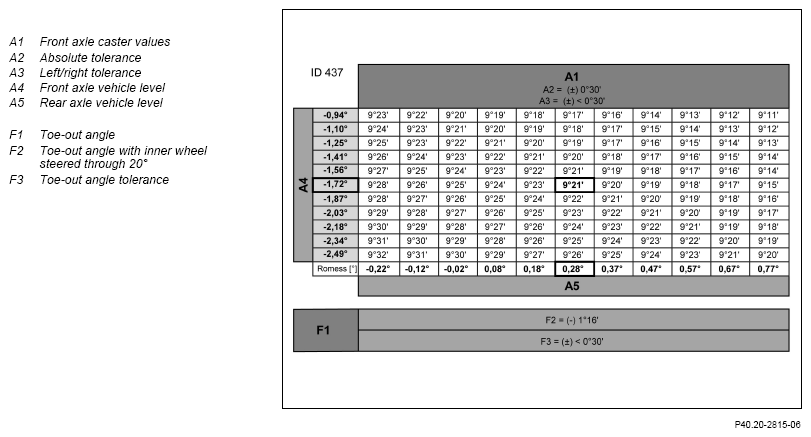

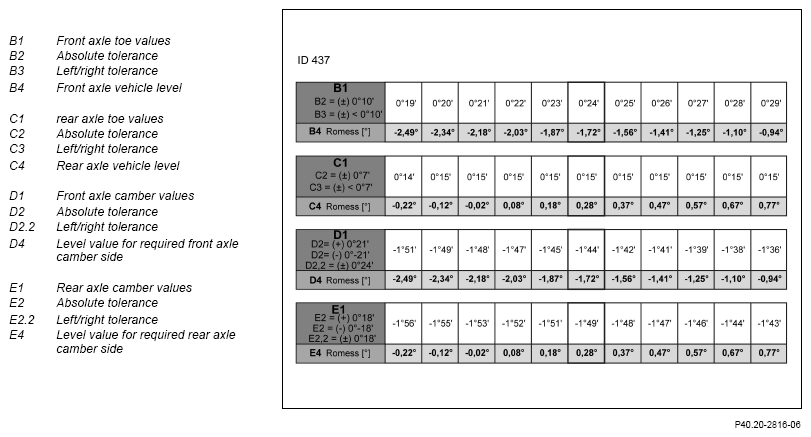

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LWX
Model 205.386/387 with code 835 (South Korea version)
According to the camber measurement on the rear axle, the deviation of the actual value from the specified value must be ascertained and the camber deviation (G1) calculated. Camber deviation (G1) = actual value of rear axle camber - specified value of rear axle camber
Example:
Camber deviation in decimal degrees (G2) = -0.40
Number of adjusting plates already installed (G4) = 6

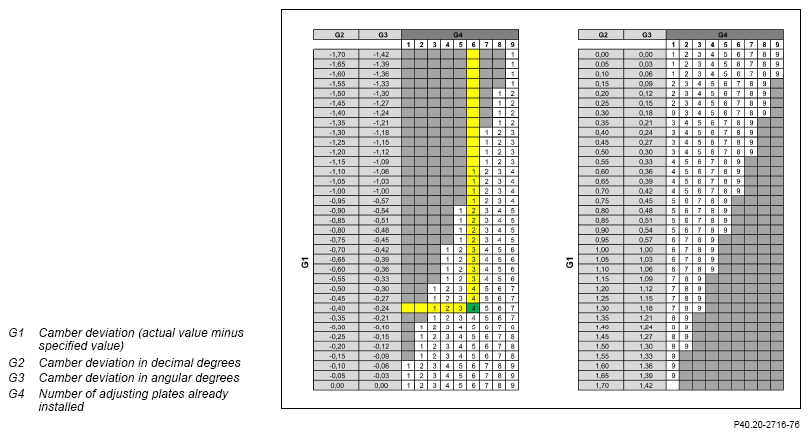

Number of adjusting plates to be installed = 4 The intersection of the camber deviation in decimal degrees (G2) and the number of adjusting plates (G4) already installed indicates the number of adjusting plates to be used.
Assignment of adjusting plates for rear axle camber adjustment
