Remove/Install Spring Control Arm - AR35.20-P-0119LWI

Model 205.386/387/486/487

MODIFICATION NOTES

04.05.2017	Removal of rear axle brake caliper incorporated	Operation step 2, 3
20.12.2016	Special tool added.	Operation steps 5, 6

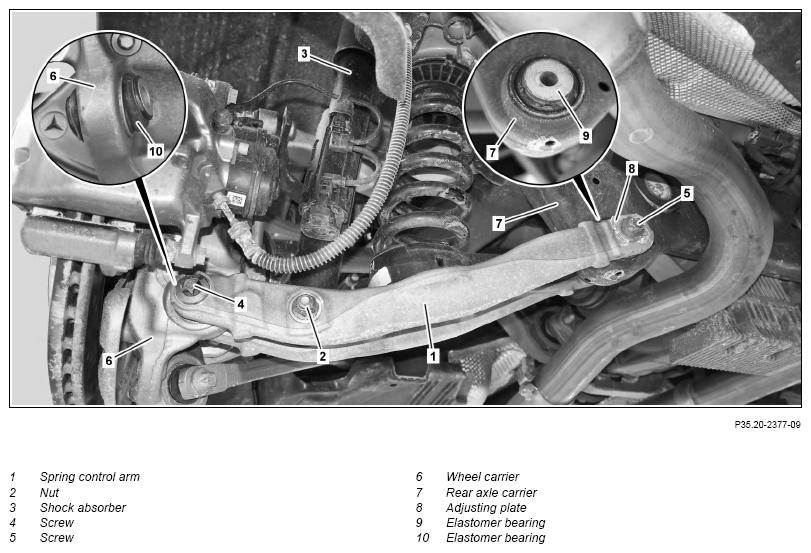

Fig 1: Spring Control Arm Component Location - Model 205.386/387/486/487

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove left or right rear axle spring	Model 205.386/387/486/487 except code 489 (AIRMATIC Dual Control/semi-active air suspension)	AR32.20-P-0230LW
2	Remove left or right rear axle brake caliper and hang to one side with brake hose connected		AR42.10-P-0080LW
3	Remove lower guide pin of rear axle brake caliper from brake caliper support
4	Unscrew nut (2) and pull bolt of shock absorber (3) out of spring control arm (1)	Self-locking nut, shock absorber to spring control arm	*BA32.25-P-1001-03P
5	Unscrew nut and pull bolt (5) out of spring control arm (1)	: Replace adjusting plate (8). Make sure that the adjusting plate (8) is seated correctly and in the correct installation position. The screwdriver bit is to be used when a bolt (5) with multi-point socket profile is installed.
		Bolt, spring control arm to rear axle carrier	*BA35.20-P-1001-01I
		Screwdriver bit	Fig 2
6	Unscrew nut and pull bolt (4) out of spring control arm (1)	The screwdriver bit is to be used when a bolt (4) with multi-point socket profile is installed.
		Bolt, spring control arm to wheel carrier	*BA35.20-P-1002-01I
		Screwdriver bit	Fig 2
7	Remove spring control arm (1) from wheel carrier (6) and from rear axle carrier (7)	Model 205.386/387/486/487 with code 489 (AIRMATIC Dual Control/semi-active air suspension) Installation:  Observe installation position of lower centering mark for air spring in spring link (1).
	Check
8	Check that elastomer bearing (9) in rear axle carrier (7) is in good condition and undamaged	If there are problems ↓ Replace elastomer bearing (9).	AR35.20-P-3405LWI
9	Check that elastomer bearing (10) in rear axle carrier (6) is in good condition and undamaged	If there are problems ↓ Replace elastomer bearing (10).	AR35.20-P-3401LWI
10	Install in the reverse order
11	Perform wheel alignment check		AR40.20-P-0200LW

REAR AXLE SHOCK ABSORBER

Number	Designation				Model 205
BA32.25-P-1001-03P	Self-locking nut, shock absorber to spring control arm	Air suspension	Stage 1	Nm	100
			Stage 2	∠°	90
		Steel suspension	Stage 1	Nm	45
			Stage 2	∠°	90

SPRING CONTROL ARM

Number	Designation			Model 205
BA35.20-P-1001-01I	Bolt, spring control arm to rear axle carrier	Stage 1	Nm	80
		Stage 2	∠°	90

SPRING CONTROL ARM

Number	Designation			Model 205
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 1	Nm	80
		Stage 2	∠°	90

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
