Remove/Install Elastomer Bearing Of Spring Control Arm On Wheel Carrier - AR35.20-P-3401LWI
Model 205.386/387/486/487
MODIFICATION NOTES
| 15.08.2016 | Greasing of spindle of extraction and insertion tool with rolling-element bearing grease added. | Operation steps 3 and 6 |
Remove
Fig 1: Elastomer Bearing Of Spring Control Arm On Wheel Carrier Component Location - Model 205.386/387/486/487
Install
| Remove | |||
| 1 | Remove spring control arm | AR35.20-P-0119LWI | |
| 2 | Detach brake caliper support with brake caliper and hang up to one side with lines still connected | Otherwise they may be damaged. |
AR42.10-P-0080LW |
| 3 | Grease spindle of extraction and insertion tool (3) with rolling-element bearing grease | ||
| High temperature antifriction bearing grease (NLGI grade 2) | BB00.40-P-0265-01A | ||
| Fig 2 | |||

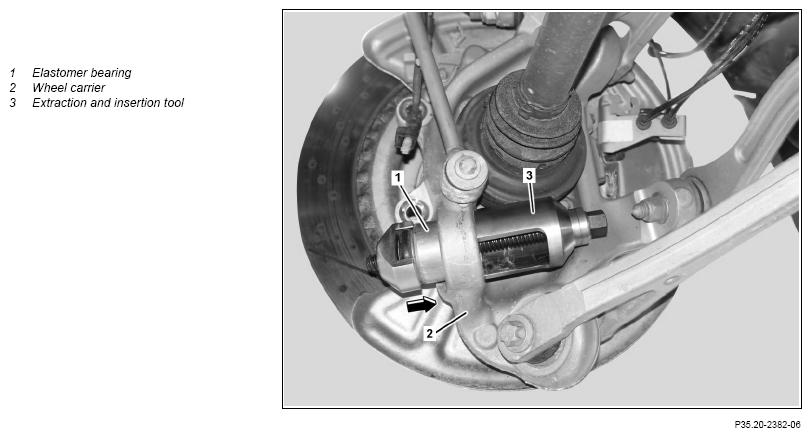

| 4 | Position extraction and insertion tool (3) at wheel carrier (2) and elastomer bearing (1) as shown | ||
| Fig 2 | |||
| 5 | Pull elastomer bearing (1) out of wheel carrier (2) in direction of arrow and remove | ||
| Install | |||
| 6 | Again grease spindle of extraction and insertion tool (3) with rolling-element bearing grease | ||
| High temperature antifriction bearing grease (NLGI grade 2) | BB00.40-P-0265-01A | ||
| Fig 2 | |||

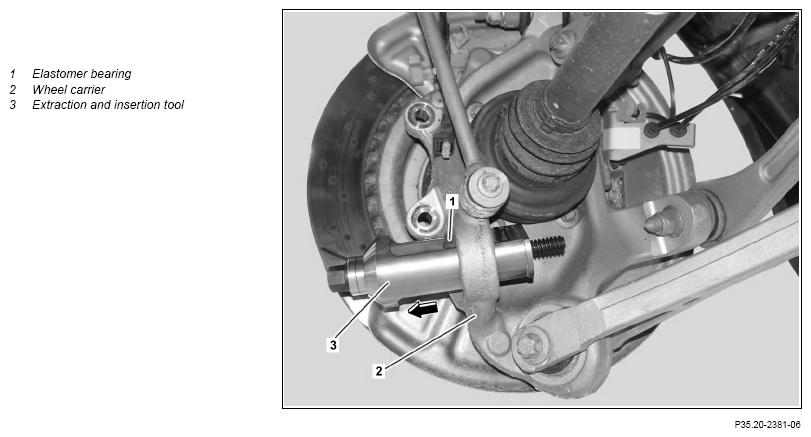

| 7 | Position extraction and insertion tool (3) with new elastomer bearing (1) at wheel carrier (2) as shown | Fig 2 | |
| 8 | Pull new elastomer bearing (1) into wheel carrier (2) until extraction and insertion tool (3) reaches its end stop | ||
| 9 | Detach extraction and insertion tool (3) | ||
| 10 | Attach brake caliper support together with brake caliper | AR42.10-P-0080LW | |
| 11 | Install spring control arm | AR35.20-P-0119LWI |
