Remove/Install Front Seat Cushion Ventilation Motors - AR91.30-P-1950LW
Model 205
with code 401 (Climatised front seats)
Model 253, 293
with code 401 (Climatised front seats)
| Remove/install | |||
| 1 | Remove outer trim from seat frame. | Model 205.0/1/2, 253, 293 with code 401 (Climatised front seats) with code P65 (Seat comfort package) with code U22 (Lumbar support adjustment) Model 205.0/1/2, 253 with code 401 (Climatised front seats) with code 555 (AMG Performance seats) with code U22 (Lumbar support adjustment) |
AR91.10-P-1201LWA |
| Model 205.0/1/2, 253 with code 401 (Climatised front seats) with code U22 (Lumbar support adjustment) except code 409 (Left and right front multicontour seat) except code 555 (AMG Performance seats) except code P65 (Seat comfort package) Model 293 with code 401 (Climatised front seats) with code U22 (Lumbar support adjustment) except code 409 (Left and right front multicontour seat) except code P65 (Seat comfort package) |
AR91.10-P-1201LW | ||
| Model 205.3/4 with code 401 (Climatised front seats) with code 555 (AMG Performance seats) with code U22 (Lumbar support adjustment) Model 205.3/4 with code 401 (Climatised front seats) with code P65 (Seat comfort package) with code U22 (Lumbar support adjustment) |
AR91.10-P-1201CLW | ||
| Model 205.3/4 with code 401 (Climatised front seats) with code U22 (Lumbar support adjustment) except code 409 (Left and right front multicontour seat) except code 555 (AMG Performance seats) except code P65 (Seat comfort package) |
AR91.10-P-1201CLA | ||
| 2 | Remove inner trim from seat frame. | Model 205.0/1/2 with code 401 (Climatised front seats) Model 253, 293 with code 401 (Climatised front seats) |
AR91.10-P-1202LW |
| Model 205.3/4 with code 401 (Climatised front seats) |
AR91.10-P-1202CLW | ||

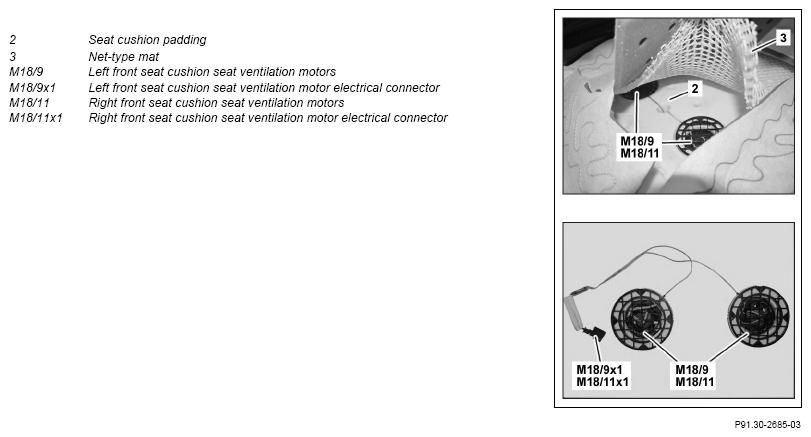

| 3 | Release cover of seat cushion padding (2) until the front seat cushion seat ventilation motors (M18/9, M18/11) are accessible. | Model 205, 253, 293 with code 221 (Electrically adjustable left driver seat) with code 401 (Climatised front seats) Model 205, 253, 293 with code 222 (Electrically adjustable right driver seat) with code 401 (Climatised front seats) Model 205, 253, 293 with code 241 (Memory switch for electrically adjustable front passenger seat, left) with code 401 (Climatised front seats) Model 205, 253, 293 with code 242 (Front passenger seat, electrically adjustable with memory function) with code 401 (Climatised front seats) Model 205, 253, 293 with code 275 (Driver's seat, electrically adjustable with memory function) with code 401 (Climatised front seats) Model 205, 253, 293 with code 401 (Climatised front seats) with code P65 (Seat comfort package) Model 205, 253 with code 401 (Climatised front seats) with code 555 (AMG Performance seats) |
AR91.18-P-1801LW |
| Model 205, 253 with code 401 (Climatised front seats) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 241 (Memory switch for electrically adjustable front passenger seat, left) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Driver's seat, electrically adjustable with memory function) except code 555 (AMG Performance seats) except code P65 (Seat comfort package) Model 293 with code 401 (Climatised front seats) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right driver seat) except code 241 (Memory switch for electrically adjustable front passenger seat, left) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Driver's seat, electrically adjustable with memory function) except code P65 (Seat comfort package) |
AR91.18-P-1801LWA | ||
| 4 | Disconnect front seat cushion seat ventilation motors electrical connector (M18/9x1, M18/11x1). | ||
| 5 | Lift up net-type mat (3) and remove front seat cushion seat ventilation motors (M18/9, M18/11). | ||
| 6 | Install in the reverse order |
