Remove/Install Outer Trim On Seat Frame - AR91.10-P-1201LW

Model 205.0/1/2, 253

with code U22 (Lumbar support adjustment)

except code 409 (Left and right front multicontour seat)

except code 555 (AMG-Performance Seat)

except code P65 (Ergonomics package)

Model 213

with code U22 (Lumbar support adjustment)

except code 432 (Dynamic seats left and right)

except code 555 (AMG-Performance Seat)

except code P65 (Ergonomics package)

Model 293

with code U22 (Lumbar support adjustment)

except code 409 (Left and right front multicontour seat)

except code P65 (Ergonomics package)

Shown on model 205.0 with code 275 (Electrically adjustable driver's seat with memory function) and with code U22 (4-way lumbar support) except code 409 (Front left/right multicontour seat)

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0 with code 275 (Electrically adjustable driver's seat with memory function) and with code U22 (4-way lumbar support) except code 409 (Front left/right multicontour seat)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove front seat.	If the trim (3) is removed.	AR91.10-P-1000LW
2	Move front seat to foremost position and all the way up.	If the trim parts (1, 2, 4) are removed.
3	Switch off ignition and store transmitter key outside of transmitter range (at least 2 m).	If the front seat was not removed.
4	Cover door sill.	If the front seat was not removed.
5	Unclip trim (4) at top and remove downwards.	If installed.

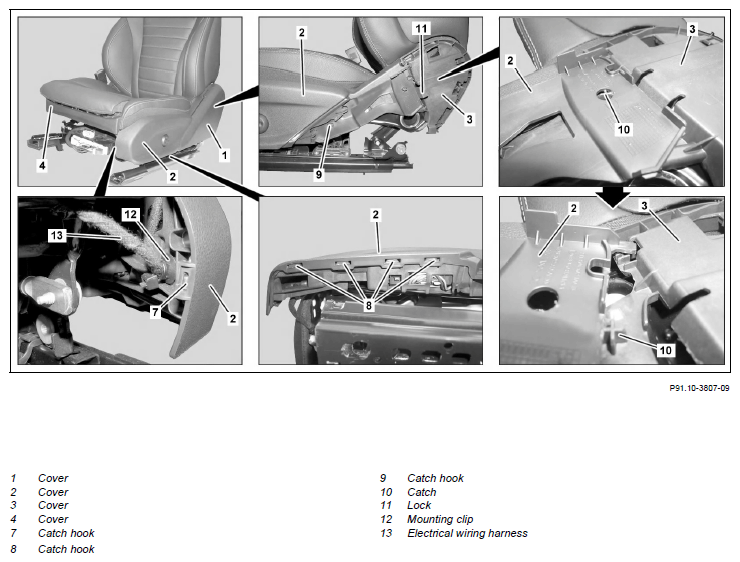

		Long wedge	Fig 2
6	Unclip retaining clip (12).	Dismantling tool	Fig 1
7	Press trim (2) inwards and unhook from catch hook (7).
8	Push trim (2) downwards and unhook from catch hook (8).
9	Unhook catch hook (9) from trim (3).
10	Push lock (11) to side and pull trim (2) outwards over the catch (10).

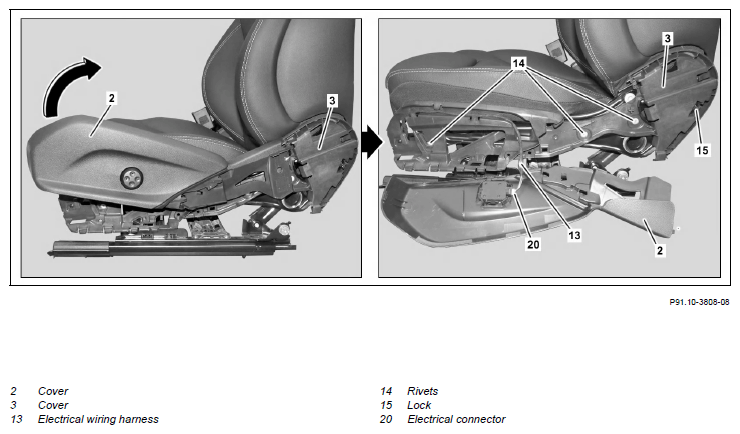

11	Unhook trim (2) at front from trim (3), swivel upwards in direction of arrow and place to one side.
12	Disconnect electrical connector (20).
13	Remove lumbar support adjustment switch.	When replacing cover (2).	AR91.25-P-1436LWE
14	Remove electrical wiring harness (13) from working area.	Note installation position of electrical wiring harness (13).
15	Drill out rivets (14).	Replace rivets (14).
16	Release lock (15) and remove cover (3).
17	Install in the reverse order
