Set Basic Position Of Camshafts - AR05.20-P-6020MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

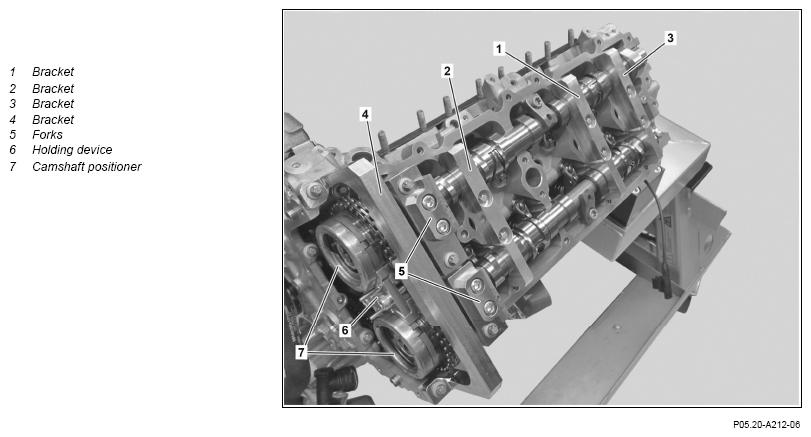

Shown on left cylinder head

G14814115Courtesy of MERCEDES-BENZ USA
G14814116Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
Notice Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVING Remove
1 Remove left cylinder head cover. Engine 178 in model 190 (except 190.381) AR01.20-P-5013MNB
    Engine 178.9 in model 190.381 AR01.20-P-5013MNJ
    Engine 176 in model 463 up to model year 2019
Engine 177 in model 205 IMPORTANTWIS Service Media
AR01.20-P-5013MNA
2 Remove right cylinder head cover. Engine 178 in model 190 (except 190.381) AR01.20-P-5012MNB
    Engine 178.9 in model 190.381 AR01.20-P-5012MNJ
    Engine 176 in model 463 up to model year 2019
Engine 177 in model 205
AR01.20-P-5012MNA
3 Check size on camshaft and select correct special tool.   AR05.20-P-6027-01SZ
    NOTES Without this check, the incorrect special tool may be used.
An incorrect repair right up to engine damage will otherwise occur.

    IMPORTANT There are different sizes for camshafts.
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
4 Install brackets (1, 2, 3).   AR05.20-P-6020-03MNE
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
5 Turn engine at center bolt of the crankshaft through two revolutions, place engine on cylinder 1 at 400 KW after ignition TDC of cylinder 1 and mark with a drift.   AR01.10-P-1000-01SZ
    NOTES Only rotate engine in direction of engine rotation at center bolt of crankshaft using indicated box wrench.
Engine damage right up to engine failure can otherwise occur.

    SPECIAL TOOL Measuring tool Fig 6
    SPECIAL TOOL Ring wrench Fig 4
    SPECIAL TOOL Drift Fig 2
6 Remove secondary chain drive chain tensioners on left and right. NOTES Do not turn the engine while the chain tensioner is removed.
Otherwise damage will occur.
IMPORTANT Remove secondary chain drive chain tensioners on left and right without turning the crankshaft.
AR05.10-P-7800MNA
7 Insert holding device (6) between the camshaft positioners (7) and tighten.   AR05.20-P-6027-01SZ
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
8 Release camshaft positioners (7) from camshafts and remove with holding device (6)   AR05.20-P-7204MNA
  Adjust

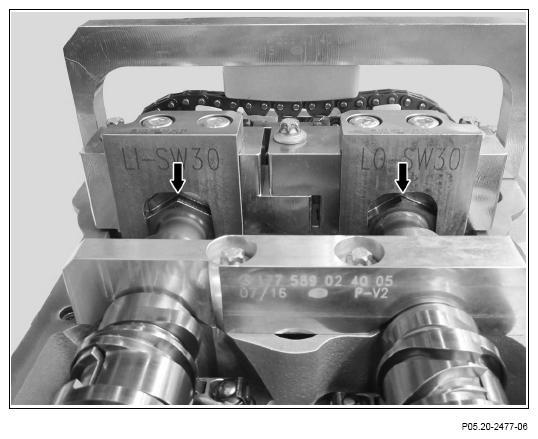

9 Turn camshafts in the basic position. IMPORTANT The positions (arrows) of the camshaft must point upwards. AR05.20-P-6027-01SZ
    SPECIAL TOOL Camshafts with 0 4 mm Bore Socket wrench bit Fig 5
    SPECIAL TOOL Camshafts with 0 4 mm Bore Socket Fig 7
10 Install forks (5).   AR05.20-P-6027-01SZ
    NOTES Install brackets with forks (5) without major force application.
Otherwise damage or incorrect timing will occur.

    NOTES Brackets with forks (5) are not suited for bringing camshafts into position.
Otherwise damage or incorrect timing will occur.

    SPECIAL TOOL Ring wrench Fig 4
    SPECIAL TOOL Holding device Fig 1
    SPECIAL TOOL Camshafts with 0 4 mm Bore Socket wrench bit Fig 5
    SPECIAL TOOL Camshafts with 0 5 mm Bore Socket Fig 7
INSTALLING Install
11 Position camshaft positioners (7) on camshafts, tighten control valves slightly by hand and loosen by 1/4 revolution.   AR05.20-P-7204MNA
12 Install bracket (4).   AR05.20-P-6027-01SZ
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
13 Check that tensioning rails of secondary chain drive are seated centrally and position if necessary.
14 Install left and right secondary chain drive chain tensioners.   AR05.10-P-7800MNA
    IMPORTANT Install secondary chain drive chain tensioners on left and right without turning the crankshaft.
15 Insert holding device (6) between the camshaft positioners (7) and tighten.   AR05.20-P-6027-01SZ
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
16 Tighten control valves of camshaft positioners (7).   AR05.20-P-7204MNA
17 Remove holding device (6)./   AR05.20-P-6027-01SZ
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
18 Remove forks (5)./   AR05.20-P-6027-01SZ
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
19 Remove drift from belt pulley.   AR01.10-P-1000-01SZ
    SPECIAL TOOL Drift Fig 2
20 Turn engine at center bolt of the crankshaft through two revolutions, place engine on cylinder 1 at 40° KW after ignition TDC of cylinder 1 and mark with a drift.   AR01.10-P-1000-01SZ
    NOTES Only rotate engine in direction of engine rotation at center bolt of crankshaft using indicated box wrench.
Engine damage right up to engine failure can otherwise occur.

    SPECIAL TOOL Measuring tool Fig 6
    SPECIAL TOOL Ring wrench Fig 4
    SPECIAL TOOL Drift Fig 2
21 Install forks (5).   AR05.20-P-6027-01SZ
    NOTES Install forks (5) without major force application.
Otherwise the timing will be off.

    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device
If forks (5) cannot be installed without force application:
↓
Set basic position of camshafts again.
Fig 1
22 Remove forks (5).   AR05.20-P-6027-01SZ
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
23 Remove drift from belt pulley.   AR01.10-P-1000-01SZ
    SPECIAL TOOL Drift Fig 2
24 Remove holder (4).   AR05.20-P-6027-01SZ
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
25 Remove brackets (1, 2, 3).   AR05.20-P-6020-03MNE
    SPECIAL TOOL Holding device Fig 3
    SPECIAL TOOL Holding device Fig 1
26 Install right cylinder head cover. Engine 178 in model 190 (except 190.381) AR01.20-P-5012MNB
    Engine 178.9 in model 190.381 AR01.20-P-5012MNJ
    Engine 176 in model 463 up to model year 2019
Engine 177 in model 205
AR01.20-P-5012MNA
27 Install left cylinder head cover. Engine 178 in model 190 (except 190.381) AR01.20-P-5013MNB
    Engine 178.9 in model 190.381 AR01.20-P-5013MNJ
    Engine 176 in model 463 up to model year 2019
Engine 177 in model 205
AR01.20-P-5013MNA
28 Connect diagnostic system and perform initialization of timings.
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 176 in model 463 up to model year 2019 AD00.00-P-2000-04A
REFER TO SELF-DIAGNOSTIC SYSTEMS   Engine 177 in model 205
Engine 178 in model 190
IMPORTANT For this purpose, start teach-in processes after engine replacement in diagnostic system under tab "Adaptations" in engine control unit and follow the instructions.
AD00.00-P-2000-04B
Fig 1: Identifying Holding Device (177 589 01 40 00)
G11138908Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Drift (177 589 00 15 00)
G11138915Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Holding Device (177 589 02 40 00)
G12816612Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Ring Wrench (177 589 00 03 00)
G11971950Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Socket Wrench Bit (177 589 01 09 00)
G12816605Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Measuring Tool (177 589 01 21 00)
G11138930Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Socket (270 589 01 07 00)
G13655663Courtesy of MERCEDES-BENZ USA
