Remove/Install Camshaft Positioner - AR05.20-P-7204MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

Modification notes

26.07.2022

Document adapted to changed repair method.

Shown on left cylinder head

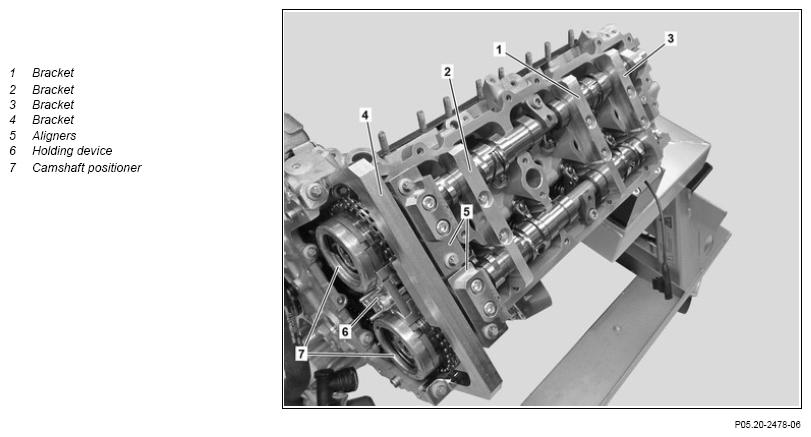

Fig 1: Camshaft Positioner Component Location - Model 205 W/ Engine 177 (Shown On Left Cylinder Head)

Courtesy of MERCEDES-BENZ USA

Shown on left cylinder head

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Remove left cylinder head cover.	Engine 178 in model 190 (except 190.381)	AR01.20-P-5013MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR01.20-P-5013MNA
		Engine 178.9 in model 190.381	AR01.20-P-5013MNJ
2	Remove right cylinder head cover.	Engine 178 in model 190 (except 190.381)	AR01.20-P-5012MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR01.20-P-5012MNA
		Engine 178.9 in model 190.381	AR01.20-P-5012MNJ
3	Check size on camshaft and select correct special tool.	Without this check, the incorrect special tool may be used. An incorrect repair right up to engine damage will otherwise occur.	AR05.20-P-6027-01SZ
		There are different sizes for camshafts.
		Holding device	Fig 5
		Holding device	Fig 2
4	Install brackets (1, 2, 3).		AR05.20-P-6020-03MNE
		Holding device	Fig 5
		Holding device	Fig 2
5	Turn engine at center bolt of the crankshaft through two revolutions, place engine on cylinder 1 at 40° KW after ignition TDC of cylinder 1 and mark with a drift.	Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur.	AR01.10-P-1000-01SZ
		Measuring tool	Fig 7
		Ring wrench	Fig 6
		Drift	Fig 3

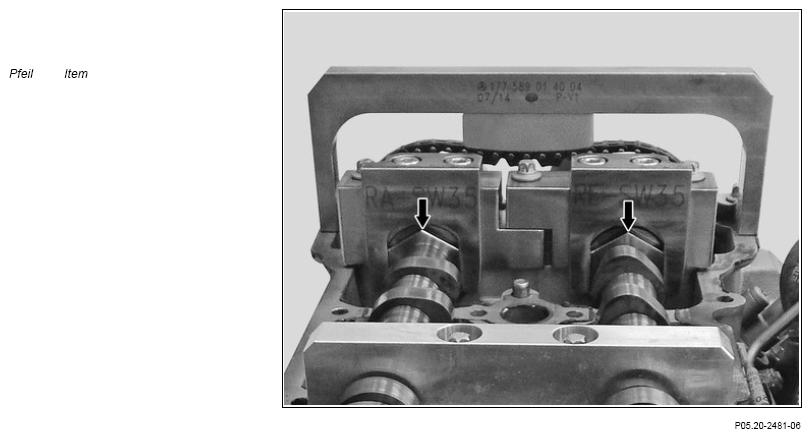

6	Install aligners (5).	Install bracket (4) with aligners (5) without applying force. Bracket (4) with aligners (5) is not suitable for moving camshafts into position. Otherwise, damage and incorrect timing occur The positions (arrows) of the camshafts must point upwards before assembly of the aligners (5).	AR05.20-P-6027-01SZ
		Holding device	Fig 2
		Holding device	Fig 5
7	Remove drift from the marking bore of the belt pulley.		AR01.10-P-1000-01SZ
		Drift	Fig 3
8	Position holding device (6) between both camshaft positioners (7) and install.		AR05.20-P-6027-01SZ
		Holding device	Fig 2
		Holding device	Fig 5
9	Release control valves of the camshaft positioners (7).	Holding device	Fig 2
		Holding device	Fig 5
		Socket wrench bit	Fig 4
10	Remove secondary chain drive chain tensioner on the left and right.		AR05.10-P-7800MNA
		Do not turn the engine while the chain tensioner is removed.
		Otherwise damage can occur.
11	Remove holding device (6).		AR05.20-P-6027-01SZ
		Holding device	Fig 2
		Holding device	Fig 5
12	Remove control valves of the camshaft positioners (7).	Socket wrench bit	Fig 4
13	Raise secondary chain drive timing chain and remove camshaft positioners (7) from y camshafts.	The camshaft positioners (7) may only be reused if they had no noticeable problems in prior operation.
	Install
14	Raise secondary chain drive timing chain and attach camshaft positioners (7) to the camshafts.
15	Wet threads and bolt head contact surface of control valves with engine oil.
	Specified engine oils for Cars, Vans (service) - Overview	Replace control valves.	BB00.40-P-0223-02A
16	Screw in control valves of camshaft positioners (7), slightly tighten by hand and release by 1/4 of a turn.	Socket wrench bit	Fig 4
		Holding device	Fig 2
		Holding device	Fig 5
17	Install bracket (4) on cylinder head.		AR05.20-P-6027-01SZ
		Turning engine without bracket (4) leads to a skipping of the timing chain and thus to engine damage.
		Holding device	Fig 2
		Holding device	Fig 5
18	Position the tensioning rail centrally on the guide pins.
19	Install left and right secondary chain drive chain tensioners.		AR05.10-P-7800MNA
		Replace sealing rings of left and right secondary chain drive chain tensioners.
20	Install holding device (6) between the camshaft positioners (7) and tighten.		AR05.20-P-6027-01SZ
		Holding device	Fig 5
		Holding device	Fig 2
21	Tighten control valves of the camshaft positioners (7).	Tighten control valves with torque evenly and without interruption.
		Control valve of pulse wheel/camshaft positioner to camshaft	*BA05.20-P-1003-02C
		Holding device	Fig 5
		Socket wrench bit	Fig 4
		Holding device	Fig 2
22	Remove holding device (6) between camshaft positioners (7).		AR05.20-P-6027-01SZ
		Holding device	Fig 5
		Holding device	Fig 2
23	Remove aligners (5).		AR05.20-P-6027-01SZ
		Holding device	Fig 2
		Holding device	Fig 5
24	Turn engine at center bolt of the crankshaft through two revolutions, place engine on cylinder 1 at 40° KW after ignition TDC of cylinder 1 and mark with a drift.		AR01.10-P-1000-01SZ
		Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench.
		Otherwise, damage to the engine or even failure of the engine may occur.
		Measuring tool	Fig 7
		Ring wrench	Fig 6
		Drift	Fig 3
25	Install aligners (5).	AR05.20-P-6027-01SZ
		Install bracket (4) with aligners (5) without applying force. Bracket (4) with aligners (5) is not suitable for moving camshafts into position. Otherwise, damage and incorrect timing occur
		Holding device	Fig 2
		Holding device If aligners (5) cannot be installed without force application ↓ Set basic position of camshafts again.	Fig 5
			AR05.20-P-6020MNA
26	Remove aligners (5).		AR05.20-P-6027-01SZ
		Holding device	Fig 2
		Holding device	Fig 5
27	Remove drift from belt pulley.		AR01.10-P-1000-01SZ
		Drift	Fig 3
28	Remove brackets (1, 2, 3).		AR05.20-P-6020-03MNE
		Holding device	Fig 2
		Holding device	Fig 5
29	Remove holder (4).		AR05.20-P-6027-01SZ
		Holding device	Fig 5
		Holding device	Fig 2
30	Install right cylinder head cover.	Engine 178 in model 190 (except 190.381)	AR01.20-P-5012MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR01.20-P-5012MNA
		Engine 178.9 in model 190.381	AR01.20-P-5012MNJ
31	Install left cylinder head cover.	Engine 178 in model 190 (except 190.381)	AR01.20-P-5013MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR01.20-P-5013MNA
		Engine 178.9 in model 190.381	AR01.20-P-5013MNJ
32	Connect diagnostic system and perform initialization of timings.
		Engine 176 in model 463 up to model year 2019	AD00.00-P-2000-04A
		Engine 177 in model 205 Engine 178 in model 190 For this purpose, start teach-in processes after engine replacement in diagnostic system under tab "Adaptations" in engine control unit and follow the instructions.	AD00.00-P-2000-04B
